‑ Use the levers and/or buttons corresponding to the ON‑OFF coils
accessible from the bottom of the distributor protection so as to
enable the required movement, following the instructions on the
sticker positioned near the controls, and at the same time operate
the hand pump to obtain the movement.
The sequence of movements is the following:
‑ retract extension arm
‑ fold jib arm
‑ fold first‑second arm
‑ fold third arm.
‑ At the end of the emergency operation close the protection, remove the key and put it
back in its original position.
I T IS PROHIBITED TO RELEASE THE AERIAL PART PROPORTIONAL VALVE FROM THE REST POSITION
WITH THE MOTOR RUNNING
.
T
HIS OPERATION WOULD BE VERY RISKY FOR THE SAFETY OF THE OPERATOR ON THE PLATFORM
.
X17JPR0020413
BOOM LIFT MODELS X17JPLUS
JLG
97

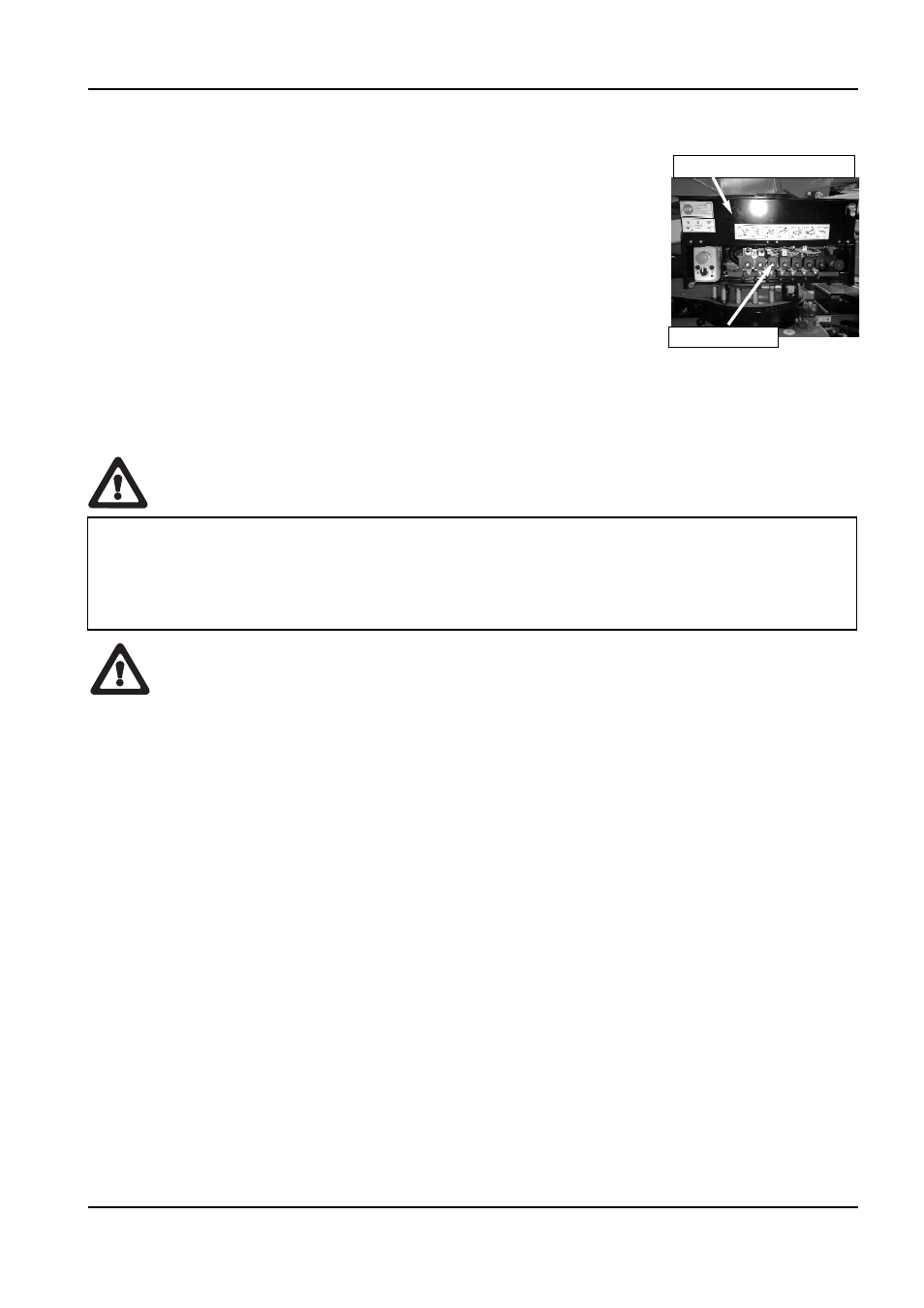

D ISTRIBUTOR PROTECTION
O N ‑ OFF LEVERS
PERICOLO
I
F THIS DEVICE HAS BEEN USED TO MOVE THE MACHINE
,
BEFORE USING THE MACHINE AGAIN TO
WORK AT A HEIGHT IT IS COMPULSORY TO SET IT IN THE TRANSPORT CONFIGURATION ( MACHINE
CLOSED AND ALIGNED
),
TO RAISE THE STABILISERS AND LOWER THEM AGAIN
.
O NLY THEN IT WILL BE POSSIBLE TO WORK WITH THE MACHINE AT A HEIGHT CONTROLLING IT FROM
THE BASKET
.
PERICOLO
DANGER
DANGER
