Poison Spyder YJ FULL CAGE KIT - Manual (Page 4)

INSTALLATION INSTRUC
TIO
NS
Poison Spyder Customs • YJ FULL CAGE KIT INSTALL Page 4
©2010 POISON SPYDER CUSTOMS, INC. • 951-849-5911 • WWW.POISONSPYDER.COM
holding them in place correctly located, tack
the C-Hoop and C-Pillars into place.

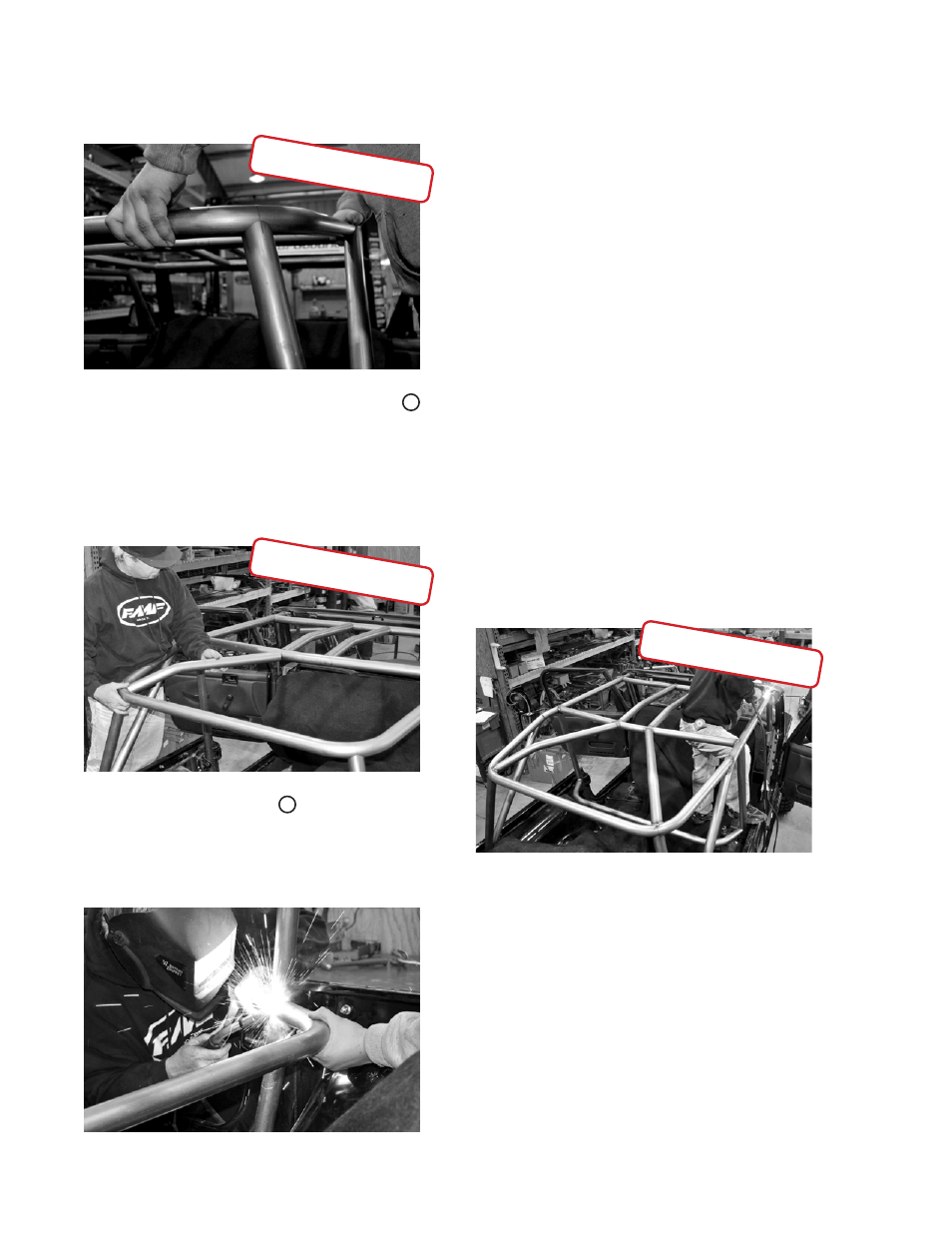

FIGURE 11
12. Install the Rearward Stringers L&R 15
between the B-Crossbar and the inside
bends of the C-Hoop. Use the laser-etched
assembly marks to properly locate and align
the tube junctions. While holding them in
place correctly located, tack the Rearward
Stringers into place.
FIGURE 12
14. Install the Seatbelt Bar 10 to the rearward
side of the B-Pillars. Use the laser-etched
assembly marks as guides to properly locate
the tube junctions. Tack the Seatbelt Bar into
place.
FIGURE 14
15. Install any optional equipment at this
time, such as Entry Grab Handles, Seat Belt
Bung Kit, etc. These items would have been
supplied with separate install instructions.
16. Fully test-fit all equipment that is located
within, near or around the cage or any
portion of the cage. This includes soft tops,
doors, seats, etc. Test each component for
both fit and operation. It is EXTREMELY
IMPORTANT that you verify proper fitment
of all components at this time. If any tube
placement needs to be adjusted, it is a
simple matter of grinding the small tack
welds to make any adjustments. Making
these adjustments will be impossible once
the cage is fully welded.
17. Finish-weld each joint in the cage. Before
you begin, you may wish to place welding
blankets or some other suitable protection
for your Jeep’s interior. You may not be able
to easily reach every area you need to weld
while the cage is still installed in the Jeep,
but we recommend doing as much as you
can while the Cage is still in the Jeep, to
discourage deformation during welding.
FIGURE 15
18. Remove the cage from the vehicle to finish
any welds that couldn’t be reached before.
19. Paint or powder-coat your cage to protect
it from rust. If painting it yourself, use a good
quality self-etching primer on the bare steel
of your cage prior to painting in the color of
your choice.
20. Re-install the cage into the Jeep and
properly tighten all fasteners.
Congratulations, you have completed the
installation of your Poison Spyder Full Cage Kit!
UPDATED
PHOTOS
COMING SOON
!
UPDATED
PHOTOS
COMING SOON
!
UPDATED
PHOTOS
COMING SOON
!
