64
g Wireless router
sections table of contents 1 2 3 4 5 7 8 9 10 6
Using the Web-based advanced User interface
3. Place your secondary Access Point within range of your router and
near the area where you want to extend the range or add the network
segment� Typically, indoor range should be between 100 and 200
feet�
4. Connect power to your Access Point� Make sure the Access Point is
on and proceed to the next step�
5. From a computer already connected to your router, access the
Advanced setup Utility by opening your browser� in the address bar,
type in “192�168�2�1”� Do not type in “www” or “http://” before the
number� Note: if you have changed your router’s iP address, use
that iP address�

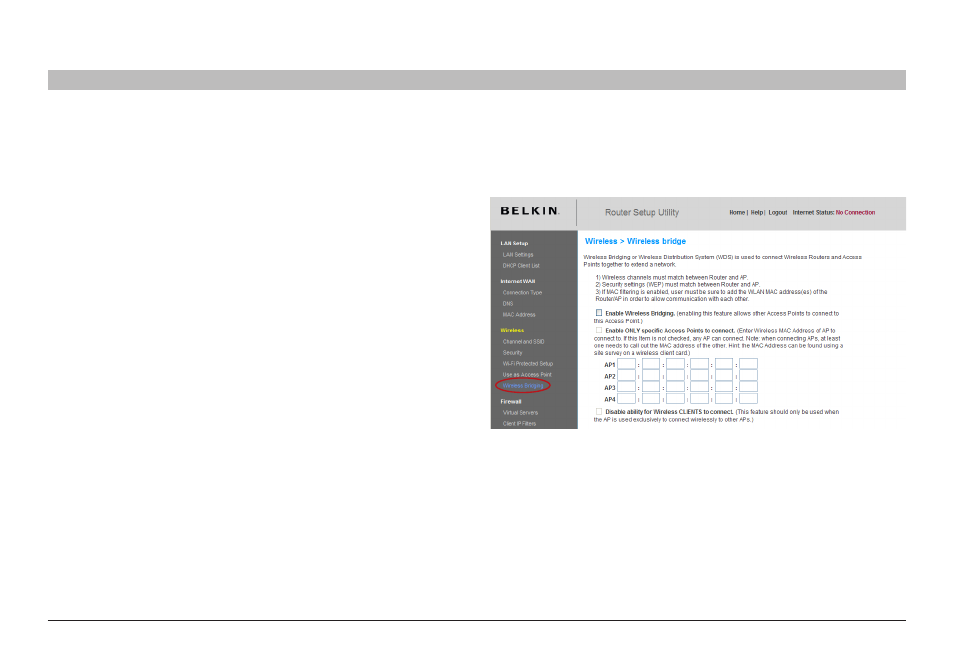

6. You will see the router’s user interface in the browser window� Click
“Wireless Bridge” on the left-hand side of the screen� You will see
the following screen�
