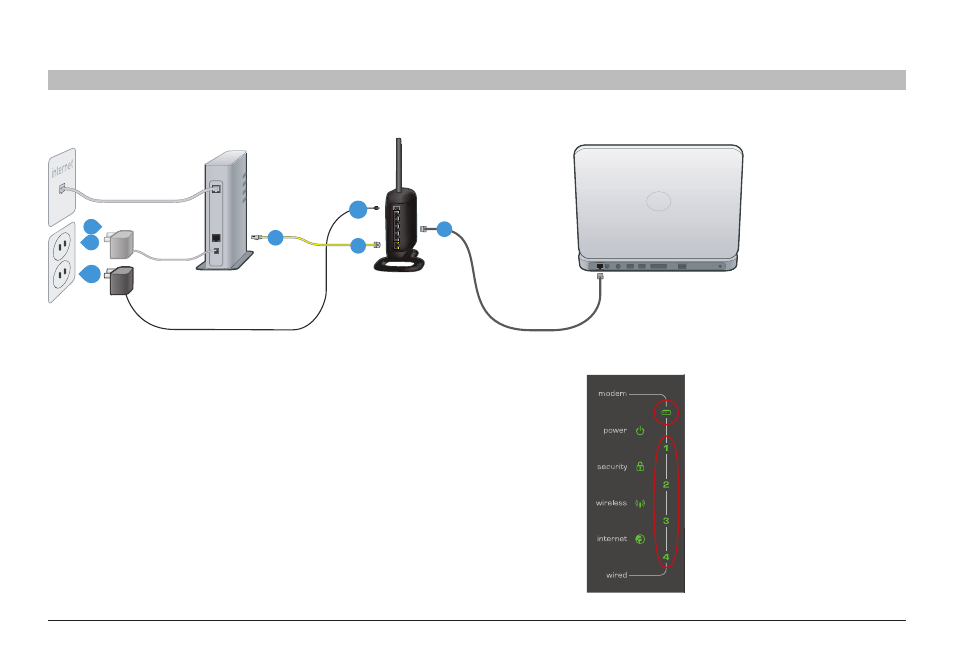

altErnatE sEtup MEthoD

Note: Your router may have ports in different locations than depicted in the illustration above�

1.6 Before plugging the power

cord into the router, plug the

cord into the wall, then plug

the cord into the router’s

power jack�

LAN

WAN

1.4

1.6b

1.5

1.1

1.6 a

1.2

1.3

1.8 Verify that your computer

is connected properly to

the router by checking

the lights labeled “1–4”�

The light that corresponds

to the numbered port

connected to your computer

should be ON if your

computer is connected

properly� if it is not, recheck

your connections�

1.7 Verify that your modem is

connected to the router

by checking the lights on

the front of the router� The

green light labeled “Modem”

should be ON if your modem

is connected correctly to the

router� if it is not, recheck

your connections�
