Chapter 2 Preparation of Embroidery Machine
BES-962BC • BES-1262BC 52
6. Check that the clearance between the Y-axis cover
!1
and the mounted holder base frames
LN
q
and RN
e
is even when viewed from the right and left sides.
[Adjustment] Loosen the right and left bolts of the F table guide UN
!2
and move it in the direction of arrow for
adjustment.
7. Tighten each bolt securely after adjustment is finished.
8. If removing a holder base frame for frame replacement, etc., remove screw
!3
.
Keep the frame connecting plate attached to the X-feed frame.

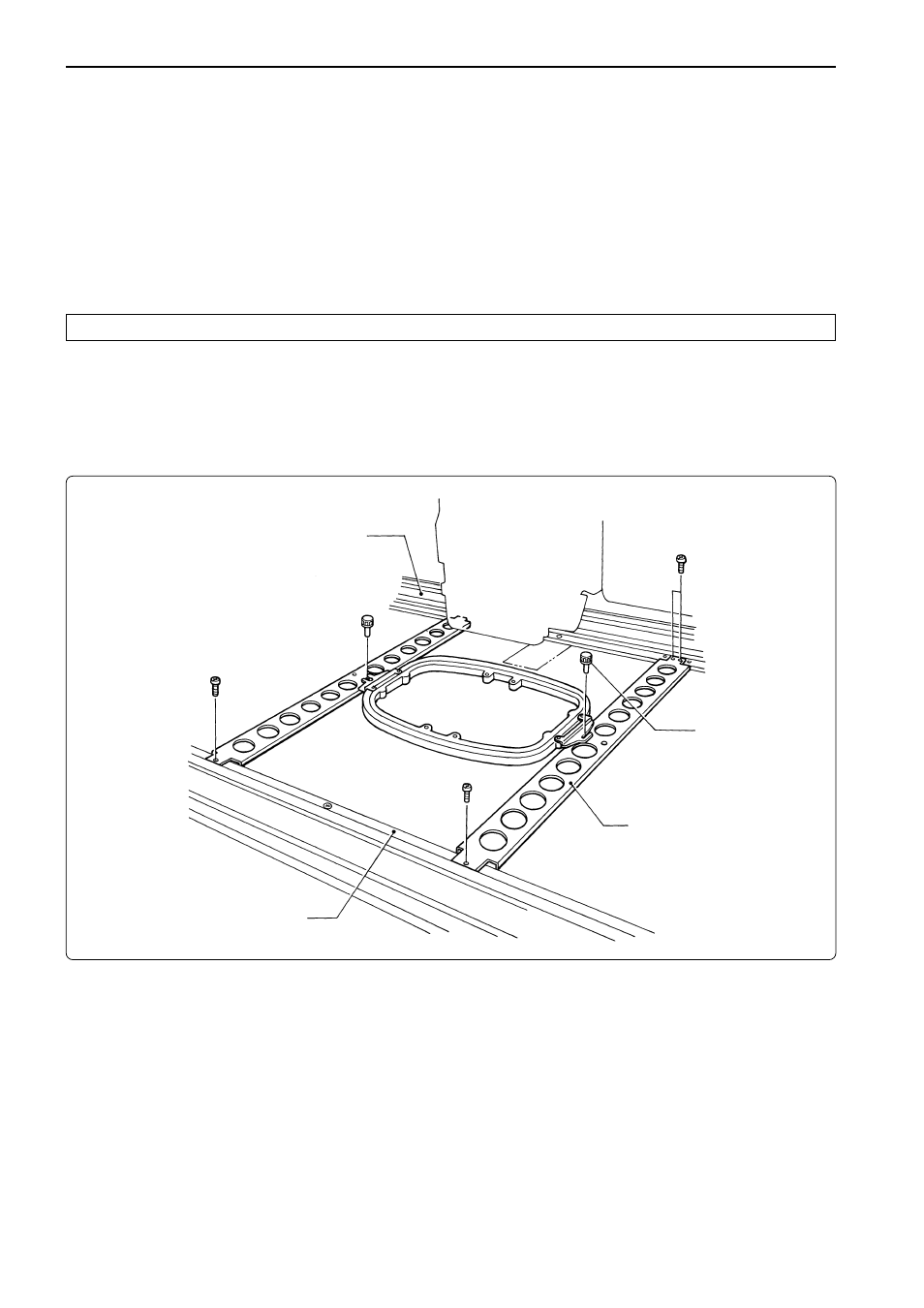

Attaching the holder base
1. Mount the holder base mounting frame
e
on the X-axis feed frame
q
and holder base frame
C
w
, using three clamp screws.
2. When the mounting pitch of the holder base is 370 mm, mount the holder base horizontally to
the holder base mounting frames
e
using the thumb bolts
r
.
w
e
r
q
