Chapter 2 Preparation of Embroidery Machine
BES-962BC • BES-1262BC 31
r
q
t
o
w
i
u
o
q
e
y

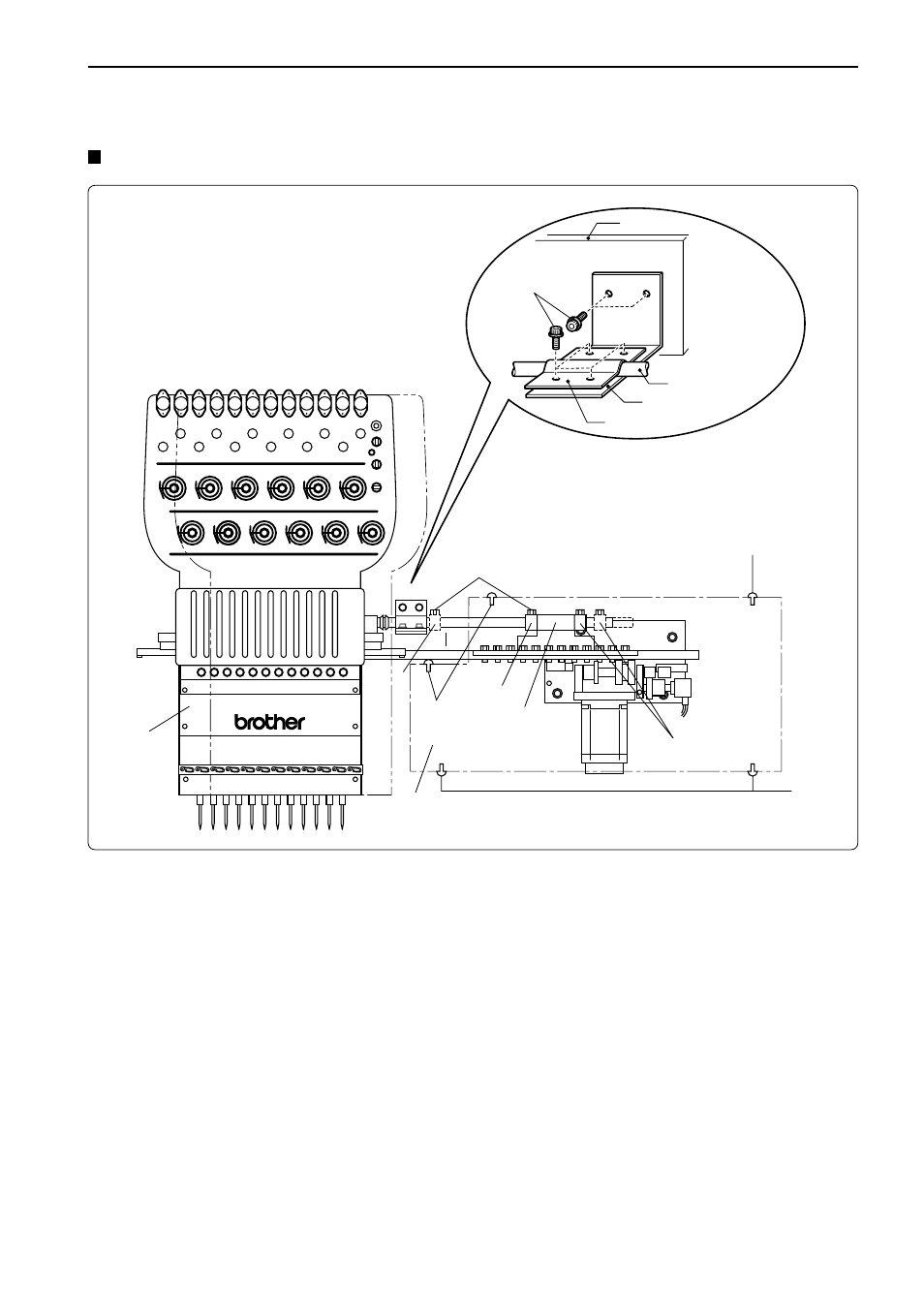

BES-1262BC
1. Remove 3 pieces of fixing screw
q
, loosen 2 pieces of screw
w
and remove the color change
cover
e
.
2. Remove the bolts
r
and detach the fixing bracket for transportation from the bridge and the
connecting shaft.
3. Loosen the bolts
t
and set screw
!0
, and move the needle bar case
y
left side.
4. Press the change bracket collar
i
against the change case base
u
, while pressing the left
side change bracket collar
o
against the change case base
u
, and tighten the bolts
t
and
set screw
!0
. Check that needle bar No.1 and 12 are inserted into the needle plate holes
smoothly.
Notes) • Check that ther is no play for the connecting shaft in the horizontal direction.
• Never loose the bolt of the change bracket coller i . If this bolt is loosened, the change bracket coller
i will be dislocated and the position of the needle bar case y will need to be adjusted.
5. Attach the color change cover
e
by 3 pieces of fixing screw
q
and 2 pieces of fixing screw
w
.
Bridge
Connecting shaft
Fixing bracket
Fixing bracket B
