Brother BES-962BC User Manual
Page 227
Chapter 9 Maintenance
BES-962BC • BES-1262BC
225
BES-962BC

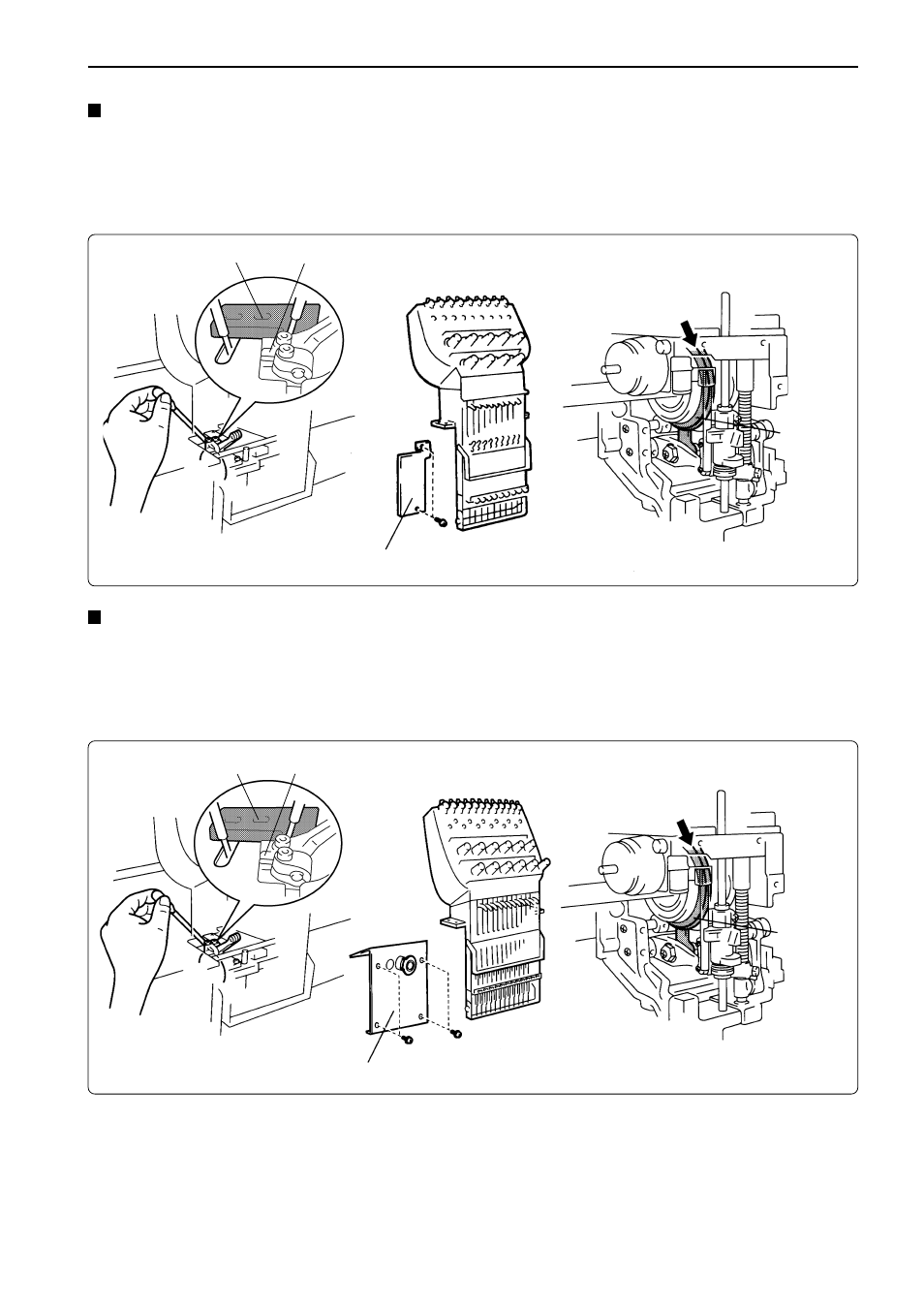

Lubricate the following part indicated by the arrow ("clearance" between the connecting rod
and the needle thread take-up bearing) once a week.
(Note) • In lubrication, select needle bar 9 and remove arm cover L to check the lubrication area. Be sure to wipe
off excessive oil spilt at the lower part of the arm.
Connecting
rod
Arm cover L
Connecting rod
BES-1262BC
Lubricate the following part indicated by the arrow ("clearance" between the connecting rod
and the needle thread take-up bearing) once a week.
(Note) • In lubrication, select needle bar 12 and remove the head cover to check the lubrication area. Be sure to
wipe off excessive oil spilt at the lower part of the arm.
Connecting
rod
Head cover
Thread take-up bush
Connecting rod
Thread take-up bush
