CS8427
DS477F5 9
SWITCHING CHARACTERISTICS - CONTROL PORT - SPI MODE
Inputs: Logic 0 = 0 V, Logic 1 = VL+; C
L
= 20 pF.
Notes: 14. If Fso or Fsi is lower than 46.875 kHz, the maximum CCLK frequency should be less than 128 Fso and
less than 128 Fsi. This is dictated by the timing requirements necessary to access the Channel Status
and User Bit buffer memory. Access to the control register file can be carried out at the full 6 MHz rate.
The minimum allowable input sample rate is 8 kHz, so choosing CCLK to be less than or equal to
1.024 MHz should be safe for all possible conditions.
15. Data must be held for sufficient time to bridge the transition time of CCLK.
16. For f
sck
< 1 MHz.
Parameter Symbol Min Typ Max Units
CCLK Clock Frequency (Note 14) f
sck
0 - 6.0 MHz
CS High Time Between Transmissions t
csh
1.0 - - μs
CS Falling to CCLK Edge t
css
20 - - ns
CCLK Low Time t
scl
66 - - ns
CCLK High Time t
sch
66 - - ns
CDIN to CCLK Rising Setup Time t
dsu
40 - - ns
CCLK Rising to DATA Hold Time (Note 15) t
dh
15 - - ns
CCLK Falling to CDOUT Stable t
pd
- - 50 ns
Rise Time of CDOUT t
r1
- - 25 ns
Fall Time of CDOUT t
f1
- - 25 ns
Rise Time of CCLK and CDIN (Note 16) t
r2
- - 100 ns
Fall Time of CCLK and CDIN (Note 16) t
f2
- - 100 ns
t r2 t f2
t dsu
t dh
t sch t scl
CS
CCLK
CDIN
t css
t pd
CDOUT
t csh

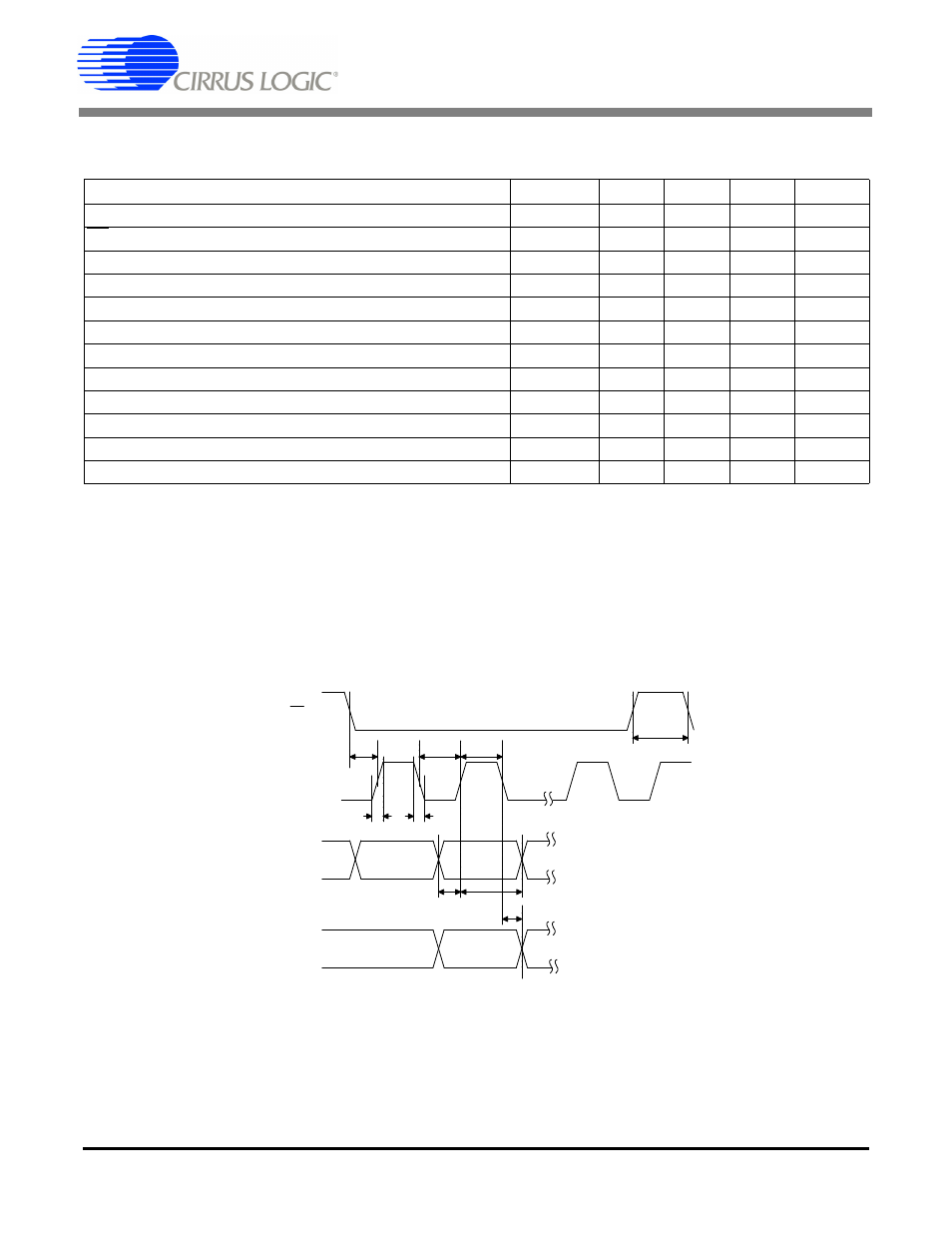

Figure 3. SPI Mode timing
