Two Channel Energy Measurement IC
Features
•
Superior Analog Performance with Ultra-low Noise Level &
High SNR
•
Energy Measurement Accuracy of 0.1% over a 4000:1
Dynamic Range
•
Two Independent 24-bit, 4
th
-order, Delta-Sigma
Modulators for Voltage and Current Measurements
•
Configurable Digital Output for Energy Pulses, Interrupt,
zero-crossing, and Energy Direction
•
Supports Shunt Resistor, CT, and Rogowski Coil Current
Sensors
•
On-chip Measurements/Calculations:
- Active, Reactive, and Apparent Power
- RMS Voltage and Current
- Power Factor and Line Frequency
- Instantaneous Voltage, Current, and Power
•
Overcurrent, Voltage Sag, and Voltage Swell Detection
•
Ultra-fast On-chip Digital Calibration
•
Configurable No-load Threshold for Anti-creep
•
Internal Register Protection via Checksum and Write
Protection
•
UART Serial Interface
•
On-chip Temperature Sensor
•
On-chip Voltage Reference (25ppm/°C Typ.)
•
Single 3.3 V Power Supply
•
Ultra-fine Phase Compensation
•
Low Power Consumption: <13 mW
•
Power Supply Configurations:
- GNDA = 0 V, VDDA: +3.3 V
•
Low-cost 16-pin SOIC Package
Description
The CS5490 is a high-accuracy, two-channel, energy measure-
ment analog front end.
The CS5490 incorporates independent 4
th
order Delta-Sigma an-
alog-to-digital converters for both channels, reference circuitry,
and the proven EXL signal processing core to provide active, re-
active, and apparent energy measurement. In addition, RMS and
power factor calculations are available. Calculations are output
via a configurable energy pulse, or direct UART serial access to
on-chip registers. Instantaneous current, voltage, and power
measurements are also available over the serial port. The
two-wire UART minimizes the cost of isolation where required.
A configurable digital output provides energy pulses, zero-cross-
ing, energy direction, or interrupt functions. Interrupts can be
generated for a variety of conditions including voltage sag or
swell, overcurrent, and more. On-chip register integrity is assured
via checksum and write protection. The CS5490 is designed to in-
terface to a variety of voltage and current sensors, including shunt
resistors, current transformers, and Rogowski coils.
On-chip functionality makes digital calibration simple and ultra
fast to minimize the time required at the end of the customer pro-
duction line. Performance across temperature is ensured with an
on-chip voltage reference with low drift. A single 3.3V power sup-
ply is required, and power consumption is low at <13mW. To
minimize space requirements, the CS5490 is offered in a low-cost
16-pin SOIC package.
ORDERING INFORMATION
See
VDDA
GNDA
RESET
Calculation
Temperature
Sensor
VREF+
Voltage
Reference
VDDD
VREF-
System
Clock

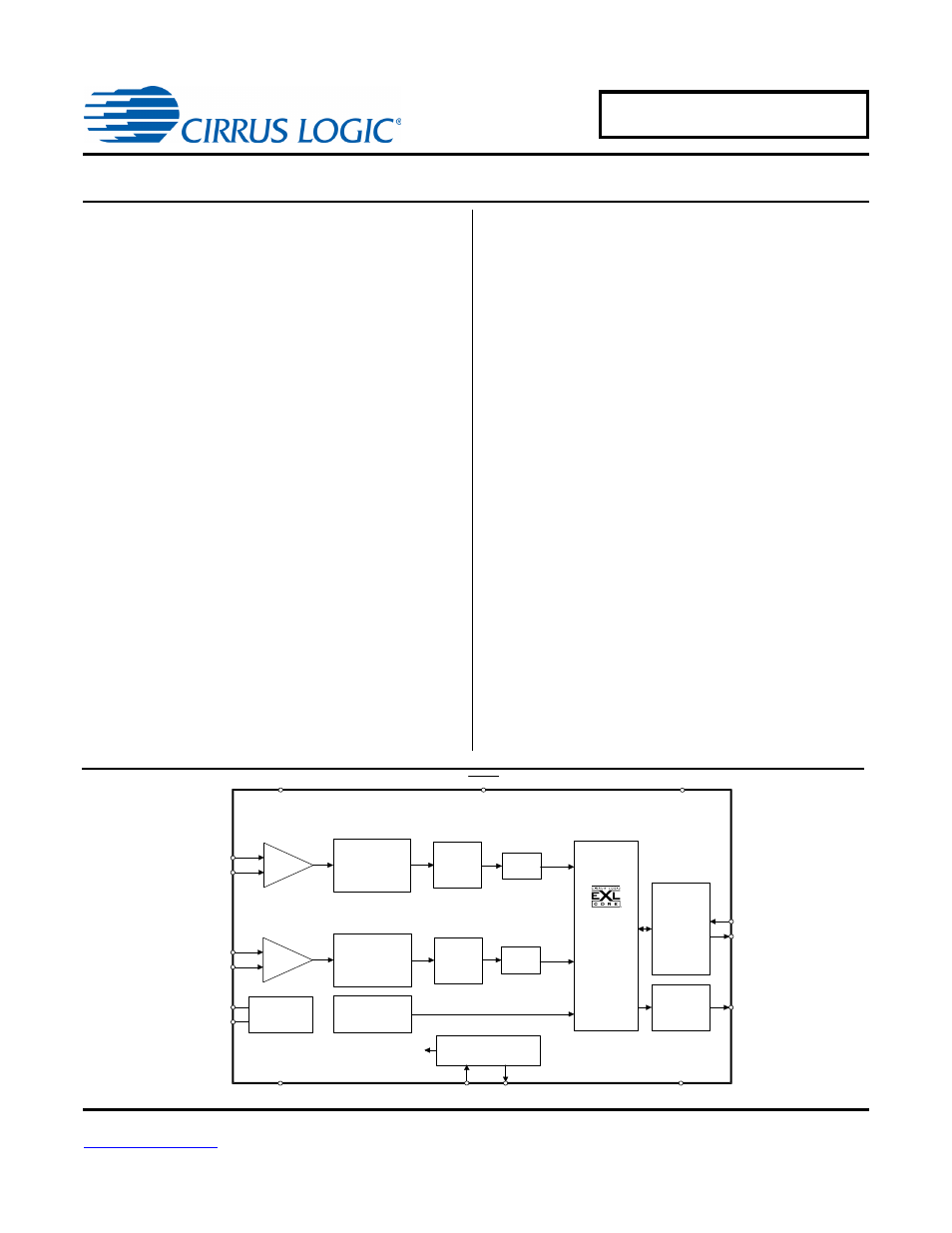

CS5490
MODE
Clock
Generator
XIN
XOUT
TX
RX
UART
Serial
Interface
4th Order
Modulator
Digital
Filter
HPF
Option
IIN+
IIN-
PGA
Digital
Filter
HPF
Option
10x
VIN+
VIN-
4th Order
Modulator
DO
Configurable
Digital
Output
MAR’13
DS982F3
