Keys
Keys

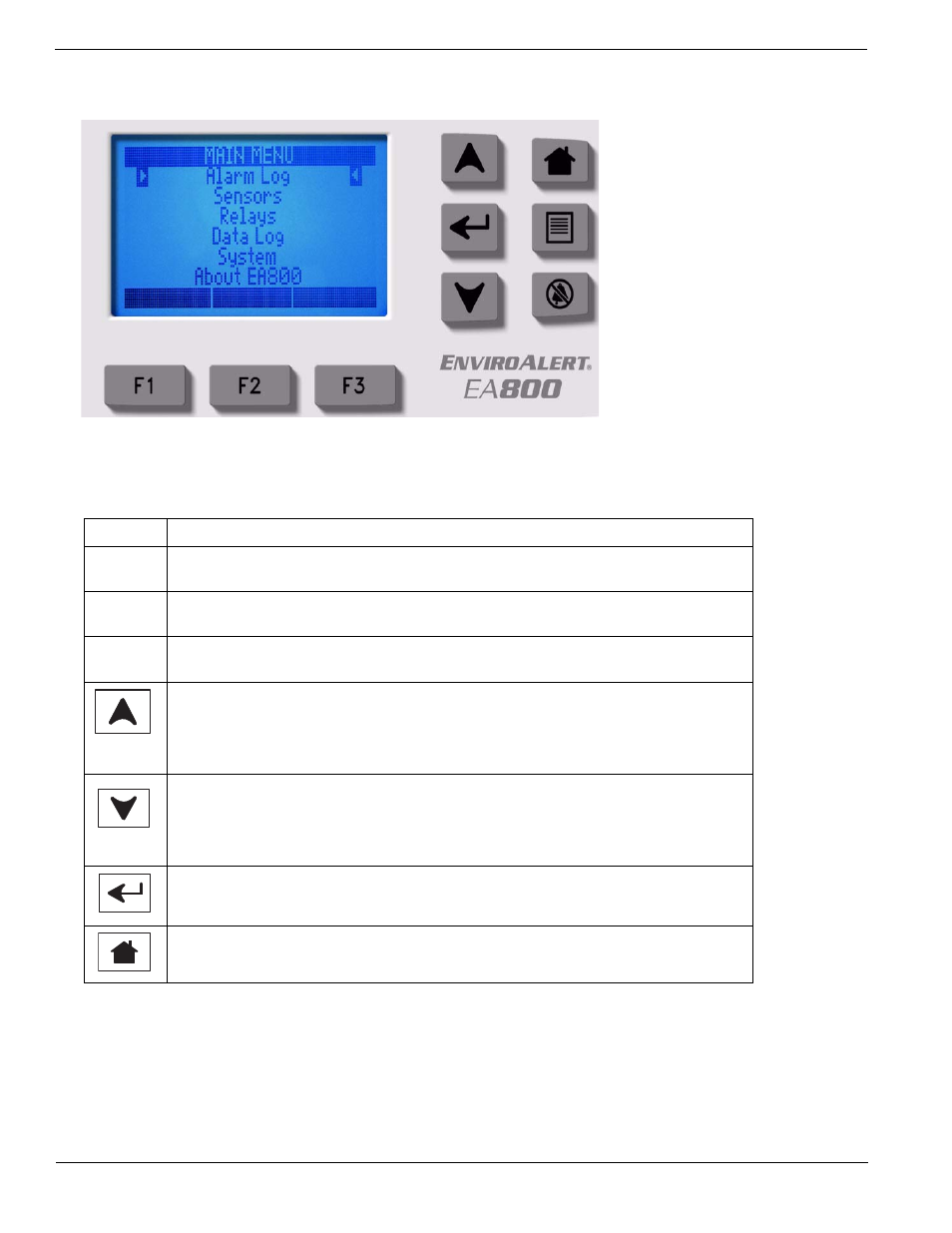

Figure 4 shows the console display and entry keys. The keys are described in Table 2.
Figure 4 EA800 Console Keys
Table 2 Key Functions
Key Function
F1 This key's function changes as determined by the software. Its current function is
displayed immediately above the key on the display.
F2 This key's function changes as determined by the software. Its current function is
displayed immediately above the key on the display.
F3 This key's function changes as determined by the software. Its current function is
displayed immediately above the key on the display.
Up Arrow: This key provides the scroll up function. It moves the selection cursor up
a list or increments the value of alphanumeric entry fields as identified by the flash-
ing cursor. The values provided are dependent on the currently active field. For
example, the available selections may be a + or - sign, numbers, or alphanumeric
characters and special characters.
Down Arrow: This key provides the scroll down function. It moves the selection
cursor down a list or decrements the value of alphanumeric entry fields as identified
by the flashing cursor. The values provided are dependent on the currently active
field. For example, the available selections may be a + or - sign, numbers, or alpha-
numeric characters and special characters.
ENTER key. This key accepts the currently entered selection when pressed. If the
selection is a menu item, the selected item is accessed. If the current selection is an
entered value, pressing the ENTER key accepts the entered value.
HOME key. This key displays the home screen ( MONITORING) when pressed.
