VLAN Configuration
3-145
3
Command Usage
To configure protocol-based VLANs, follow these steps:
1. First configure VLAN groups for the protocols you want to use (page 3-137).
Although not mandatory, we suggest configuring a separate VLAN for each
major protocol running on your network. Do not add port members at this time.
2. Create a protocol group for each of the protocols you want to assign to a VLAN
using the Protocol VLAN Configuration page.
3. Then map the protocol for each interface to the appropriate VLAN using the
Protocol VLAN Port Configuration page.
Configuring Protocol Groups
Create a protocol group for one or more protocols.
Command Attributes
• Protocol Group ID – Group identifier of this protocol group.
(Range: 1-2147483647)
• Frame Type 19 – Frame type used by this protocol. (Options: Ethernet, RFC_1042,
LLC_other)
• Protocol Type – The only option for the LLC_other frame type is IPX_raw. The
options for all other frames types include: IP, ARP, RARP.
Web – Click VLAN, Protocol VLAN, Configuration. Enter a protocol group ID, frame
type and protocol type, then click Apply.

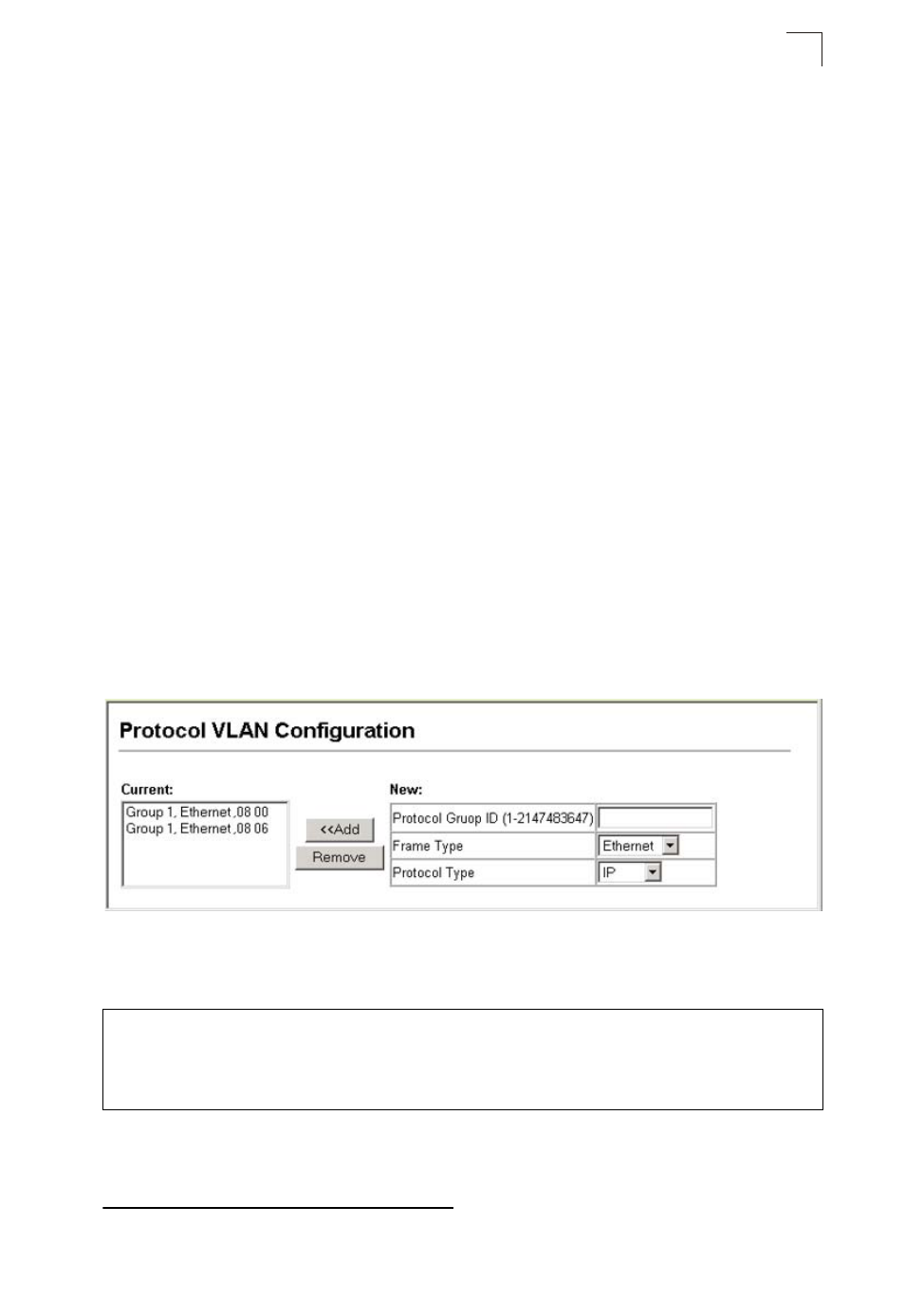

Figure 3-83 Protocol VLAN Configuration
CLI – The following creates protocol group 1, and then specifies Ethernet frames
with IP and ARP protocol types.
19. SNAP frame types are not supported by this switch due to hardware limitations.
Console(config)#protocol-vlan protocol-group 1
add frame-type ethernet protocol-type ip 4-179
Console(config)#protocol-vlan protocol-group 1
add frame-type ethernet protocol-type arp
Console(config)#
