Nilfisk-ALTO 2000 - Manual (Page 96)

2-46 AMERICAN-LINCOLN TECHNOLOGY
SMART 2000

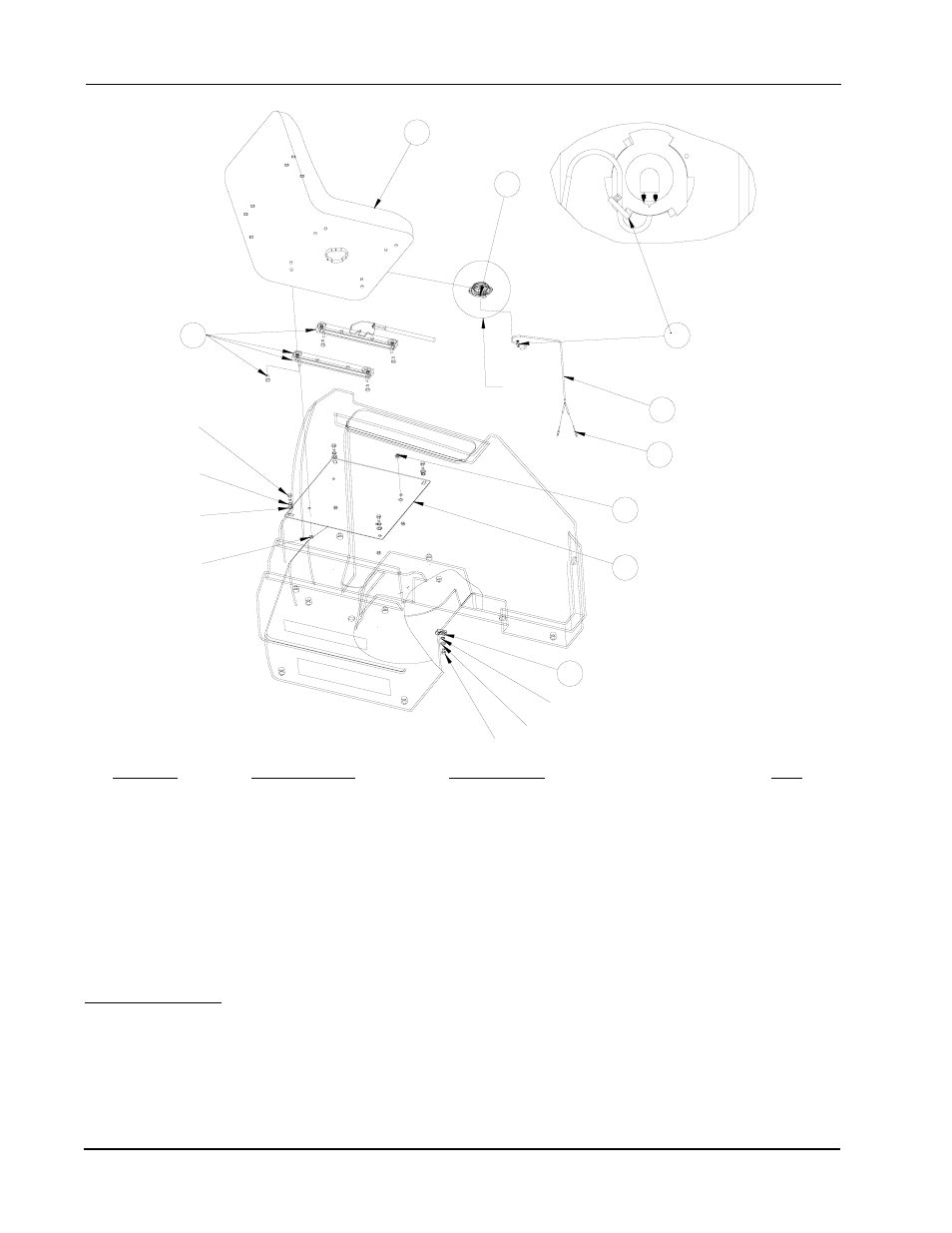

SEAT ASSEMBLY
C1910/0005
1
H52
H53
H361
H46
H52
H53
H47
3
4
7
9
5
VIEW A FOR THE
SEAT SWITCH ASS’Y
6
8
2
VIEW A
Key No. Part Number Description Qty.
1 2-00-04873 Cable Clamp 1
2 7-58-05297 Plate, Seat MTG. 1
3 7-72-05005 Seat Adjuster Kit 1
4 7-69-00006 Seat 1
5 0875-126 Wire, Harness 1
6 2-00-04578 Terminal (.156) 2
7 8-82-00064 Switch, Seat 1
8 2-00-00491 Grommet 1
9 2-00-04345 Tye Rap 1
HARDWARE USED:
H46 2-00-00644 Nut, 5/16 - 18 Insert Fiber 4
H47 2-00-00232 Screw, 3/8 - 16 x .750 HHC 4
H52 2-00-00402 Flat Washer, .750 x .390 x .094 5
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 5
H361 2-00-00231 Screw - HHC - .375-16 x .63 1
C1910/0006
