AMERICAN-LINCOLN TECHNOLOGY 2-59
SMART 2000

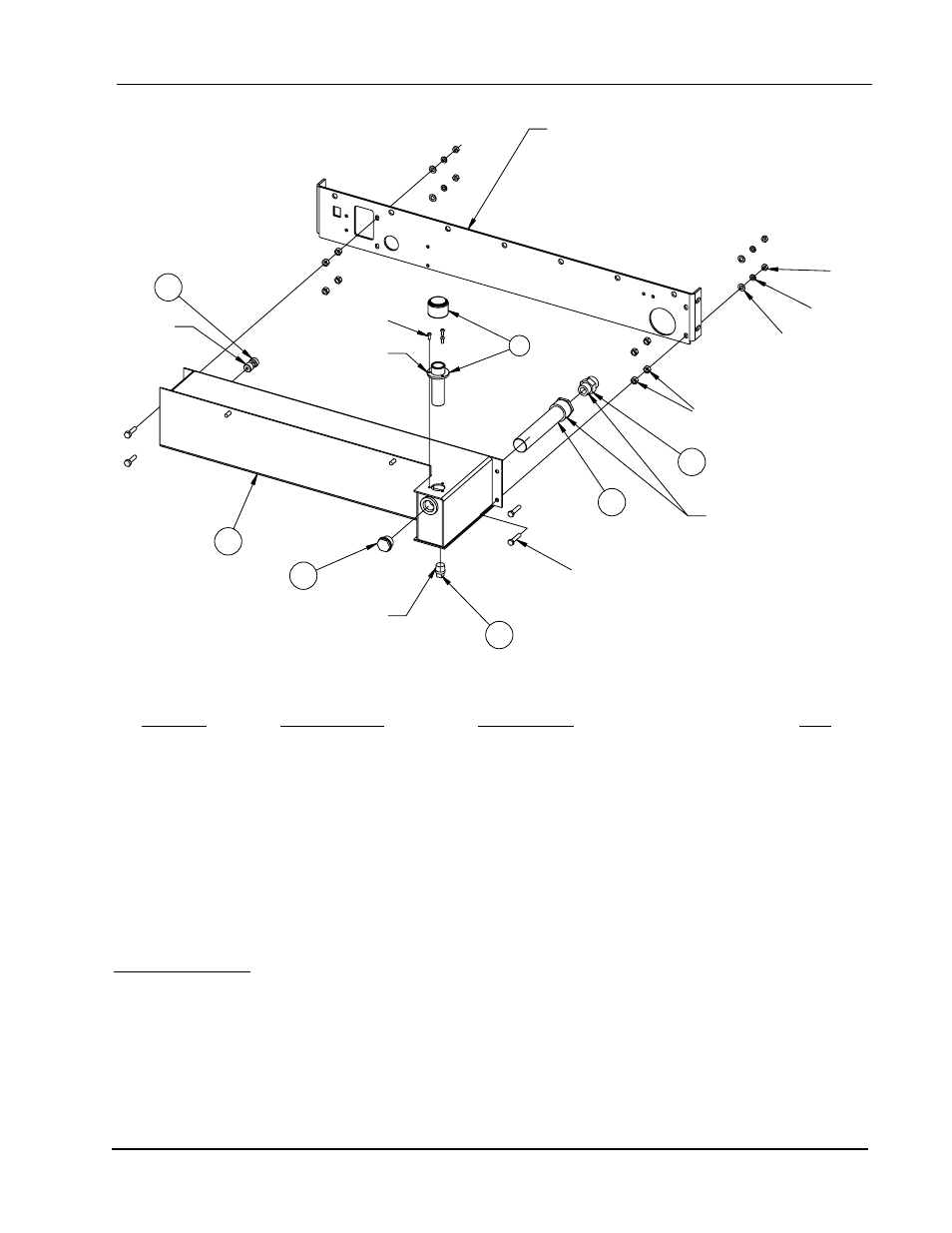

HYDRAULIC RESERVOIR ASSEMBLY
Key No. Part Number Description Qty.
1 7-83-04183 Reservoir 1
2 2-00-02474 Plug - 1/2 NPT 1
3 7-11-00033 Filter Breather 1
4 8-48-05033 Sight Glass (Hyd. Fluid) 1
5 8-24-04115 Strainer - Hydraulic Reservoir 1
*6 2-00-05453 Fitting - 12RFS - 1/2 NPT, STR Ref.
*7 2-00-05439 Fitting - ORS M TO NPTF M 08 X 08 Ref.
* ITEMS ARE PART OF HYDRAULIC KIT 0760-546
HARDWARE USED:
H38 2-00-00225 Screw, 5/16-18 x 1.500 HHC 4
H43 2-00-00409 Flat Washer, .687 x .344 x .062 4
H44 2-00-00530 Lock Washer, 5/16 HS Med. 4
H45 2-00-00585 Nut, Hex. 5/16-18 x .500 x .265 4
H54 2-00-02360 Nut, 3/8-16 Hex. 8
H222 2-00-02848 Screw, 10-32 x .50 Cad PL, STL RHM 3
C1964/0106
1
4
2
APPLY PST
H38
5
6
H54
APPLY PST
C1964/0007
3
DO NOT USE
SUPPLIED
GASKET
H43
H44
H45
REF 7-81-00224
H222
APPLY RTV
SEALANT
7
APPLY PST
