3-6 AMERICAN-LINCOLN TECHNOLOGY
SMART 2000

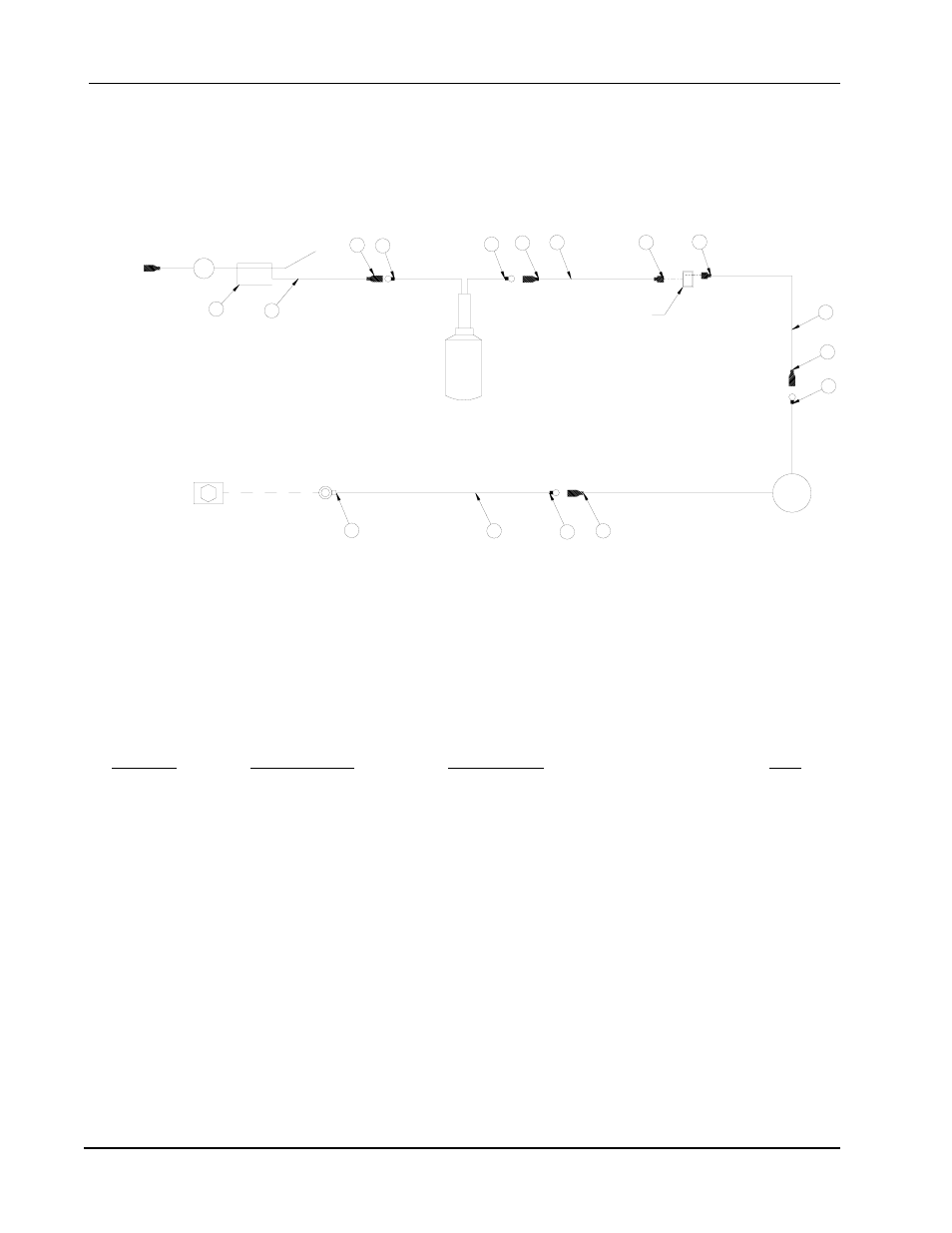

ESP RECOVERY OPTION
EXISTING WIRE AT
HIGH RECOVERY
FLOAT SWITCH
3E
1 6 *
2 3 3 2 6 * 4 4
BACK VIEW OF SWITCH
SEP
FLOAT
SWITCH
6 *
2
3
RED
BLACK
MTR
ESP
C1972/0008
6 3 2 5
EXISTING (-)
ISOLATION POST
ON POWER PANEL
*CUT TO SUIT
ROUTE ALONG EXISTING HARNESS
AND USE TYE-RAP AS NEEDED
Key No. Part Number Description Qty.
1 2-00-04479 Terminal - 3 way 1
2 2-00-04626 Terminal - .156 Fem Bullet 4
3 2-00-04578 Terminal - .156 Male Bullet 4
4 2-00-03418 Terminal - .25 Fiso Fem 2
5 2-00-04284 Terminal - Ring 2
6 3-61-00189 Wire - 16 AWG Black 15”
C1972/0008
