HYDRAULIC RESERVOIR
4.0 GAL
(REF 7-83-04183)
RETURN FILTER
10 MICRON
(REF 7-24-04013)
PORT A
PORT B
STEERING CYLINDER
1.5 DIA. BORE W/ .75 ROD
6.25 STROKE
(REF 7-17-05010-1)
3-WAY SOL. VALVE
36V
(REF 7-88-00081)
1 3
2-2 2-4
2-1
STEERING CONTROL UNIT
(REF 7-88-00080)
SEQUENCE VALVE
(REF 7-12-02037)
MAIN BROOM MOTOR
1.93 CIR
2.3 GPM
(REF 0885-078)
300
PSI
3
2
L
T
1000
PSI
R
P
PB
S2 ENERGIZED
FOR DOWN POSITION
FRONT
REAR
REAR WHEEL DRIVE MOTOR
22.8 CIR
2.3 GPM
(REF 0885-094)
MAIN BROOM CYLINDER
1.5" BORE W/ .625" ROD
1.75" STROKE
(REF 7-17-05022)
S1 ENERGIZED
FOR UP POSITION
4-WAY SOL. VALVE (36V)
(REF 7-12-02036)
3 1 S2
2 4
S1
AMERICAN LINCOLN TECHNOLOGY
SMART 2000
1-47

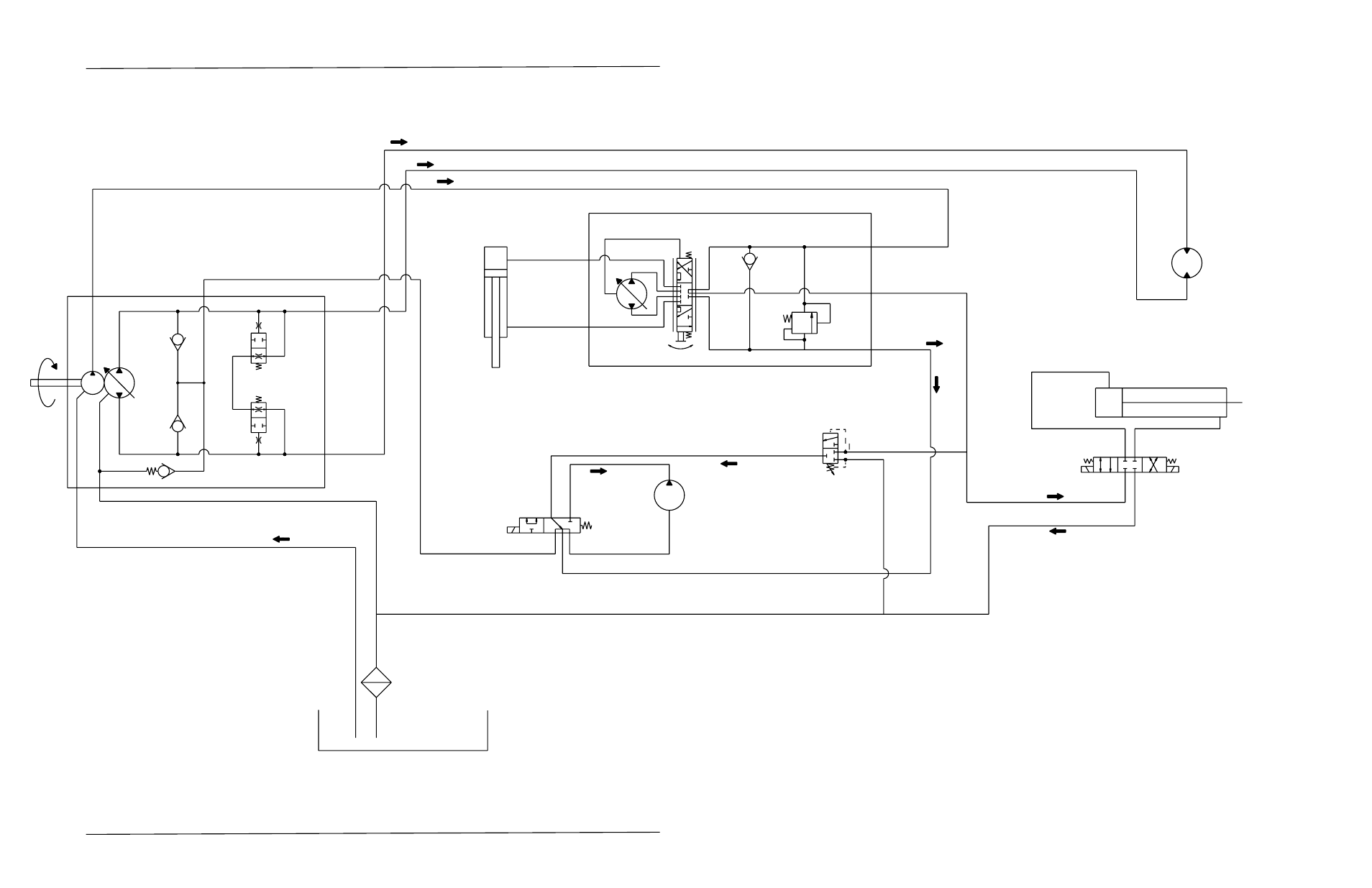

HYDRAULIC SCHEMATIC (BATTERY)
C1537/0102
