Nilfisk-ALTO 2000 - Manual (Page 103)

AMERICAN-LINCOLN TECHNOLOGY 2-53
SMART 2000
8 NOTE ORIENTATION
OF PINS
REF INSTRUMENT PANEL
BACK VIEW
H12
H9
2
H187
H6
REF POWER PANEL
9
3
4
6
5
7
1
H12
H9
C1974/0102

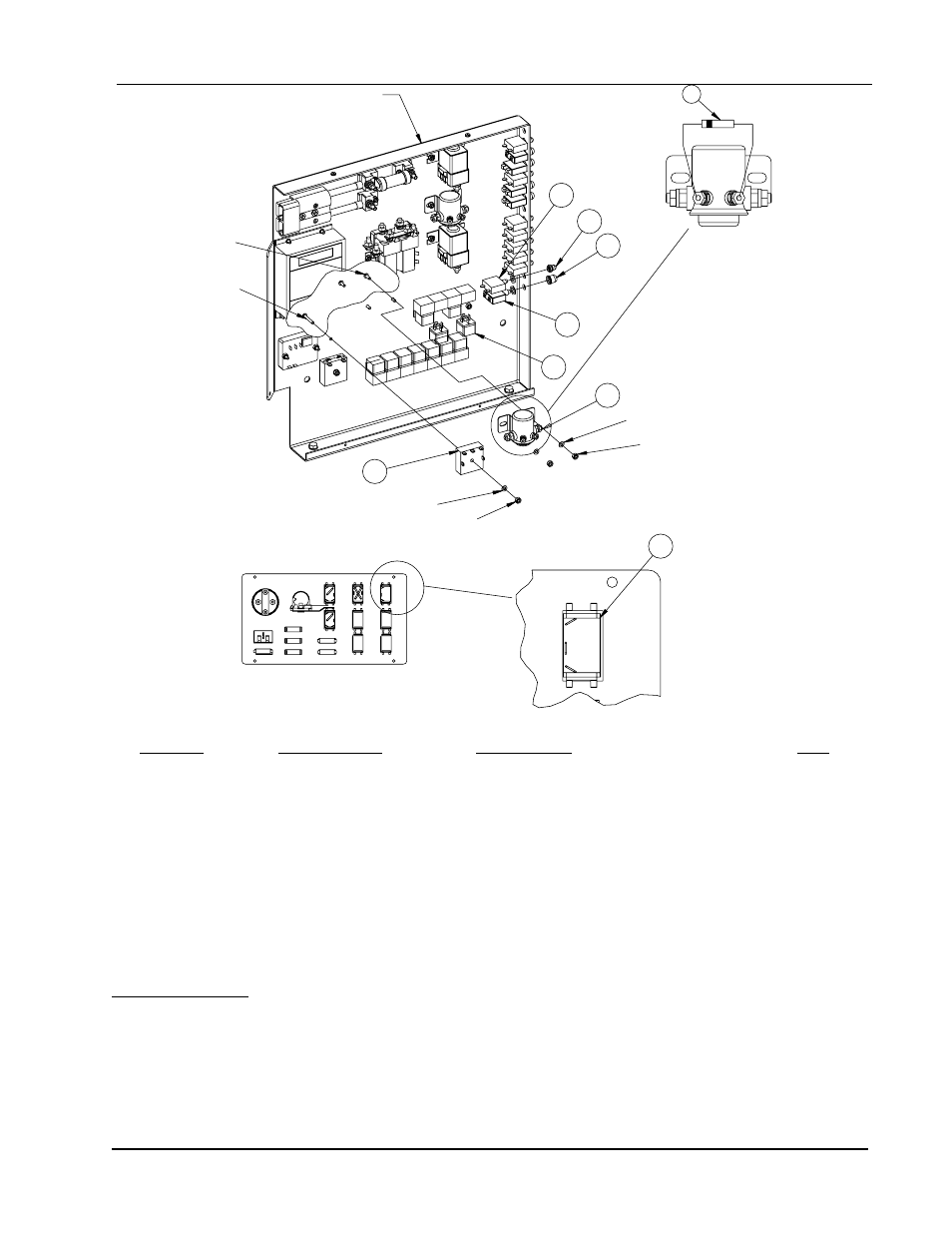

Key No. Part Number Description Qty.
1 2-00-04825 Solenoid 1
2 8-64-00020 20 Second Timed Relay 1
3 8-64-00008 Circuit Breaker (25 AMP) CB-14 1
4 8-11-00044 Boot 1
5 7-64-00025 Circuit Breaker - 25 Amp 1
6 8-11-00051 Boot (7/16) 1
7 7-64-00037 Relay - 36v w/ Diode Assembly 2
8 7-82-00044 Switch 1
9 0775-159 Diode Assembly 1
HARDWARE USED:
H6 2-00-00049 Screw, #10-24 x .500 RHM 2
H9 2-00-00426 Flatwasher, .500 x .219 x .063 3
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 3
H187 2-00-00071 Screw, #10-24 x 1.250 RHM 1
C1974/0102
DUST CONTROL (cont.)
