Chapter Five--Control Setup
2. Name the Zone. (Figure 5-7)
3. Choose Grouped or Sequenced operation. (Figure 5-7)

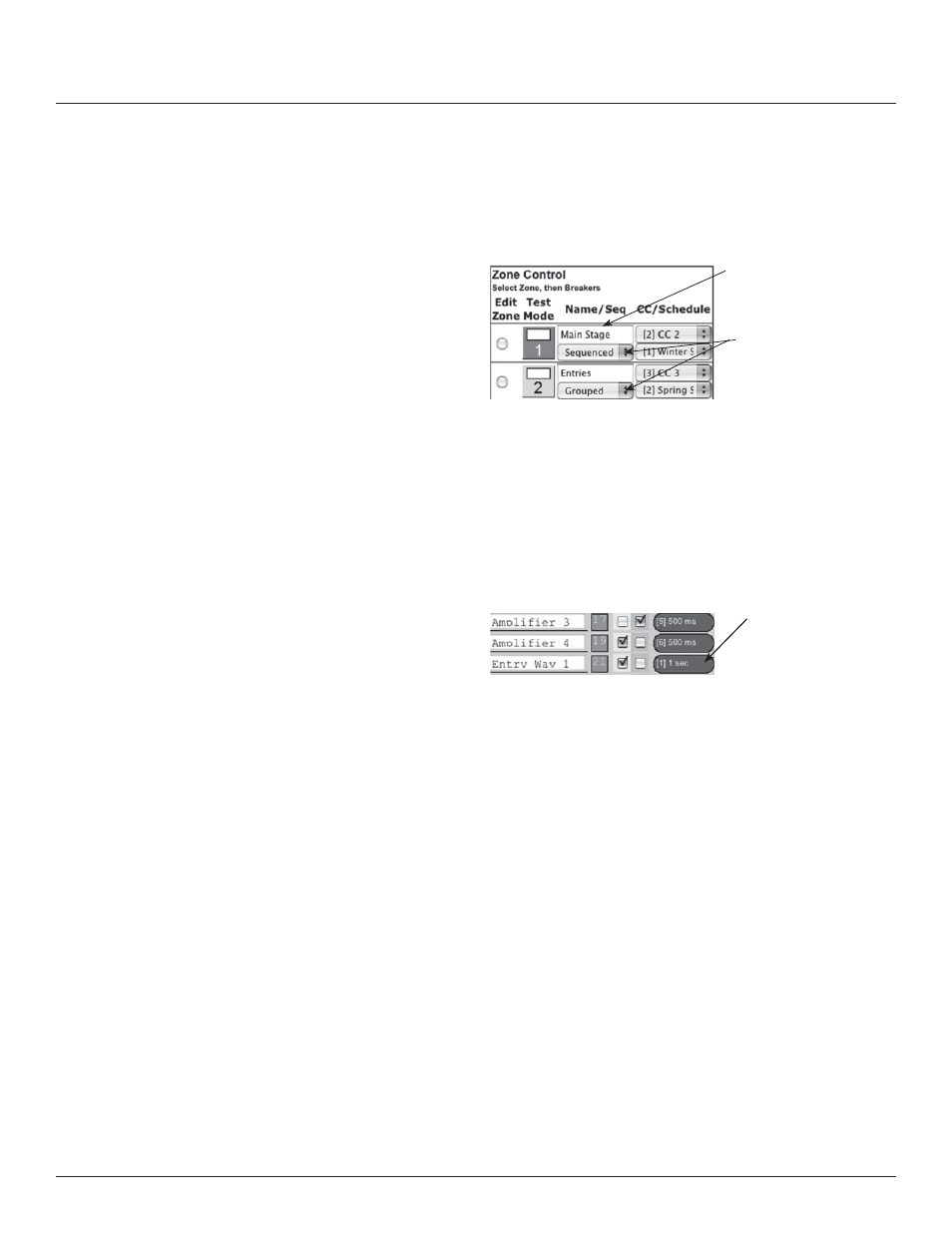

Figure 5-7
Name the Zone
Choose grouped or
sequenced from the
dropdown
5. Select a breaker to add to the zone by clicking on the
breaker you want to add. Only motorized breakers
(indicated in green) may be added to zones. (Figure 5-8)
Scroll down to add breakers from additional panels.
6. Select the position of the breaker in the zone. This set
the order in which they turn on and off . (Figure 5-9)
7. For sequenced operation, select a delay time from the
dropdown. Breakers in grouped zones toggle in 25ms
intervals. (Figure 5-9) Delay time is the amount of time
after a breaker changes state, before the new breaker
in sequence changes state.
Figure 5-8
Click on the green oval
to add a breaker to a
zone.
