4

Remove the power plug from the charg-
er and hook the holder into the appli-
ance (model Bp Pack only).

Open the lock.

Swivel the top of the appliance forward.

Tilt the wastewater tank backwards.

Clamp off the minus pole of the battery.

Clamp off the remaining cables from the
battery.

Remove the batteries.

Dispose of the used batteries according
to the local provisions.

While standing, the device is protected
against rolling off with the help of an electri-
cal immobilising brake. To push the de-
vice, you need to first unlock the immobilis-
ing brake.

Press the unlocking lever down to un-
lock the parking brake.

ƽ

Danger

Risk of accident if the device rolls off. Apply
the immobilising brake again immediately
after finishing pushing the machine by
pushing the unlocking lever down.
Notice
Risk of damage. Never move the appliance
faster than 7 km/h.

Note:
Take the foot off the accelerator pedal,
press the emergency-stop button and turn
the key switch to "0" to immediately deacti-
vate all functions.

Remove the cardboard packaging to-
wards the top of the appliance.

Put the accompanying cardboard
aside.

Cut and remove the strap retainer.

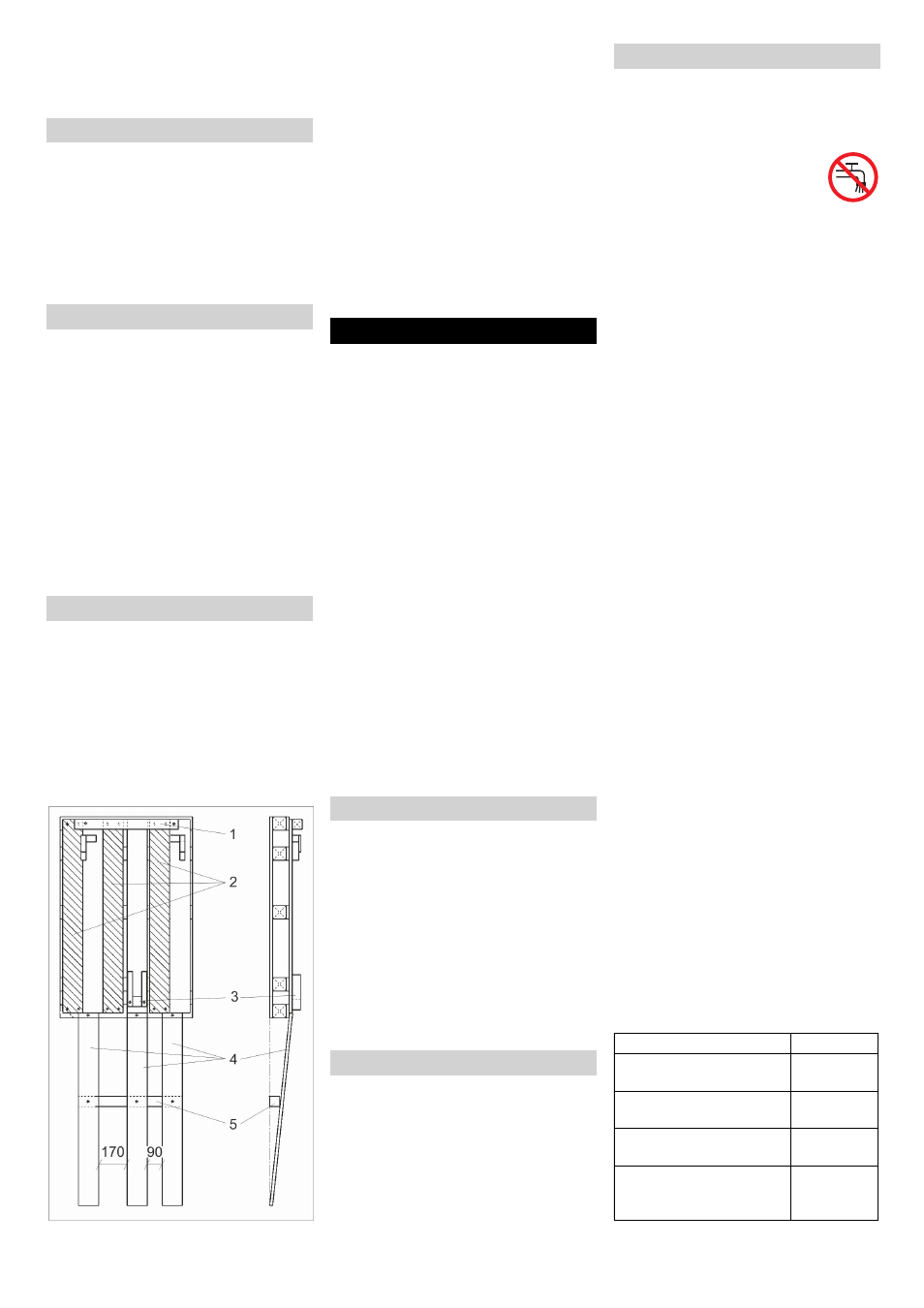

1 Squared timber, condition on delivery

2 Roll-off ramp, condition on delivery
3 Fixation front wheel
4 Roll-off ramp, after conversion
5 Squared timber, after conversion

Unscrew the squared timber and the
roll-off ramps from the pallet.

Screw down the roll-off ramps and
squared timber as shown above.

Remove the front wheel lock.

Press the unlocking lever down to un-
lock the parking brake.

Push the appliance forward off the pal-
let.

Press the unlocking lever upward to un-
lock the parking brake.

Warning

Long hours of using the appliance can
cause circulation problems in the hands on
account of vibrations.
It is not possible to specify a generally valid
operation time, since this depends on sev-
eral factors:

Proneness to blood circulation deficien-
cies (cold, numb fingers).

Low ambient temperature. Wear warm
gloves to protect hands.

A firm grip impedes blood circulation.

Continuous operation is worse than an
operation interrupted by pauses.

In case of regular, long-term operation of
the device and in case of repeated occur-
rence of the symptoms (e.g. cold, numb fin-
gers) please consult a physician.
Note:
Take the foot off the accelerator pedal,
press the emergency-stop button and turn
the key switch to "0" to immediately deacti-
vate all functions.

Carry out maintenance jobs "Prior to
operation" (see section "Maintenance
and Care").

ƽ

Danger

Danger of accident. The immobilizing brake
must always be checked first on an even
surface before starting the machine.

Set main switch to “0”.

Press emergency-stop button.

If the appliance can be moved by hand, the
parking brake is not engaged.

Pull up the reset lever of the parking
break.

If the appliance can still be moved by hand,
the parking break is defective. Shut down
the appliance and call Customer Service.

ƽ

Danger

Danger of accident. If the appliance cannot
brake adequately while going downhill,
press the emergency stop button.

Close the lid of the fresh water tank.

Warning

Observe regulations of water supplier.
According to applicable regula-
tions, the appliance must never be
used on the drinking water net
without a system separator. A suit-
able system separator by KÄRCHER or al-
ternatively a system separator according to
EN 12729 type BA must be used.
Water that was flowing through a system
separator is considered non-drinkable.

Caution

Always connect the system separator to
the water supply, never directly to the appli-
ance!

Connect the hose to the automatic fill-
ing system and open the water supply
(max. 60 °C, max. 5 bars).

Monitor the appliance - the automatic
filling system will interrupt the water
supply when the tank is full.

Shut off the water supply and discon-
nect the hose from the appliance.

or

Open the cover of the fresh water reser-
voir.

Fill in fresh water (maximum 60 °C).
Leave sufficient space for the deter-
gent.

Close the cover of the fresh water res-
ervoir.

Note:
Fill up the fresh water tank completely prior
to the initial start-up to bleed the water pipe
system.
If the pipe system is empty, it can take up to
2 minutes until the detergent solution exits
the cleaning head.

Notice
Risk of damage. Only use the recommend-
ed detergents. With other detergents, the
operator bears the increased risk regarding
the operational safety and danger of acci-
dent.
Only use detergents that are free from sol-
vents, hydrochloric acid and hydrofluoric
acid.
Follow the safety instructions for using de-
tergents.
Note:
Do not use highly foaming detergents.
Recommended detergents:

After charging

Removing the batteries

Pushing the device

Unloading

Operation

Check immobilizing brake

Brakes

Filling in detergents

Fresh water

Detergent

Application

Detergent

Routine cleaning of all wa-
ter resistant floors

RM 780
RM 746

Routine cleaning of glossy
surfaces (e.g. granite)

RM 755 es

Routine cleaning and basic
cleaning of industrial floors

RM 69 ASF

Routine cleaning and basic
cleaning of fine stoneware
tiles

RM 753

18

EN
