- 2

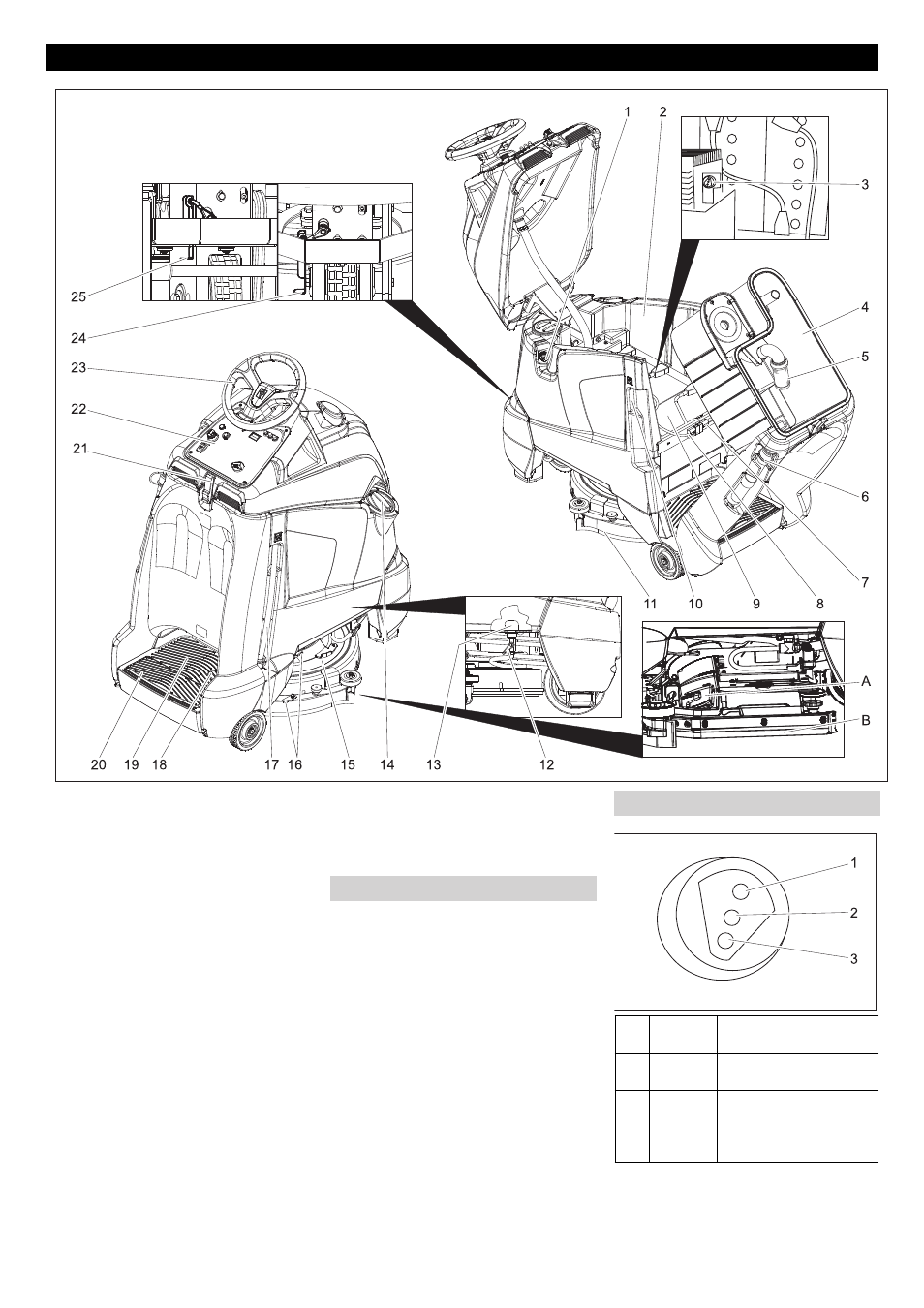

1 Hose connection, automatic filling
2 Fresh water tank
3 Charge status indicator (only Bp Pack
model)
4 Dirt water reservoir
5 Float
6 Dirt water discharge hose
7 Appliance plug
8 Battery socket
9 Battery
10 Power plug for charger (only Bp Pack
model)
11 Vacuum bar
12 Fresh water valve
13 Fresh water strainer
14 Fresh water tank cover
15 Cleaning head
16 Suction bar support for severe soiling
(two-step method)
17 Fresh water level display
Drainage hose for fresh water
18 Drive pedal
19 Standing area for operator
20 Safety pedal
21 Lock
22 Operator console
23 Steering wheel
24 Unlock lever, driving
25 Unlock lever, pushing
A Coarse dirt pan (BR model only)
B Spray protection, side (BR model only)
– The operating elements for the cleaning
process are yellow.
– The controls for the maintenance and
service are light gray.
Operating and Functional Elements
Colour coding
Battery load indicator
1 green Illuminated: Charge is
completed.
2 yellow Illuminated: Final phase
of charging process.
3 red Illuminated: Charging
process.
Blinking: Initialisation of
charger.
