Blodgett BLCT - Manual (Page 33)

31
Operation
Using Advanced Rack Timing
CooKinG WiTH RACK TimeR
NOTE: The top portion of the RACK TIMER COOK
screen contains the recipes in your group. If
there are more than 6 recipes in your group
you can browse the other recipes by swiping
the screen from right to left in this portion of the
screen. To return to the previous 6 recipes sim-
ply swipe in the reverse direction. The highlight-
ed circle below the recipes indicates what page
(of up to 3) you are currently on.
Assigning a Recipe – Click
1. Select the blue timer box associated with the rack
number you’d like to place a recipe on, it will become
highlighted.
2. Select the recipe icon from the top of the screen as-
sociated with the recipe you’d like to place on the se-
lected rack, it will become highlighted.
3. Reselect the highlighted timer box to assign the reci-
pe to the rack.
Assigning a Recipe – Drag and Drop
1. Press and hold the desired recipes’ icon for approxi-
mately 2 seconds.
2. Drag recipe to desired rack location.
starting a recipe
1. Once a recipe has been added to a rack the unit will
begin preheating to the required temperature. Pre-
heating is indicated by a red thermometer icon to the
right side of the screen. Once preheated the icon will
change to an orange “load” icon.
2. The recipe timer will automatically start when the
oven has preheated and the product has been loaded
into the oven (door opened/closed).
Remove Recipes – Drag and drop
1. Press and hold the recipe bar on a rack until a trash
can appears to the right.
2. Drag the recipe to the trash can.

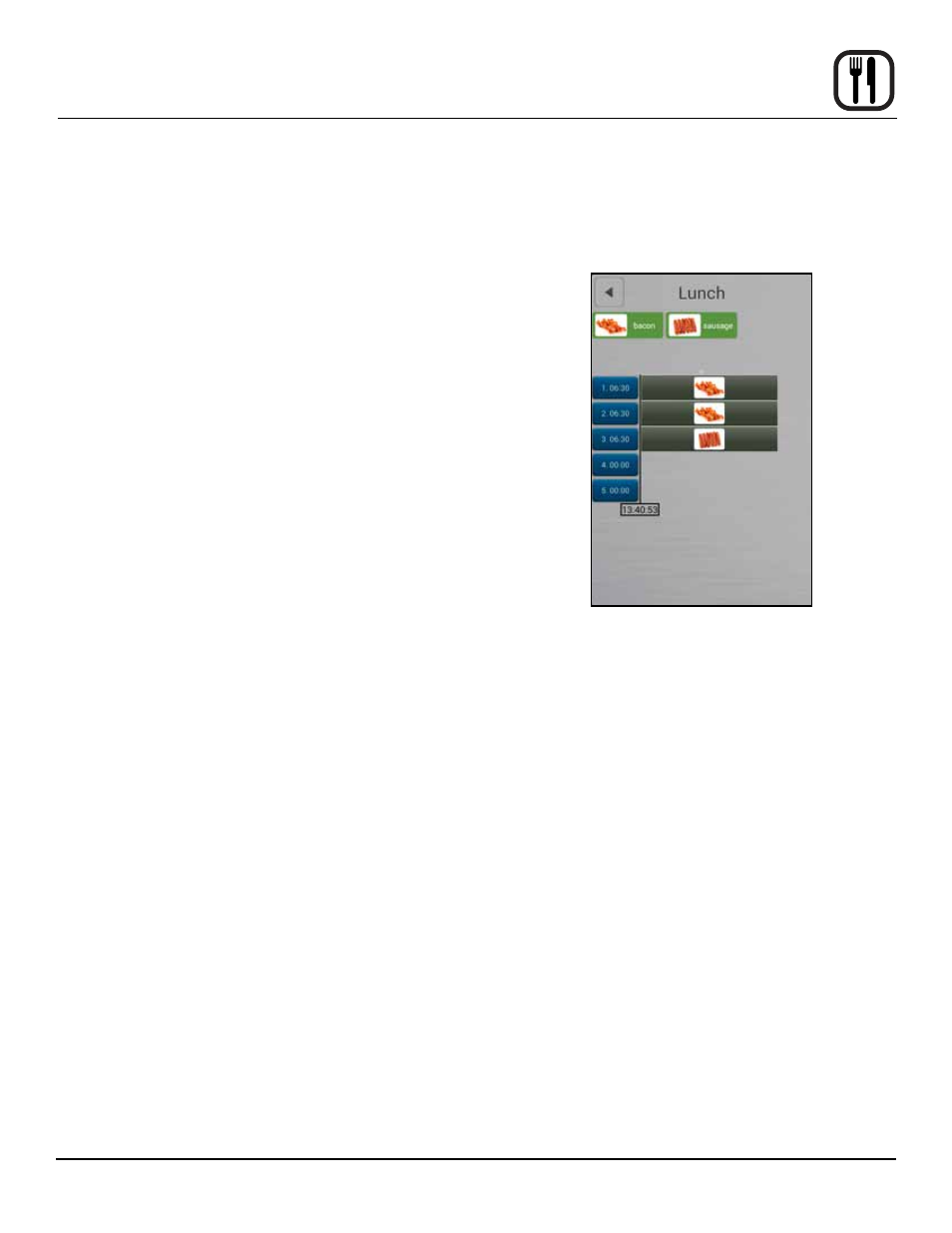

Figure 23
