Allied Telesyn AT-VIEW PLUS
DEVICE MANAGEMENT
AT-AR441S

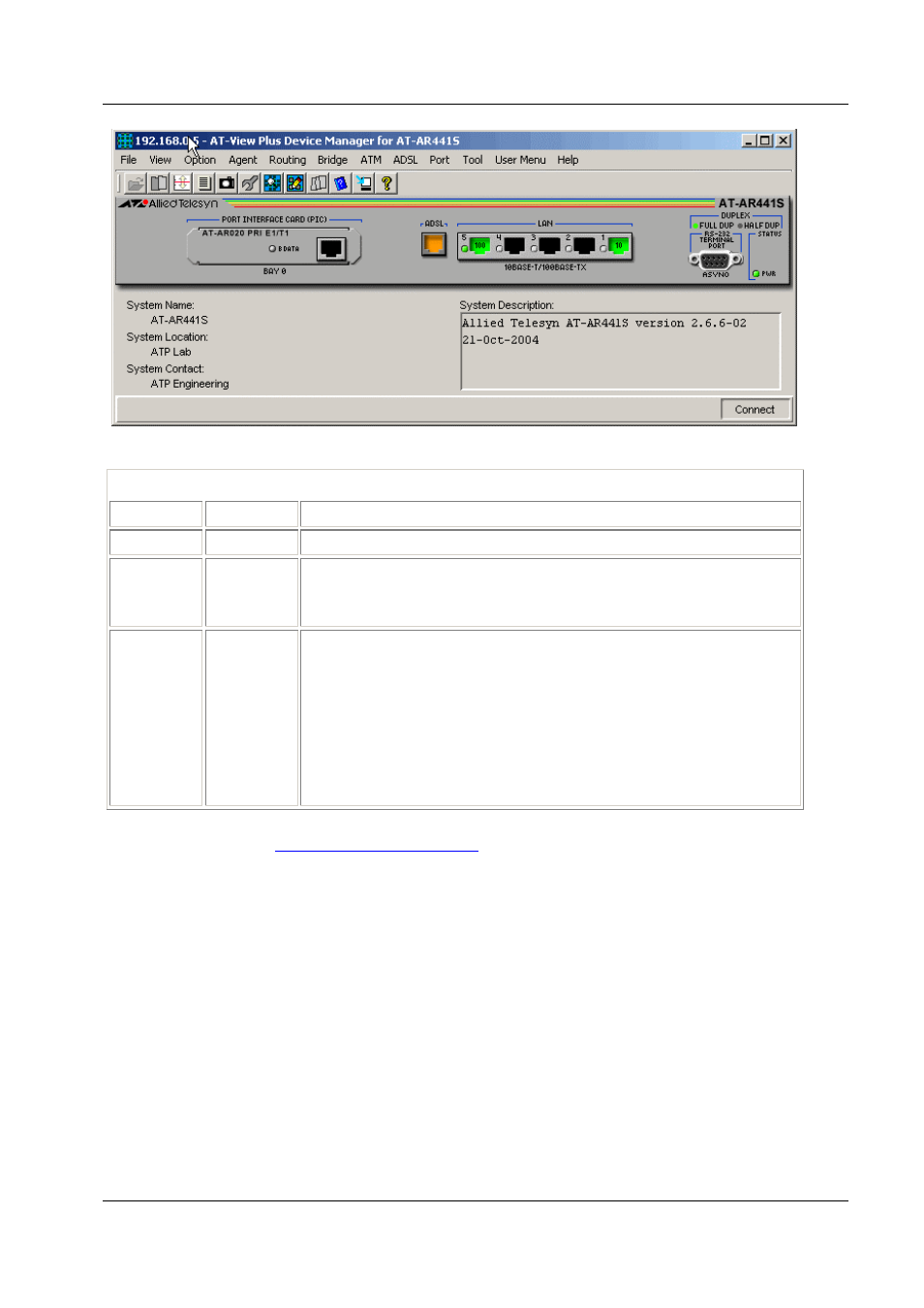

Device Manager LEDs for the AT-AR440S and AT-AR441S
LED State Description
PWR Green The router is receiving power.
DUPLEX Green
Gray
The port is operating at full-duplex.
The port is either inactive or is operating at half-duplex.
ADSL Green
Orange
Black
Red
The interface is enabled and the link is up.
The interface is enabled and is handshaking.
The interface is enabled and is training to negotiate the link.
The interface is enabled and the link is down.
The interface is disabled.
Note - Please refer to Port Interface Cards (PICs) for the operations and behavior of the Port
Interface Cards installed in this device.
Agent Menu
From the Agent menu, you can view and edit the system information for the router, or log into
the CLI using Telnet.
System Info
Displays basic system information, including system name, location, contact and
description.
File List
Displays a list of the files in the router's flash and NVS file systems.
