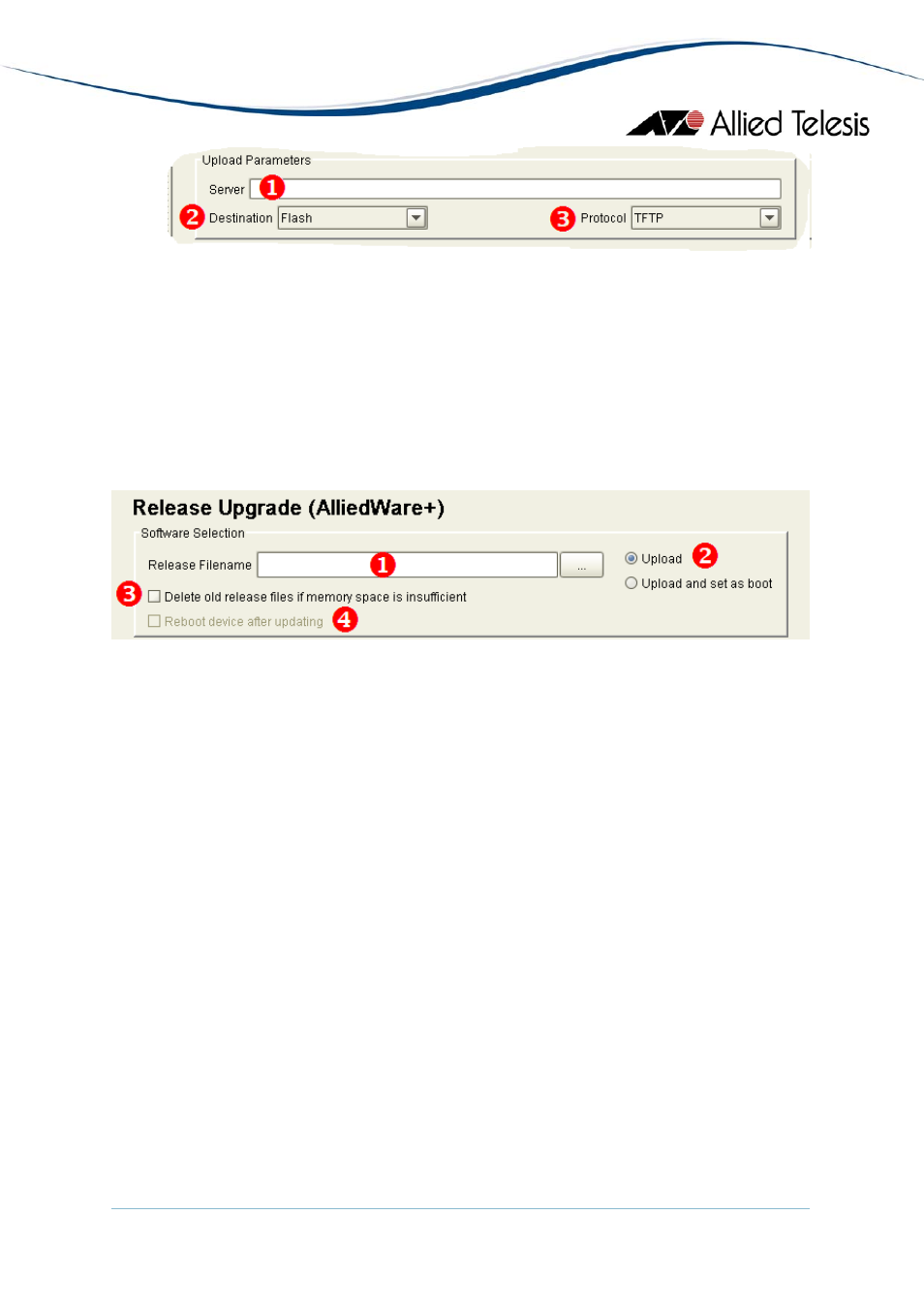

1. Server - This is the address for the server that contains the release file. If the server
is a TFTP server, the server address should be specified as an IP address. If the
server is an HTTP server, the server address should be specified as a URL.
2. Destination - This sets the location where the new release file will be stored. This
can be set to FLASH or NVS.
3. Protocol - This specifies the protocol that the server supports. This can be set to
HTTP or TFTP.
Software Selection and Upload Parameters (AlliedWare+)
1. Release Filename - Specify the license software release file to be used.
2. Upload Options - Choose one of the following options:
• Upload – Uploads the software release file only.
• Upload and set as boot – Uploads and sets the software realease file as the
default boot image.
3. File Deletion Options
• Delete old release files if memory space is insufficient checkbox – If the
devices to be upgraded have limited memory space, there might be a need to
delete the existing release files in order to accommodate the new release file.
If a release file cannot be downloaded due to space limitations and this
option is checked, AlliedView-UM will delete any release files residing in the
device except for the currently installed release. If unchecked, and there is
not enough space to accommodate the new release file, AlliedView-UM will
fail the operation.
4. Reboot device after updating checkbox – If “Upload and set as boot” is choosen as
the Upload Option, this checkbox will be enabled. When checked, AlliedView-UM
will reboot the device after performing the software upgrade.
