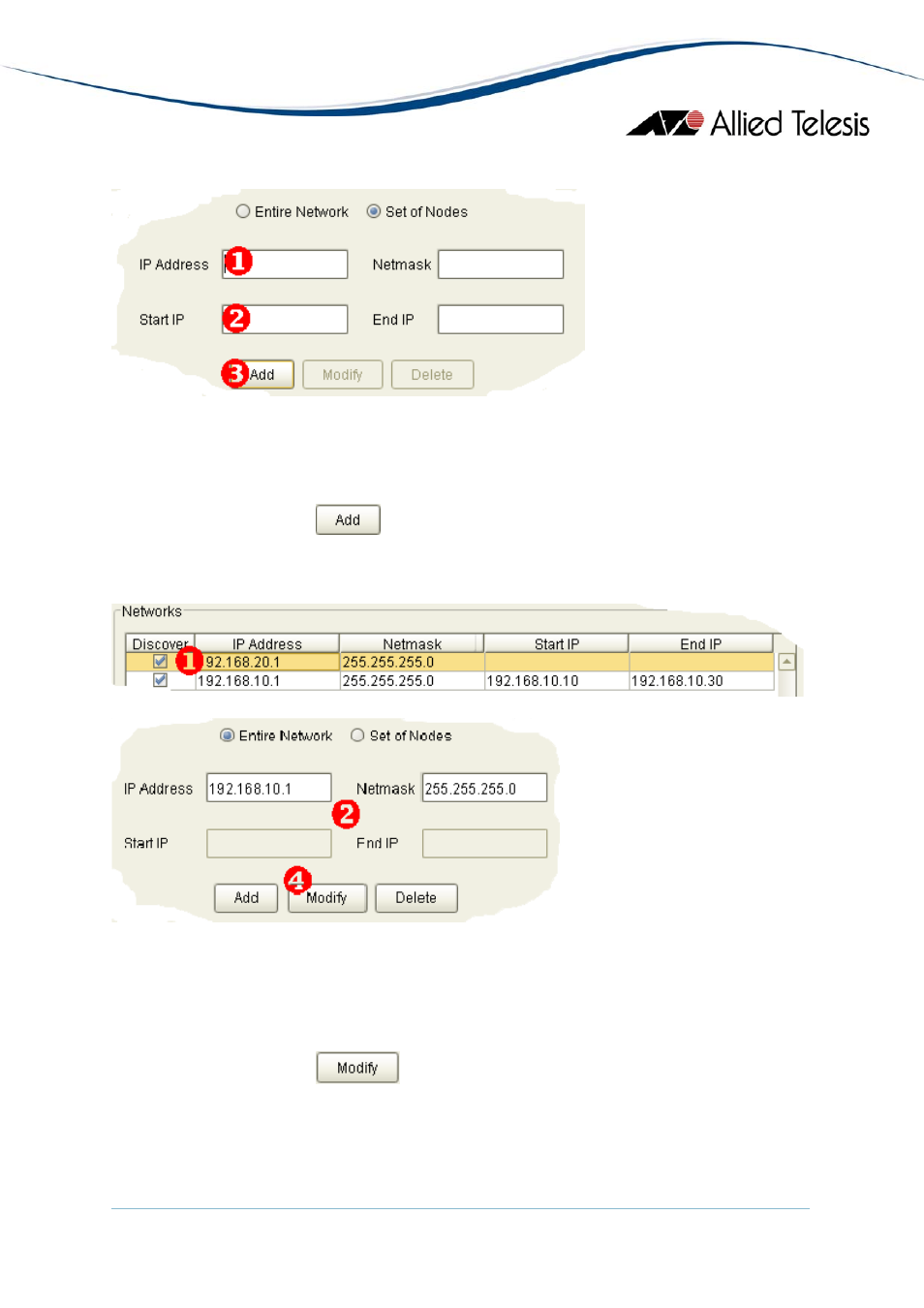

To add a new network:
1. Enter an IP Address and Netmask in the IP Address and Netmask fields respectively.
2. If you wish to specify a specific range within the IP Address/Netmask pair you've just
entered, select the Set of nodes option. You may then enter a Starting and/or Ending
IP Address on the Start IP and End IP fields.
3. Finally, click on the button.
To modify an existing network:
1. Select the network to be modified by clicking on its entry in the Networks list
2. The IP Address and Netmask fields will be populated by the values of the selected
network. If a set of nodes are specified, the Start IP and End IP will also be
populated.
3. You may now modify the existing values.
4. Finally, click on the to reflect the changes.
AlliedView™-UM 2.0 USER’S GUIDE Page 33 of 128
