A. Device Families Pane

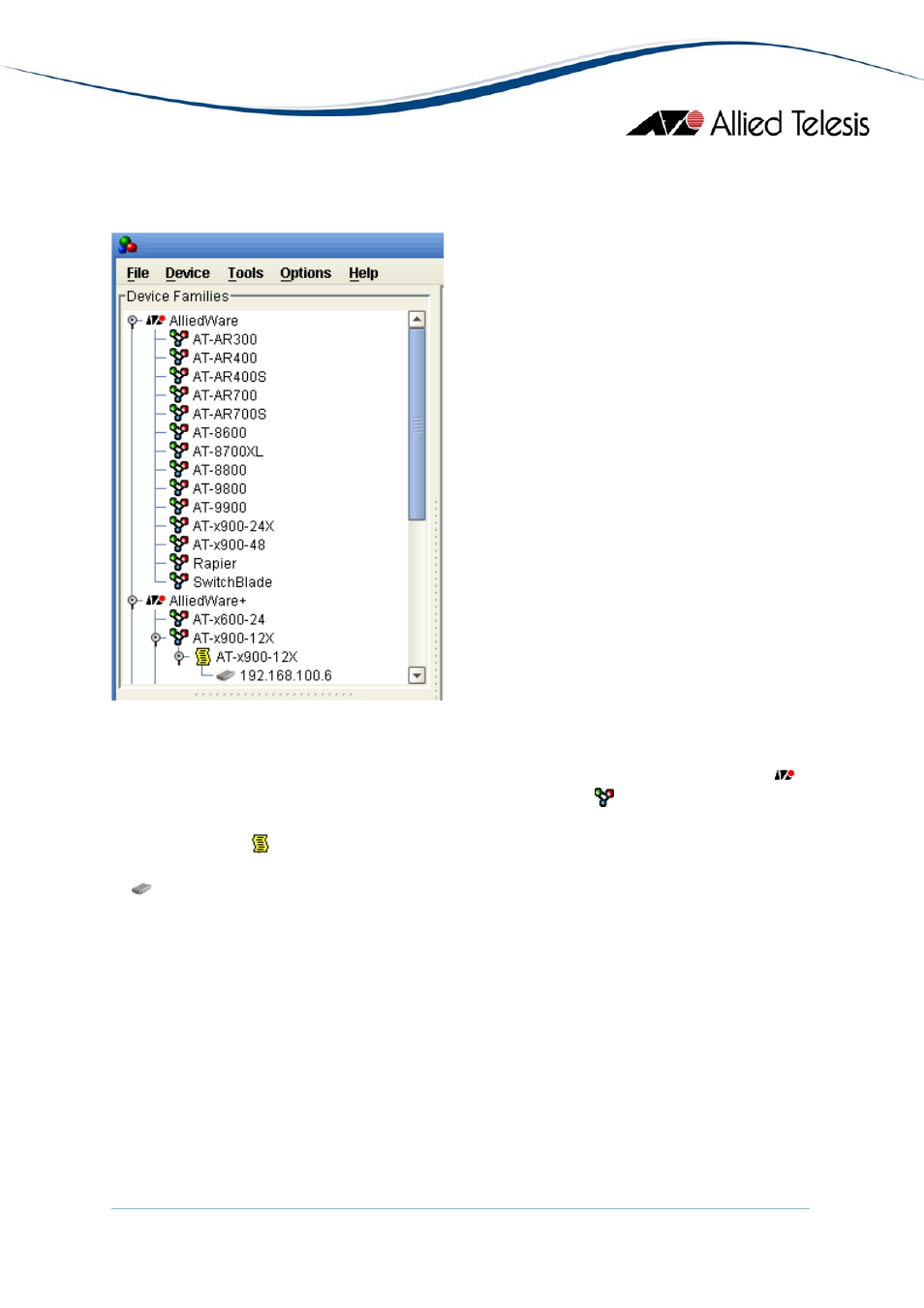

The Device Families Pane is used to manage the devices that AlliedView-UM can interface
with.
The root nodes of the Device Families represent the AT Device Families that are currently
supported by this application. The AT Device Firmware root node is represented by a ( )
icon followed by the AT Device Family name represented by a ( ).
Each AT Device Family node can contain Device Group nodes. A Device Group node is
represented by a ( ) icon followed by the Device Group name.
Finally, a Device Group node can contain Device nodes. A Device node is represented by
a (
) icon followed by the IP address of that device. A Device node cannot contain any
other nodes under it.
Double clicking on a node will display the corresponding dialog box that will allow you
to perform functions pertaining to that node. For instance, if you double click on a Device
Node, the Edit Device dialog box will be displayed. From the Edit Device dialog box you
can view and modify some of the device attributes.
