Specifying Direction Type
To specify source ports and type of packet direction, do the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 24 on page 65.
2. From the Switching tab, hover over Port.
The Port tab is displayed.
3. From the Port tab, move the cursor to the right and select Mirroring
from the drop-down menu.
The Port Mirroring List page is displayed. See Figure 34 on page 87.
4. Click Edit next to the port that you want to specify as a source port for
mirroring.
The Modify Port Mirroring Page is displayed. See Figure 35.

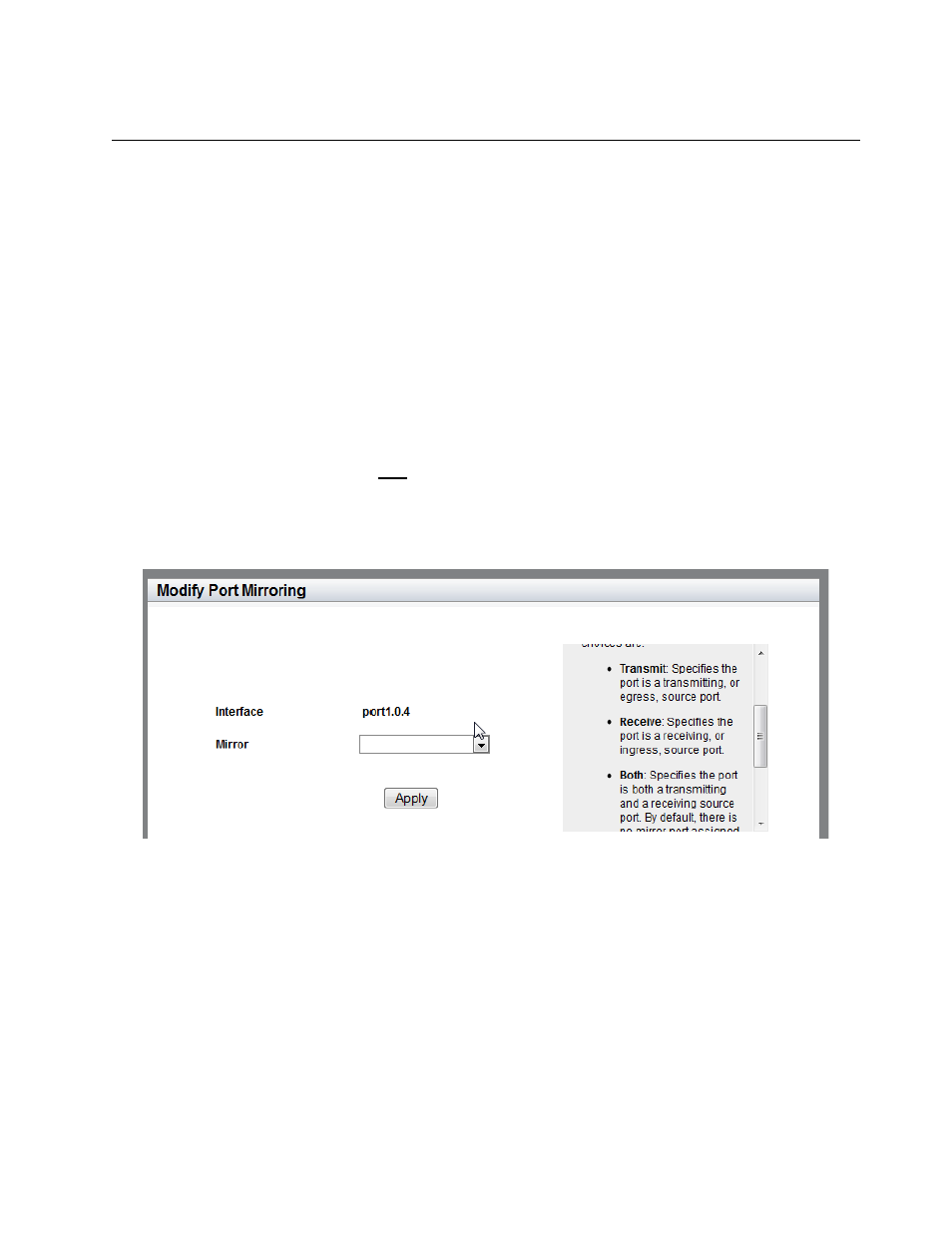

Figure 35. Modify Port Mirroring Page
5. Select the type of mirroring for the port. The options are:
 Transmit— Egress traffic on this port to be copied to the
destination port.
 Receive— Ingress traffic on this port to be copied to the
destination port.
 Both— Both the egress and ingress traffic on this port to be copied
to the destination port.
By default, there is no port assigned to port mirroring.
