AT-8100 Series Version 2.2.5.0 Web Interface User’s Guide
73
Modifying the Storm Control Settings
To modify the storm control settings, do the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 24 on page 65.
2. From the Switching tab, hover over Port.
The Port tab expands to the right.
3. From the Port tab, move the cursor to the right and select Storm
Control.
The Storm Control List page is displayed. See Figure 25 on page 65.
4. Click Edit on the port that you want to modify.
The Storm Control Settings page is displayed. See Figure 28.

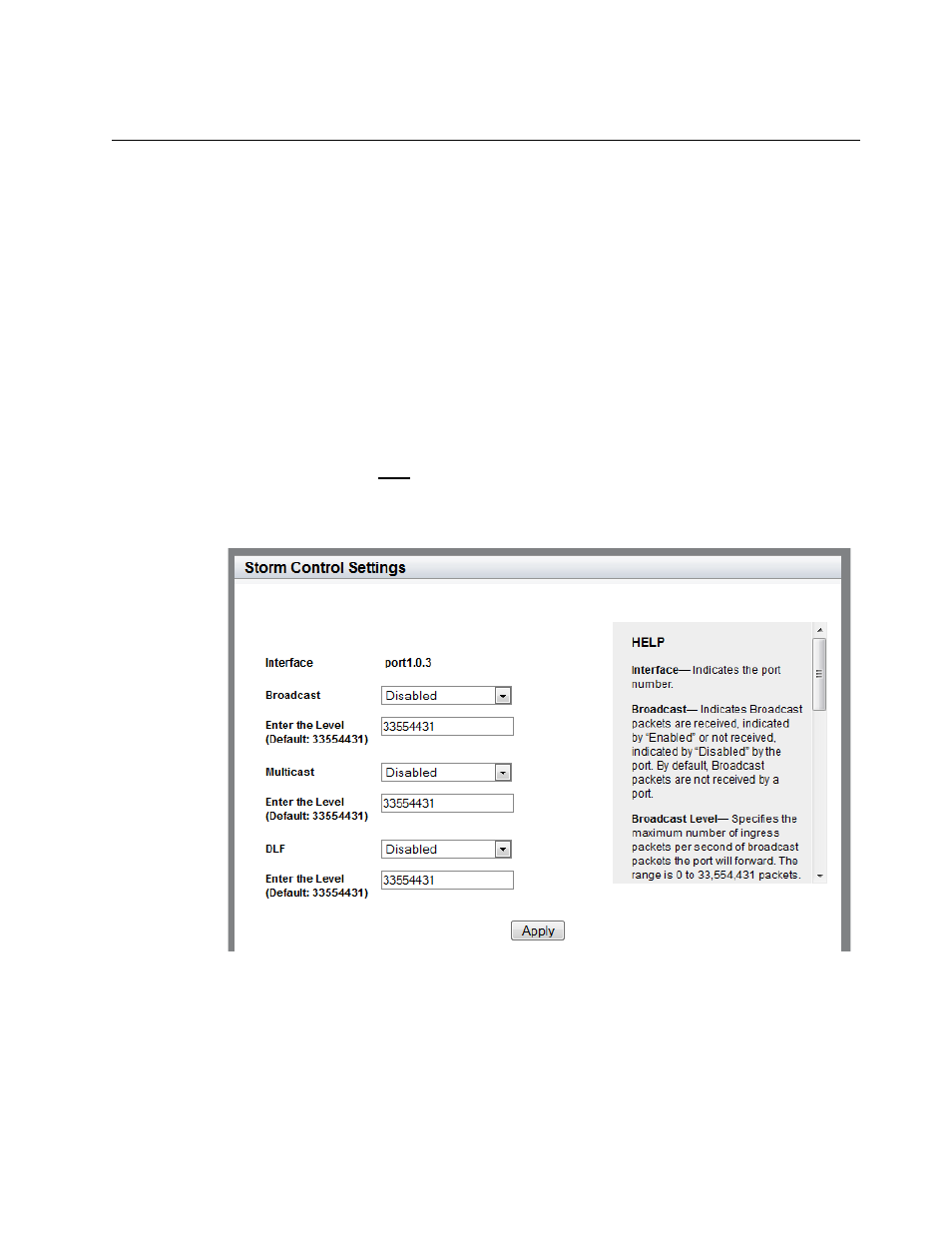

Figure 28. Storm Control Settings Page
