AT-8100 Series Version 2.2.5.0 Web Interface User’s Guide
87
Displaying Port Mirroring Settings
To display the port mirroring assignments for all of the switch ports, do the
following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 24 on page 65.
2. From the Switching tab, hover over Port.
The Port tab is displayed.
3. From the Port tab, move the cursor to the right and select Mirroring.
The Port Mirroring List page is displayed. See Figure 34.

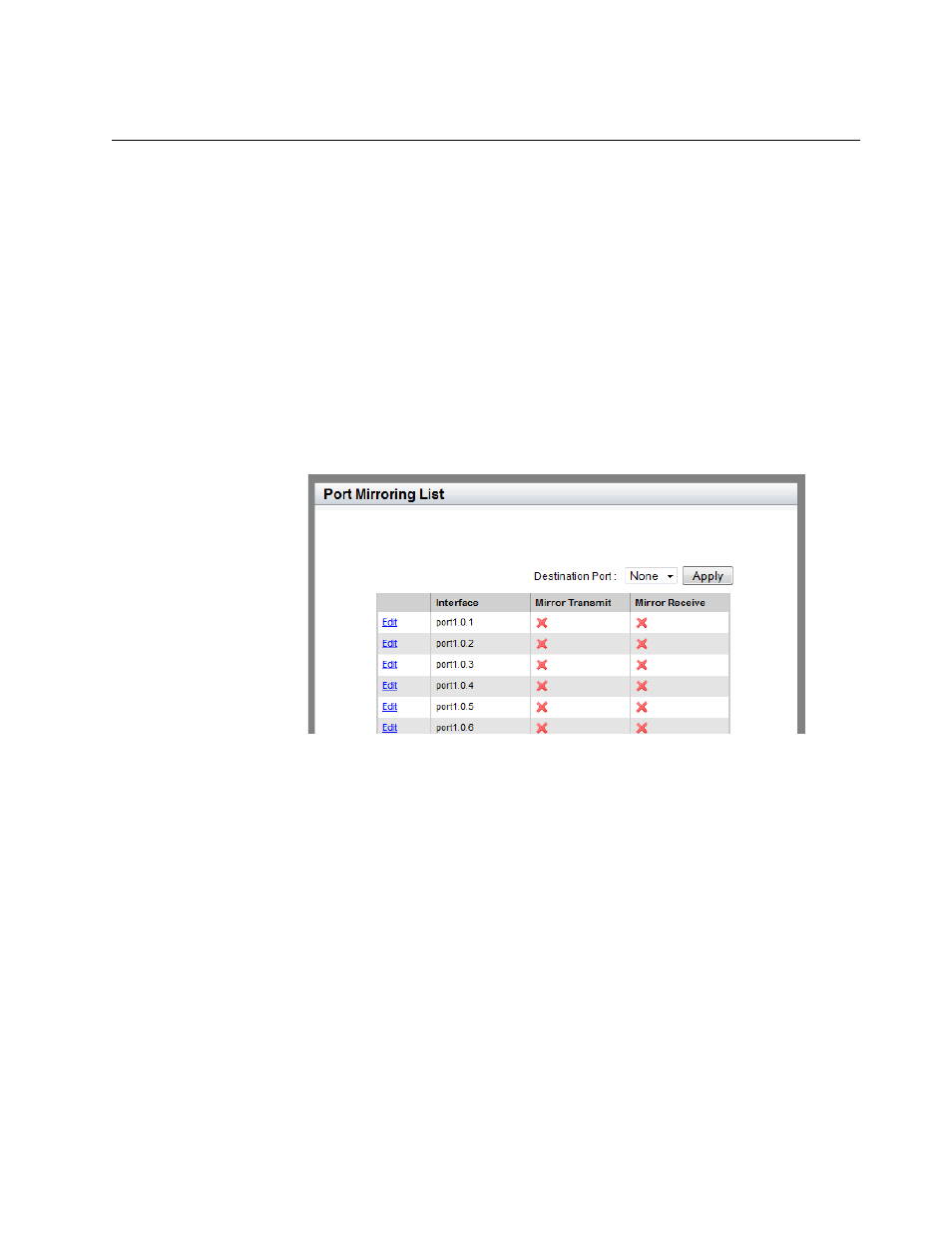

Figure 34. Port Mirroring List Page
The following fields are displayed:
 Destination Port— Use the pull-down menu to select the port
where the packets from the source ports are copied and where the
network analyzer is connected. You can assign only one
destination port to the switch.
 Interface— Port ID.
 Mirror Transmit— Source port whose transmitted (egress)
packets are mirrored and monitored. In this case, transmit is the
specified direction in which the packets are mirrored. There can be
multiple source ports on the switch.
 Mirror Receive— Source port whose received (ingress) packets
are mirrored and monitored. In this case, receive is the specified
direction in which the packets are mirrored. There can be multiple
source ports on the switch.
