Chapter 5: Setting Port Statistics
76
Displaying Port Statistics
You can display several types of port statistics. See the following sections:
 “Displaying Transmit and Receive Port Statistics” on page 76
 “Displaying Receive Statistics” on page 77
 “Displaying Transmit Statistics” on page 79
 “Displaying Interface Statistics” on page 80
Displaying
Transmit and
Receive Port
Statistics
To display the transmit and receive statistics for all of the switch ports, do
the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 24 on page 65.
2. From the Switching tab, hover over Port.
3. Move the cursor to the right and select Statistics.
The Port Statistics page is displayed with the Tx + Rx tab automatically
selected. See Figure 29.

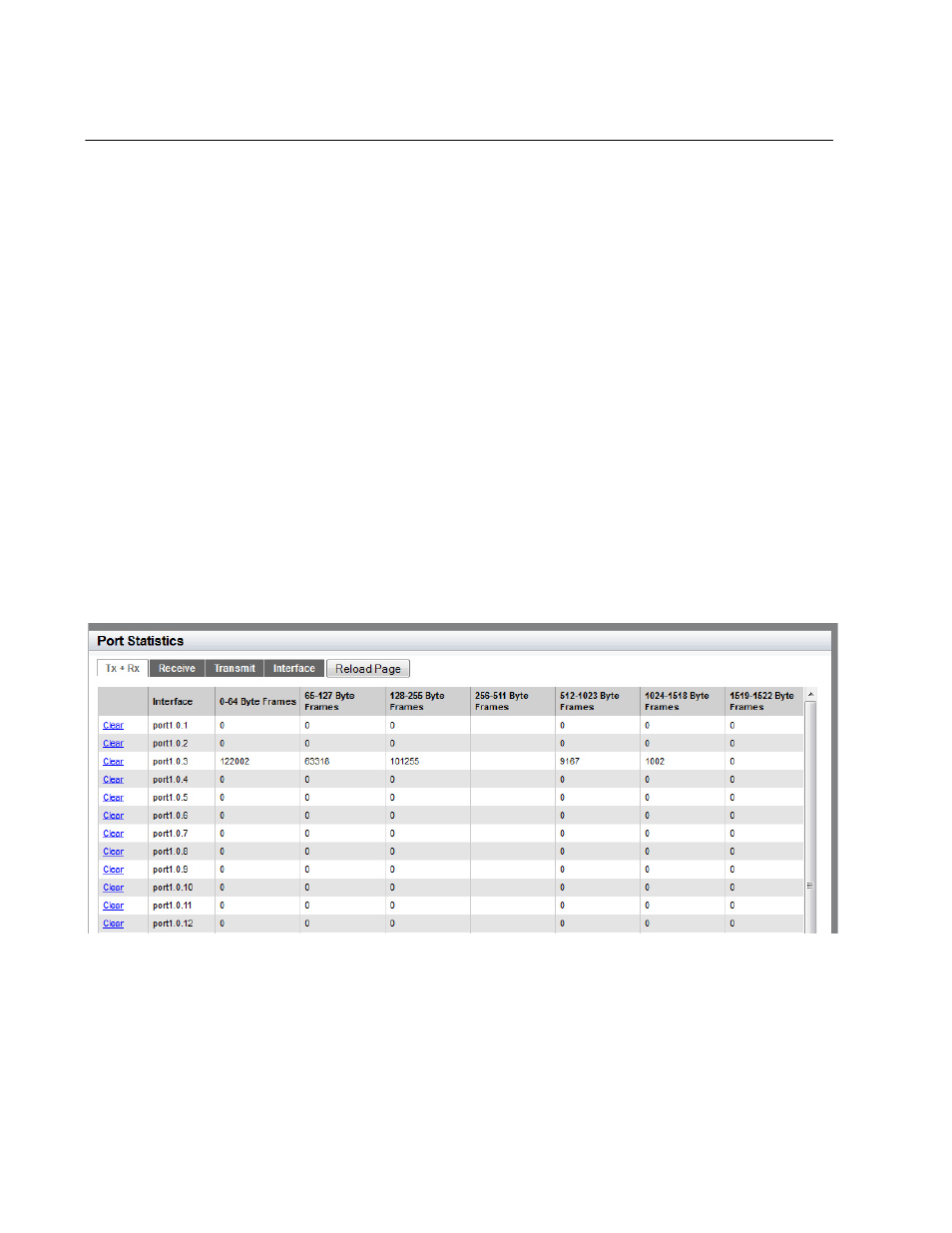

Figure 29. Port Statistics Page with Tx + Rx Tab
