AT-8100 Series Version 2.2.5.0 Web Interface User’s Guide
305

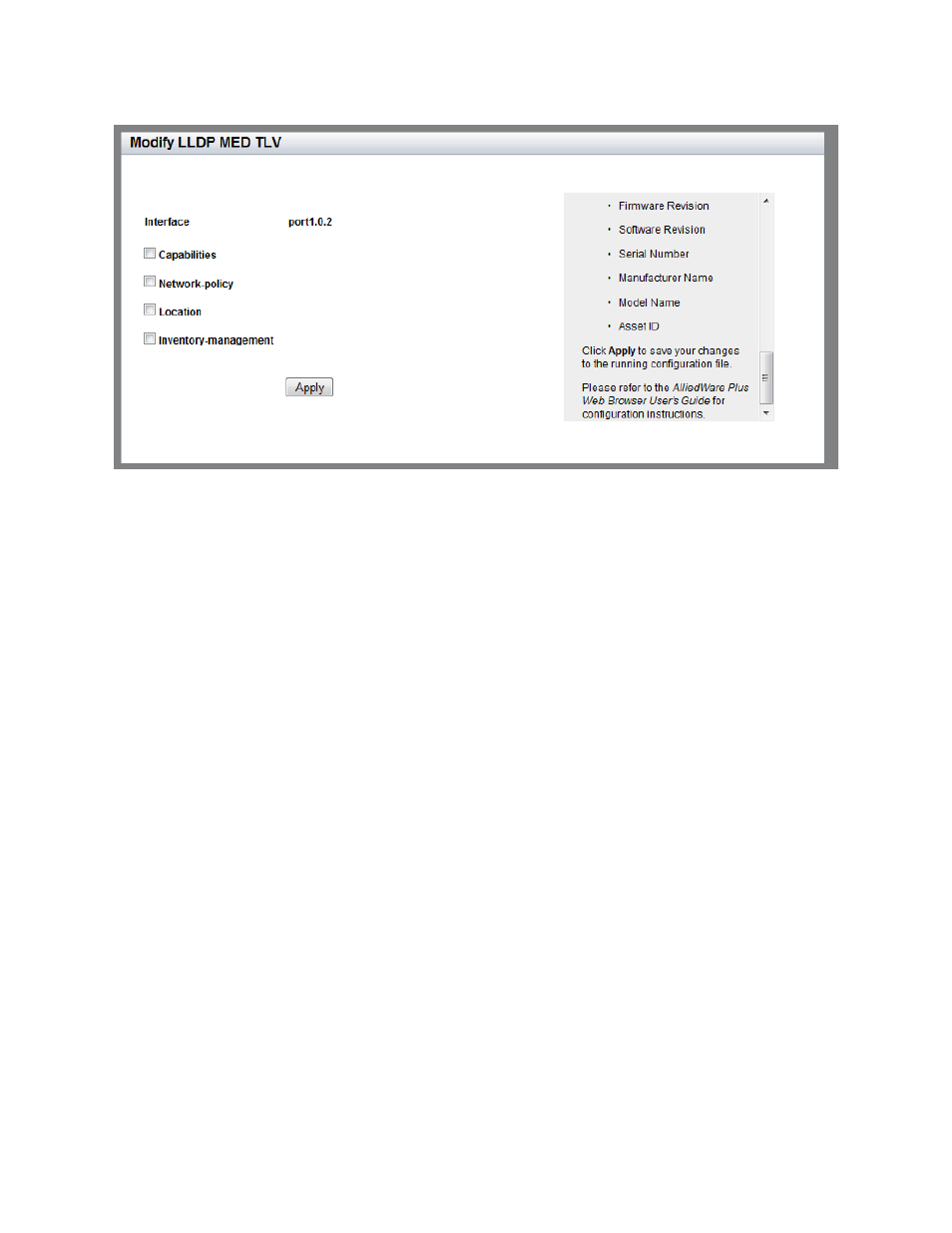

Figure 139. Modify LLDP-MED TLV Page
5. Change the fields as needed:
 Interface— Indicates the port ID.
 Capabilities— Check the checkbox to select the capabilities to be
included in LLDPDUs.
 Network-policy— Check the checkbox to select the network
policy TLV to be included in LLDPDUs. The network policy TLV
includes the network policy information specified on the port for
connected media endpoint devices. The switch supports
Application Type 1: Voice, including the following network policy for
connected voice devices to use for voice data:
- Voice VLAN ID
- Voice VLAN Class of Service (CoS) priority
- Voice VLAN Diffserv Code Point (DSCP)
 Location— Check the checkbox to select the location TLV to be
included in LLDPDUs. The location TLV is in one or more of the
following formats:
- Civic location
- Coordinate location
- Emergency Location Identification Number (ELIN)
