Chapter 4: Setting Port Parameters
64
Port Numbers on the Switch

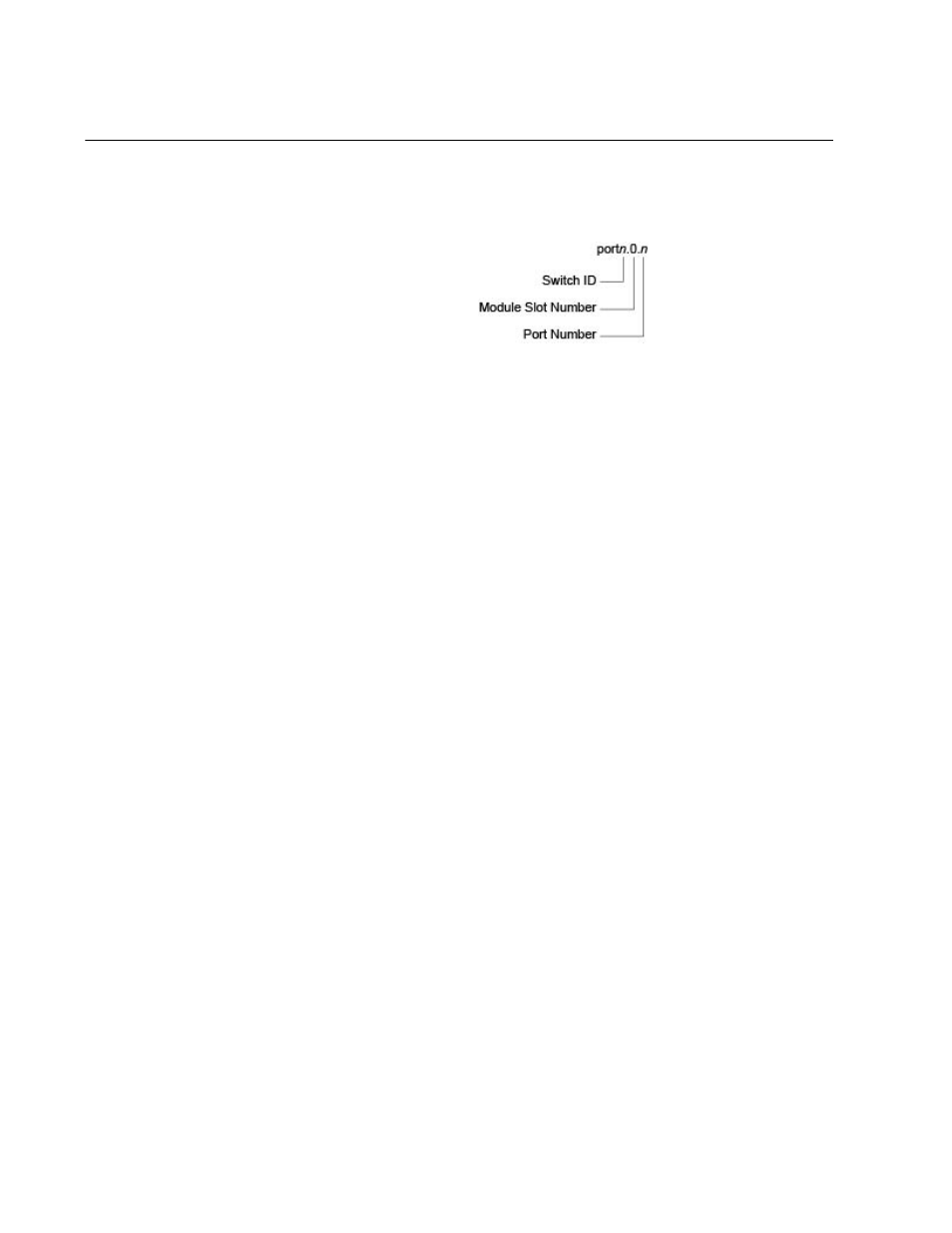

The ports on the switch are identified in the format shown in Figure 23.
Figure 23. Port Number
The variables in the parameter are defined here:
 Switch ID: When the switch is a stand-alone switch, the web interface
displays number 1 as the switch ID, even though the stand-alone
switch displays number 0 on the Stack ID LED. The format of the port
for stand-alone AT-8100 Series switches is PORT1.0.n.
 When the switch is part of a hardware stack, the web interface displays
the switch ID number that is displayed on the Stack ID LED.
 Module Slot ID: This number is used to identify a slot in a modular
switch. This number is always 0 for AT-8100 Series switches because
they are not modular switches.
 Port number: This is the port number.
