AT-8100 Series Version 2.2.5.0 Web Interface User’s Guide
65
Displaying the Port Parameters
To display the settings for all of the switch ports, do the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 24.

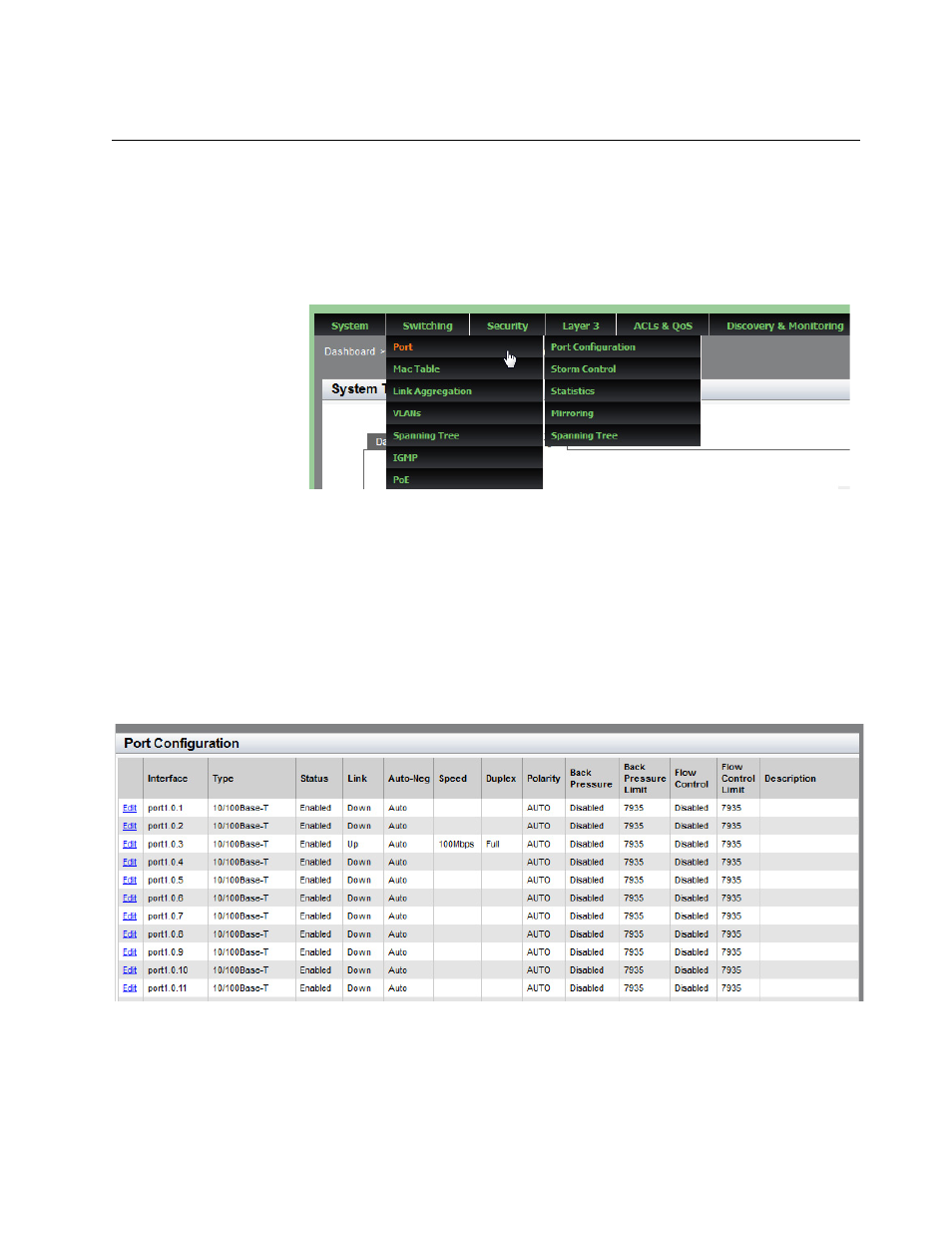

Figure 24. Switching Tab with Port Tab
2. From the Switching tab, hover over Port.
The Port tab expands to the right.
3. From the Port tab, move the cursor to the right and select Port
Configuration from the drop-down menu.
The Port Configuration page is displayed. See Figure 25.
Figure 25. Port Configuration Page
4. The following fields are displayed:
 Interface— Port ID.
