Chapter 2 – System Board 2-17
2.9 Removing a Pentium III Processor
Follow these steps to remove the Pentium III processor module from the slot.
1. Remove the fan and temperature connectors (see Figure 2-2 and Table 2-2):
CPU1 fan connector – CN20
CPU1 temperature connector – CN16
CPU2 fan connector – CN9
CPU2 temperature connector – CN10
2. Unlock the latches that secure the processor module.

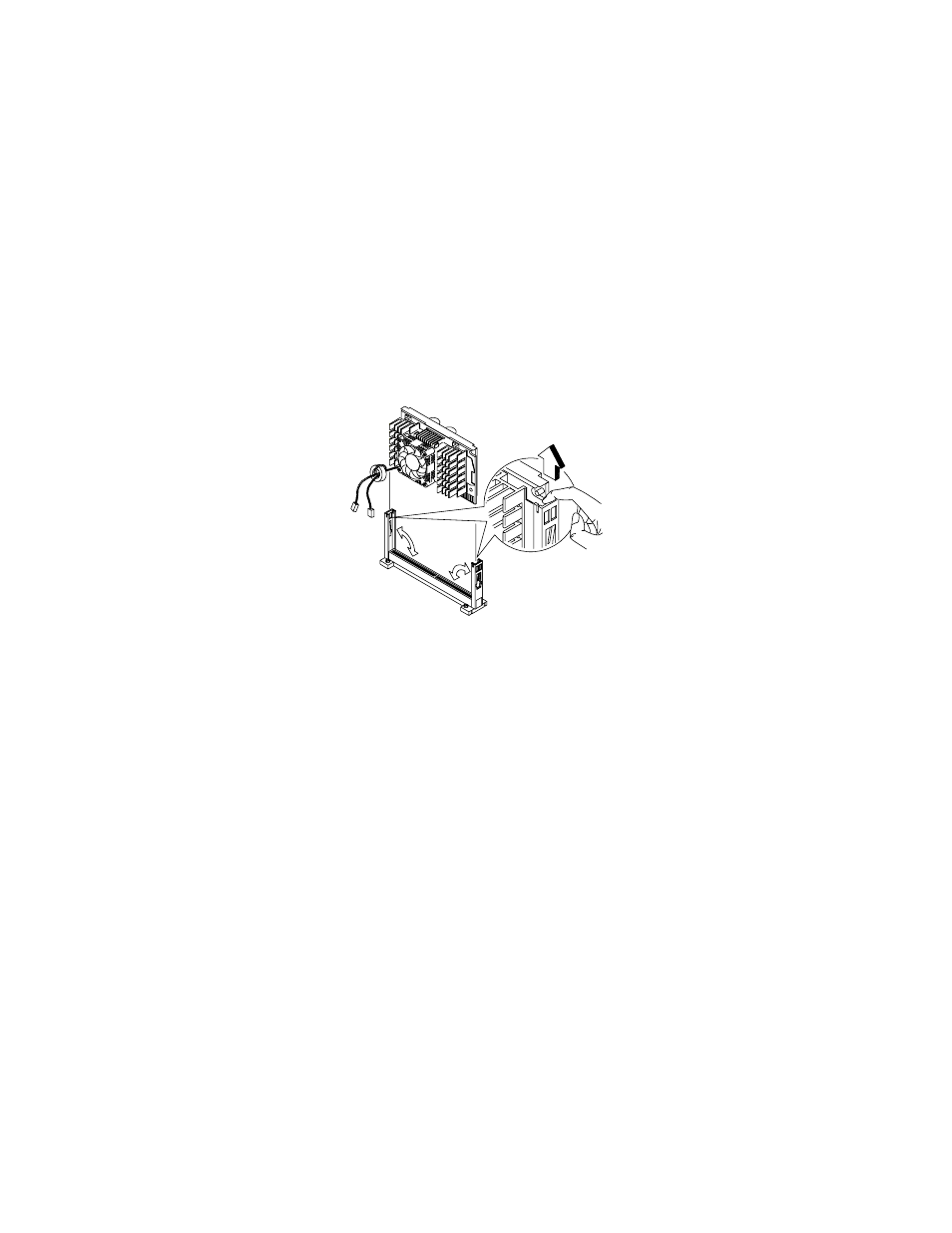

Figure 2-5 Unlocking the Module Latches
2. Firmly hold the processor module and pull it out of the socket.
