Page 51: 4 jumpers and connectors
Chapter 2 – System Board
2-5
2.4
Jumpers and Connectors
This section describes the jumper and connector locations and settings.
2.4.1
Jumper and Connector Locations

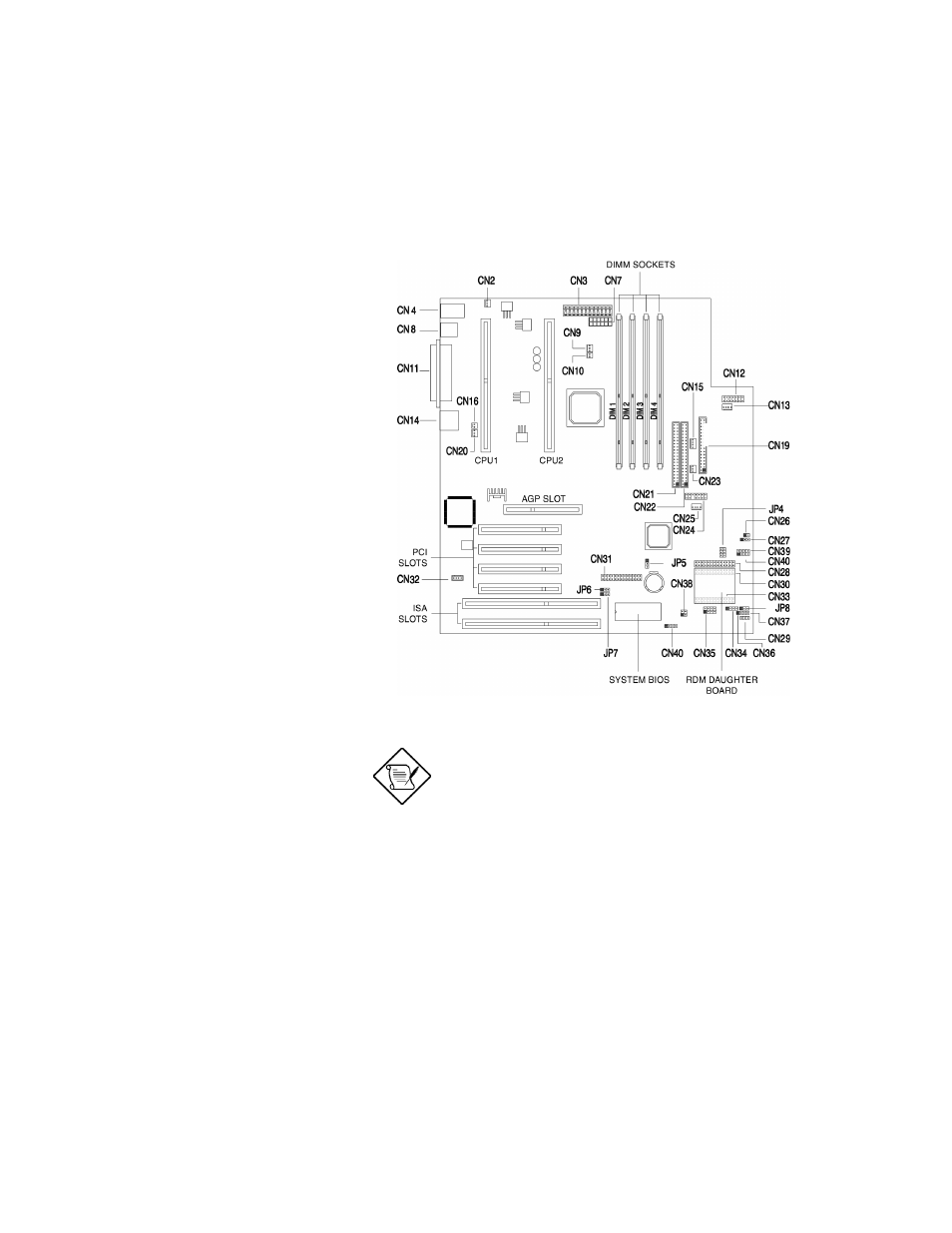

Figure 2-2 shows the jumper and connector locations on the system board.
Figure 2-2 System Board Jumper and Connector Locations
Jumpers are prefixed “JP”. Connectors are
prefixed “CN”. The blackened pin of a jumper
or connector represents pin 1.
