Optional Modules
Power Supply Module
The mains power connection may be connected to the power supply
module only by an authorized electrician. A readily accessible disconnect
device shall be incorporated in the fixed wiring.

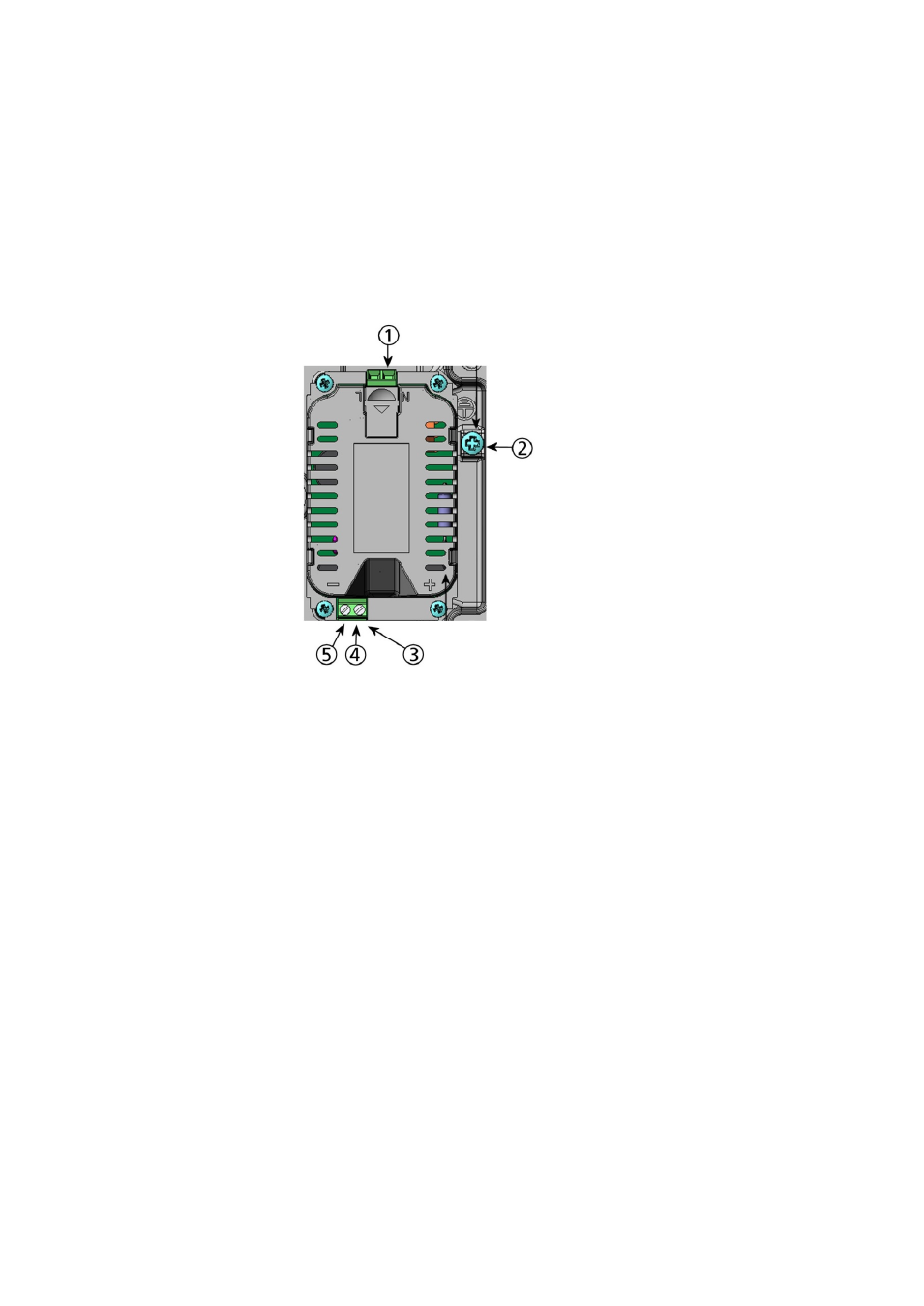

0605-030
Figure 28
Power Supply Module
The following numbers refer to Figure 28 above:
1
= Connect AC mains voltage wires to these terminals
2
= Grounding terminal
3
= In case the module is not installed in the factory: Connect wires
from these terminals to the POWER 10 ... 35V 24V terminals of
the motherboard.
4
= +
5
= –
