NOTE
When measuring temperature-dependent quantities, make sure that the
temperature at the measurement point is equal to that of the process;
otherwise, the moisture reading may be incorrect.
0604-022

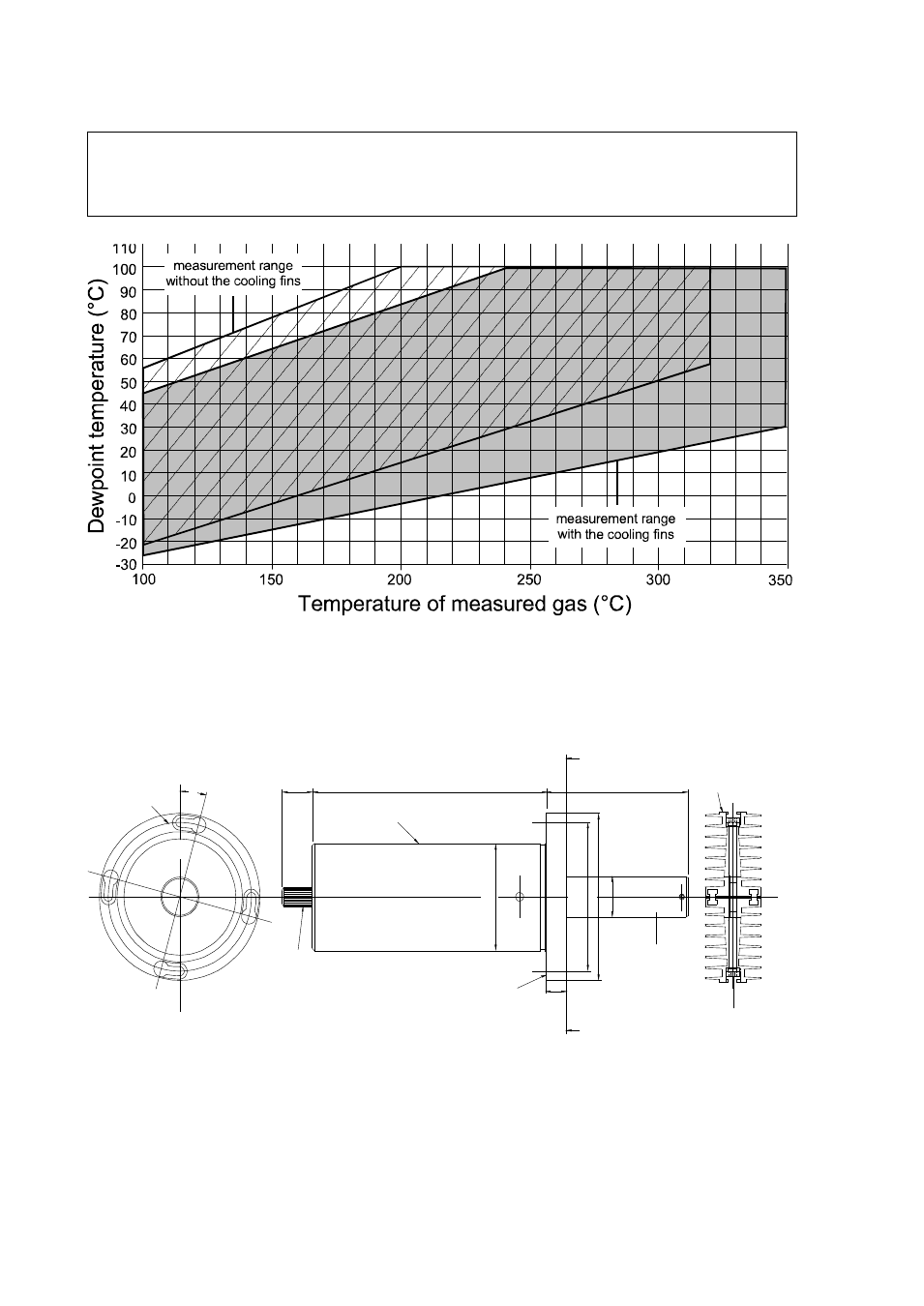

Figure 19
Measurement Ranges with and without the Cooling
Fins
Parts of the Cooling Set
0604-023
Figure 20
Parts of the Cooling Set (Dimensions in mm)
flange
flange
15°
22
172
A
A
SECTION
A-A
cooling
bush
screen
tube
104.5
cooling
profile
M6×60 DIN912
(AISI 316)
15
ø7
6
cooling
bar
ш2
8
ш
118
ш
105
