CHAPTER 3
INSTALLATION
This chapter provides you with information that is intended to help you
install this product.
Selecting Location
Finding a suitable site for the dewpoint measurement probe is important
for getting representative process or environmental measurements. The
location of the probe should provide a good representation of the area of
interest. Also select a location that is as clean as possible. Air should
circulate freely around the sensor.
Mounting the Housing
The housing can be mounted either without the mounting plate or with
optional mounting plates.
Standard Mounting without Mounting
Plate
Mount the housing without the mounting plate by fastening the
transmitter to the wall with 4 screws, for example, M6 (not provided).
0804-066

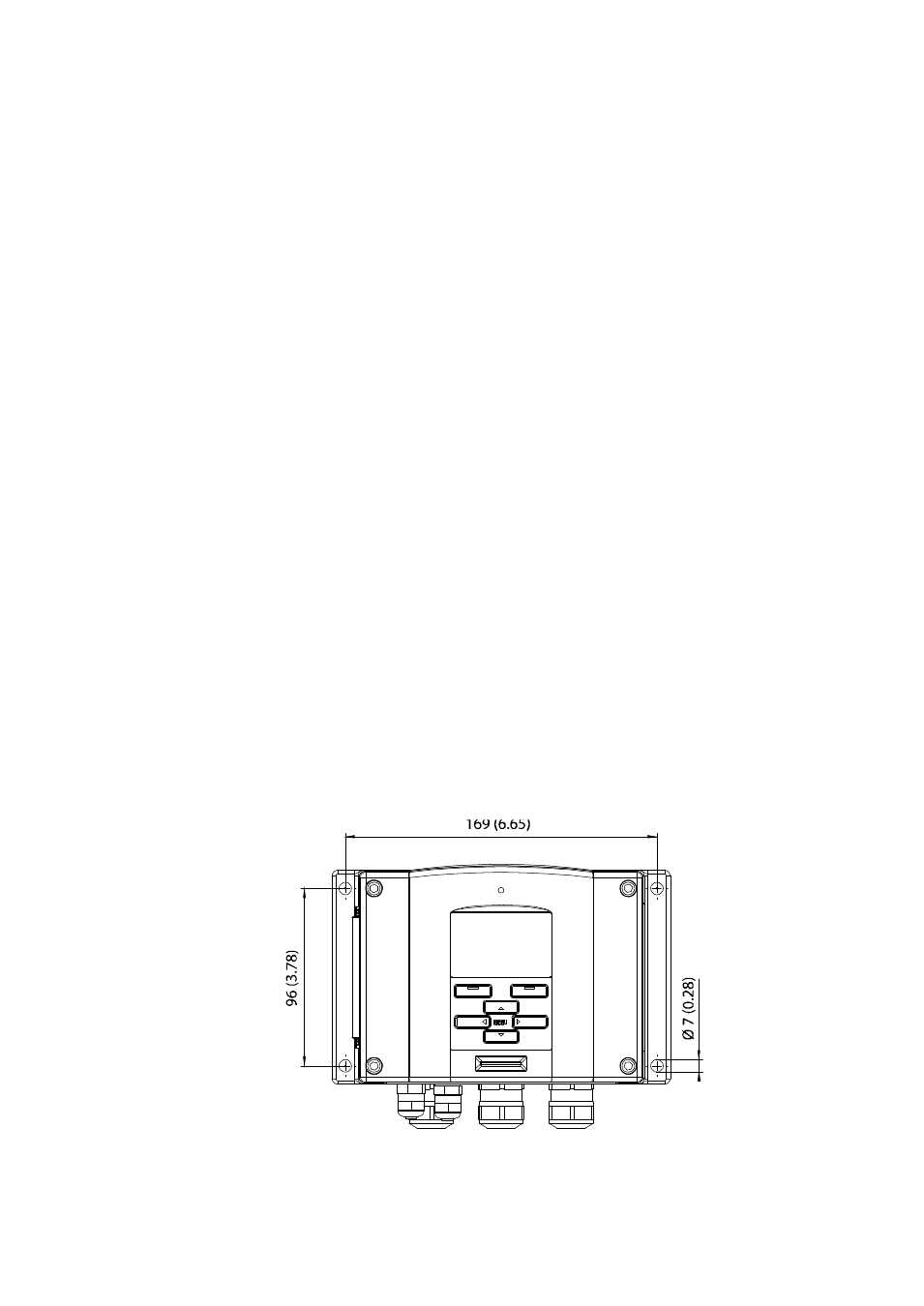

Figure 4
Standard Mounting
