Pole Installation with Installation Kit for
Pole or Pipeline
Installation kit for pole or pipeline (Vaisala order code: 215108) includes
the metal mounting plate and 4 mounting nuts for pole mounting. When
mounting, the arrow in the metal mounting plate must point upward, see
Figure 7 on page 27.
0604-014

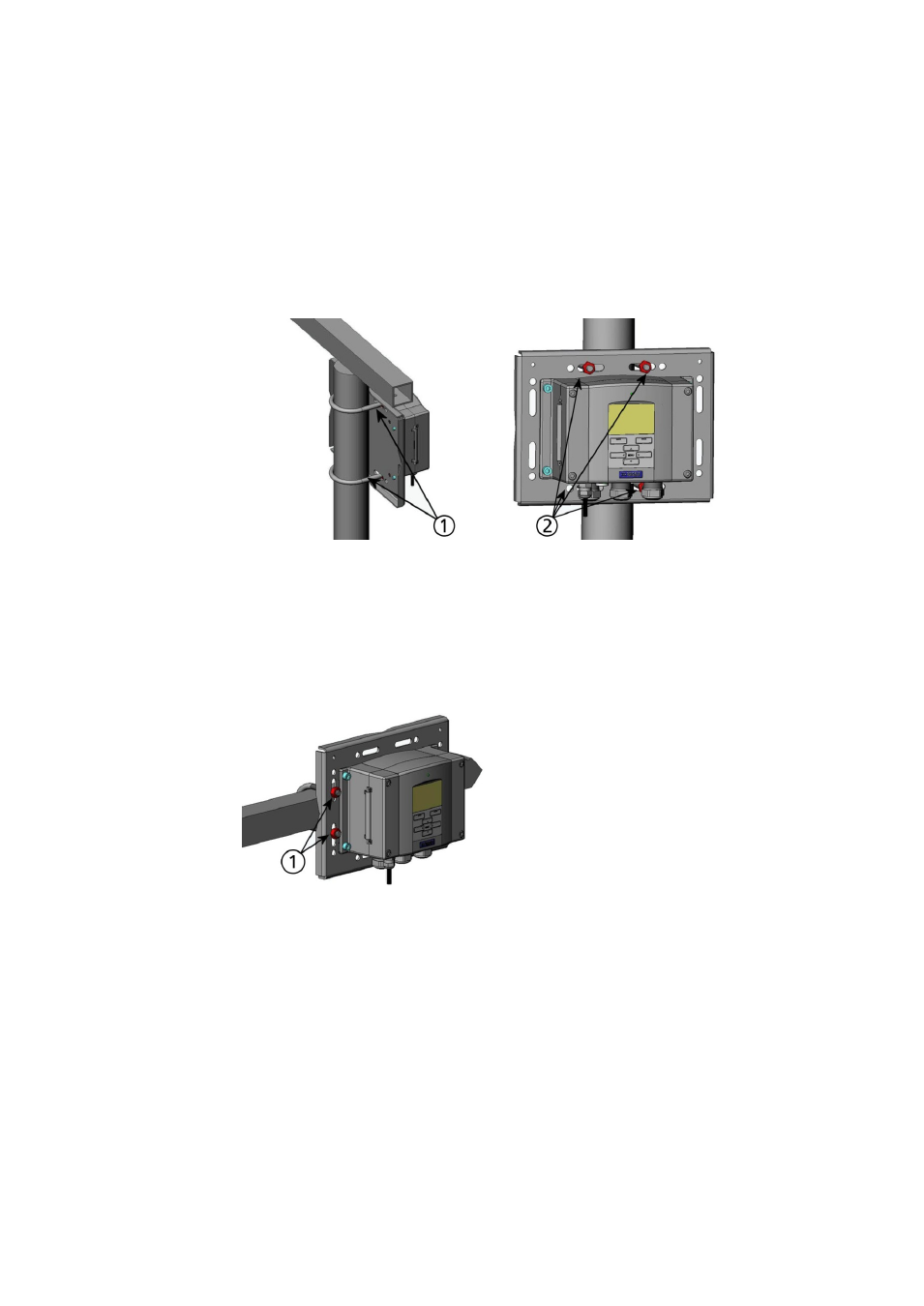

Figure 10
Vertical Pole Installation
The following numbers refer to Figure 10 above:
1
=
U-bolts (2 pcs) M8 (provided) for 30 ... 102 mm poles.
2
=
Mounting nuts M8 (4 pcs)
0604-015
Figure 11
Horizontal Pole Installation
The following numbers refer to Figure 11 above:
1
=
Mounting nuts M8 (4 pcs)
