Mounting Rain Shield with Installation Kit
The rain shield is highly recommended for outdoor installations,
especially for transmitters with the display/keypad option.
0604-016

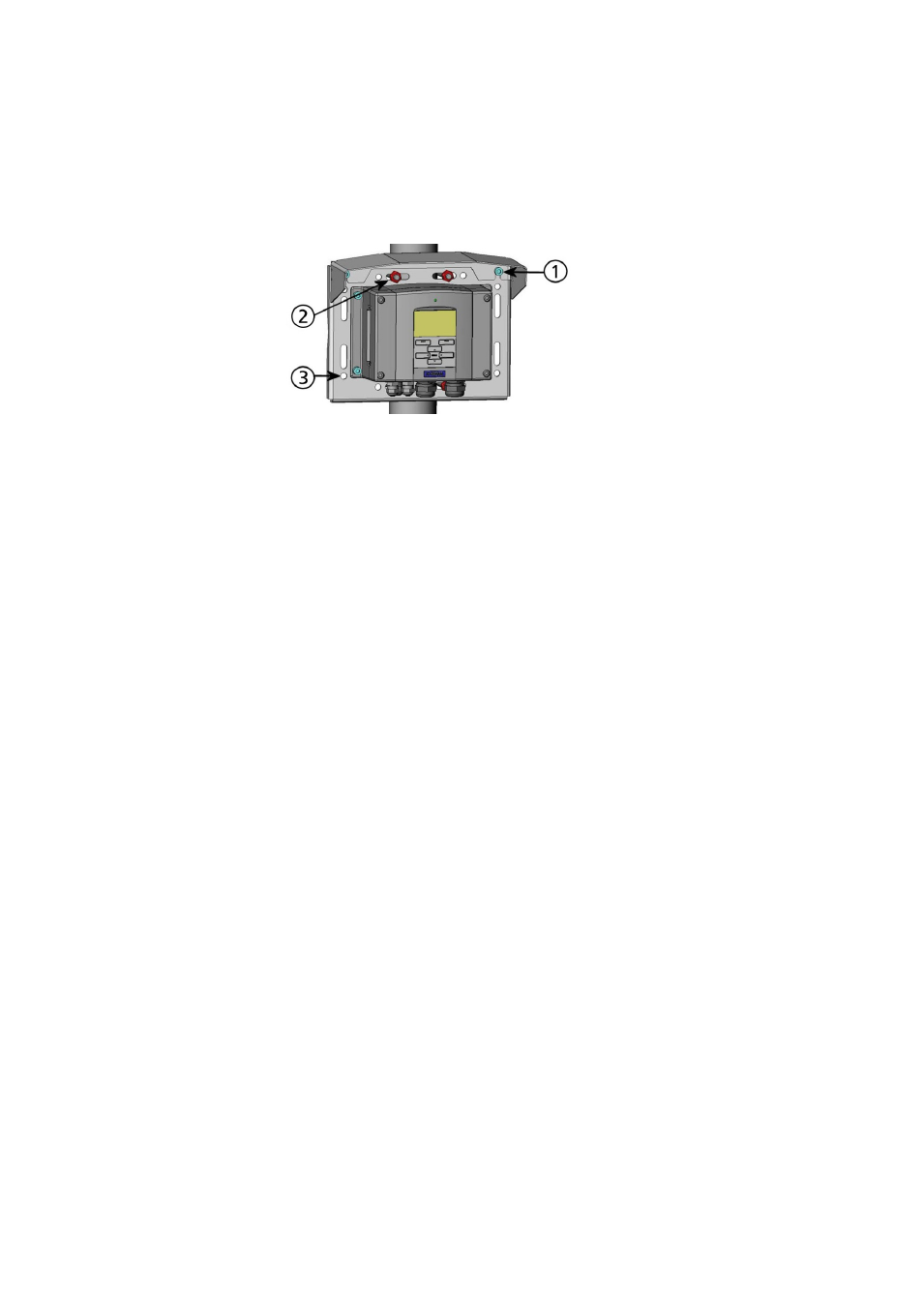

Figure 12 Mounting the Rain Shield with Installation Kit
The following numbers refer to Figure 12 above:
1 = Fasten the rain shield with the installation kit (Vaisala order
code: 215109) to the metal mounting plate with 2 (M6)
mounting screws (provided)
2 = Fasten the mounting plate with rain shield with installation kit to
the wall or to the pole (see pole installation)
3 = Fasten the transmitter to the mounting plate with 4 fixing screws
(provided)
Panel Mounting Frame
To enable a neat and dirt free embedded installation of the transmitter, a
panel mounting frame is available as an option (Vaisala order code:
216038). The frame is a thin, flexible plastic frame for the transmitter,
with adhesive tape on one side.
The frame is used to hide any rough edges of the installation hole, and
provide a more finished look. Note that the panel mounting frame is not
intended to bear the weight of the transmitter, and does not include any
mounting supports.
Use the panel mounting frame as follows:
1. Use the frame as a template to mark the required size for the
installation hole in the panel.
2. Cut the hole in the panel.
3. Mount the transmitter through the panel with suitable supports.
4. Remove the paper protecting the adhesive tape on the frame, and
attach the frame around the transmitter. Refer to Figure 13 on page
32.
