Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 33
DMT345 Probe Mounting
0604-018

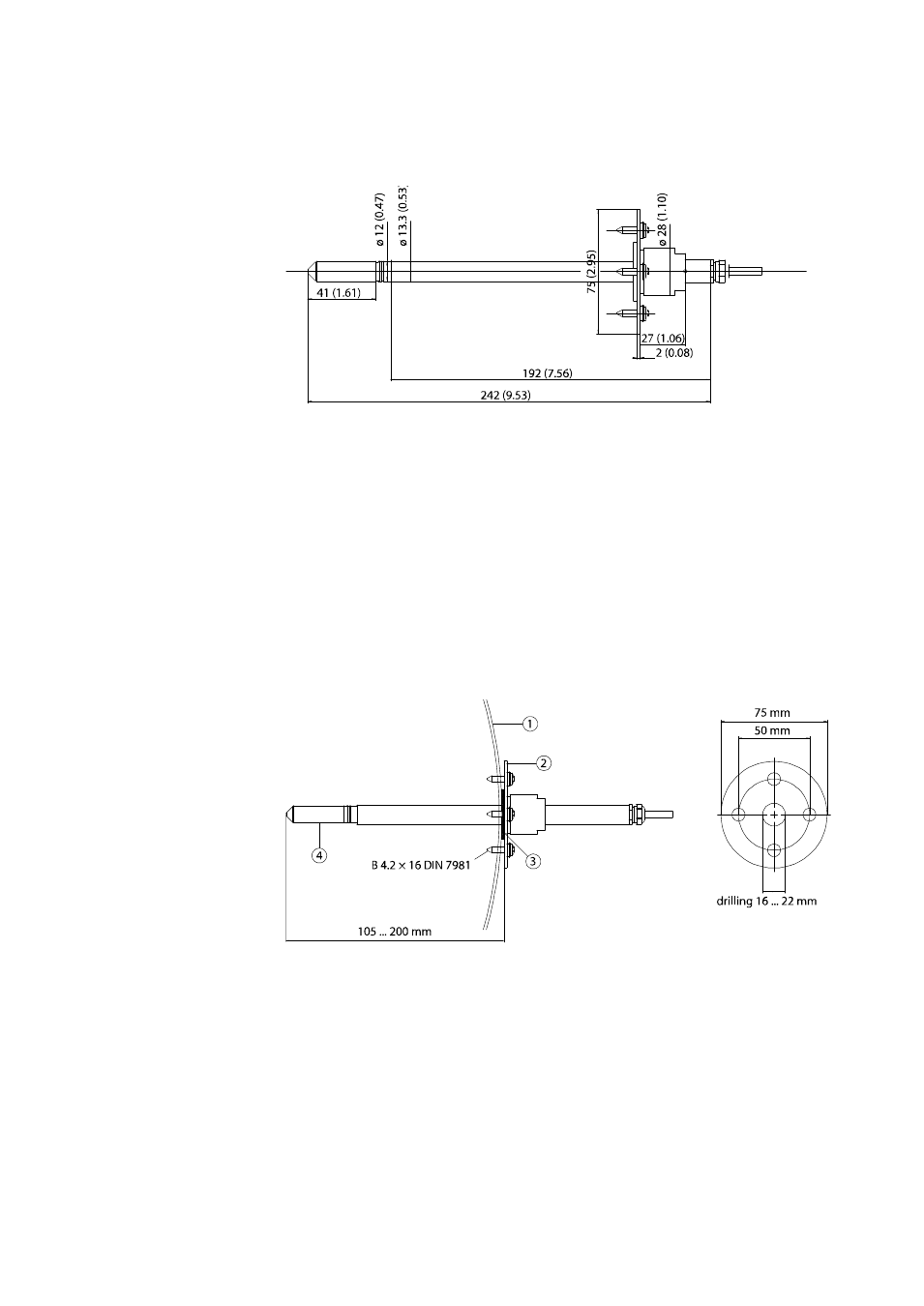

Figure 15
DMT345 Probe Dimensions (mm/inch)
Installation with Flange
The DMT345 is a small size (d = 12 mm) general purpose probe suitable
for installation through process or duct walls with the flange installation
kit available from Vaisala.
The duct installation kit includes a flange, a sealing ring and screws for
attaching the flange to the process or duct wall (Vaisala order code:
210696).
0604-019
Figure 16
Flange Installation Kit
The following numbers refer to Figure 16 above:
1
=
Process or duct wall
2
=
Flange
3
=
Sealing ring
4
=
Probe
