Mounting
Wall Mounting
1.
Remove the transmitter cover. See section Opening the Transmitter
2.
Make sure that the HMT120 Humidity and Temperature
Transmitter is correctly aligned and attach it directly to the wall
with up to four screws (not included in the package).
1011-149

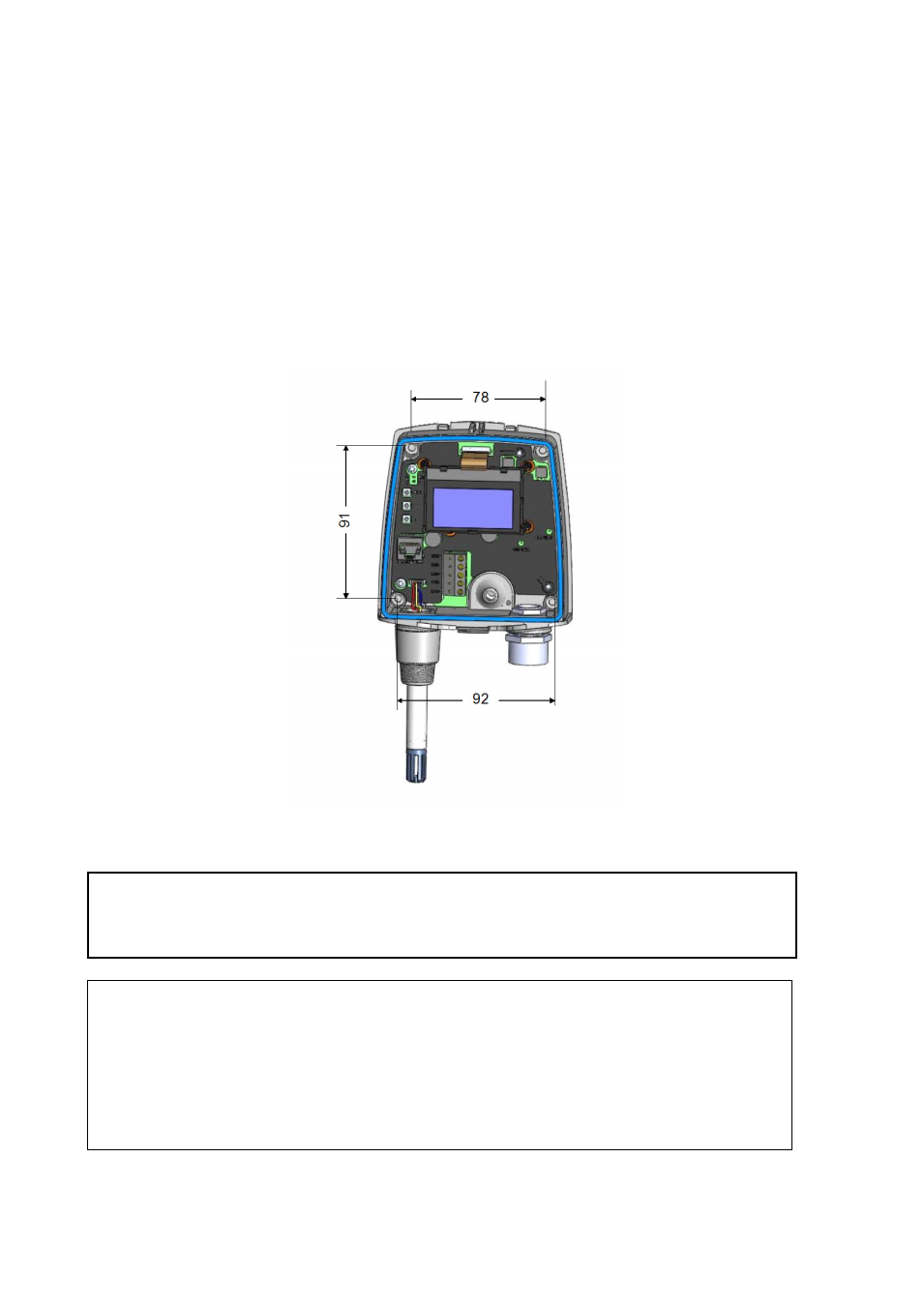

Figure 3
HMT120 Wall Mounting
CAUTION
It is possible to damage the display when tightening the screws, as there
is not much room between the upper fastening holes and the exposed
display component. Be particularly careful when using a cordless drill.
NOTE
Select the size and type of the fastening screws according to the wall
material (for example, wood or stone). Even though using all four screws
is strongly recommended, the HMT120 enclosure fastening holes are
initially covered with a thin plastic membrane, so less than four screws
could be also be used without sacrificing the ingress protection (IP) class
of the enclosure. The diameter of the fastening screws is typically
between 3.5 and 4 mm.
