Atmel SpaceWire Router SpW-10X - Manual (Page 22)

Ref.: UoD_SpW-10X_
UserManual
Issue: 3.4
SpW-10X
SpaceWire Router
User Manual Date: 11 th
July 2008
Preliminary
22
E xt ernal Po rt
O utput FI FO
Input F IFO
Cros sb ar
Sw it ch
Co nt rol
L og ic Rou ti n g
Tab le
Ti m e-Cod e
In t erface
Co nfi gu rati on
Po rt
Stat us /E rror
Regi st ers
SpaceWi re
Po rt 1
SpaceWi re
Po rt 2
SpaceWi re
Po rt 3
SpaceWi re
Po rt 4
SpaceWi re
Po rt 5
SpaceWi re
Po rt 6
SpaceWi re
Po rt 7
Con tro l
Regi st ers
SpaceWi re
Po rt 8
Spa ce Wire
Inter fac es
Exte rna l
Input/Outp ut
S tatus
Outputs
Time -C ode
Inputs /
Outputs
E xt ernal Po rt
O utput FI FO
Input F IFO Exte rna l
Input/Outp ut

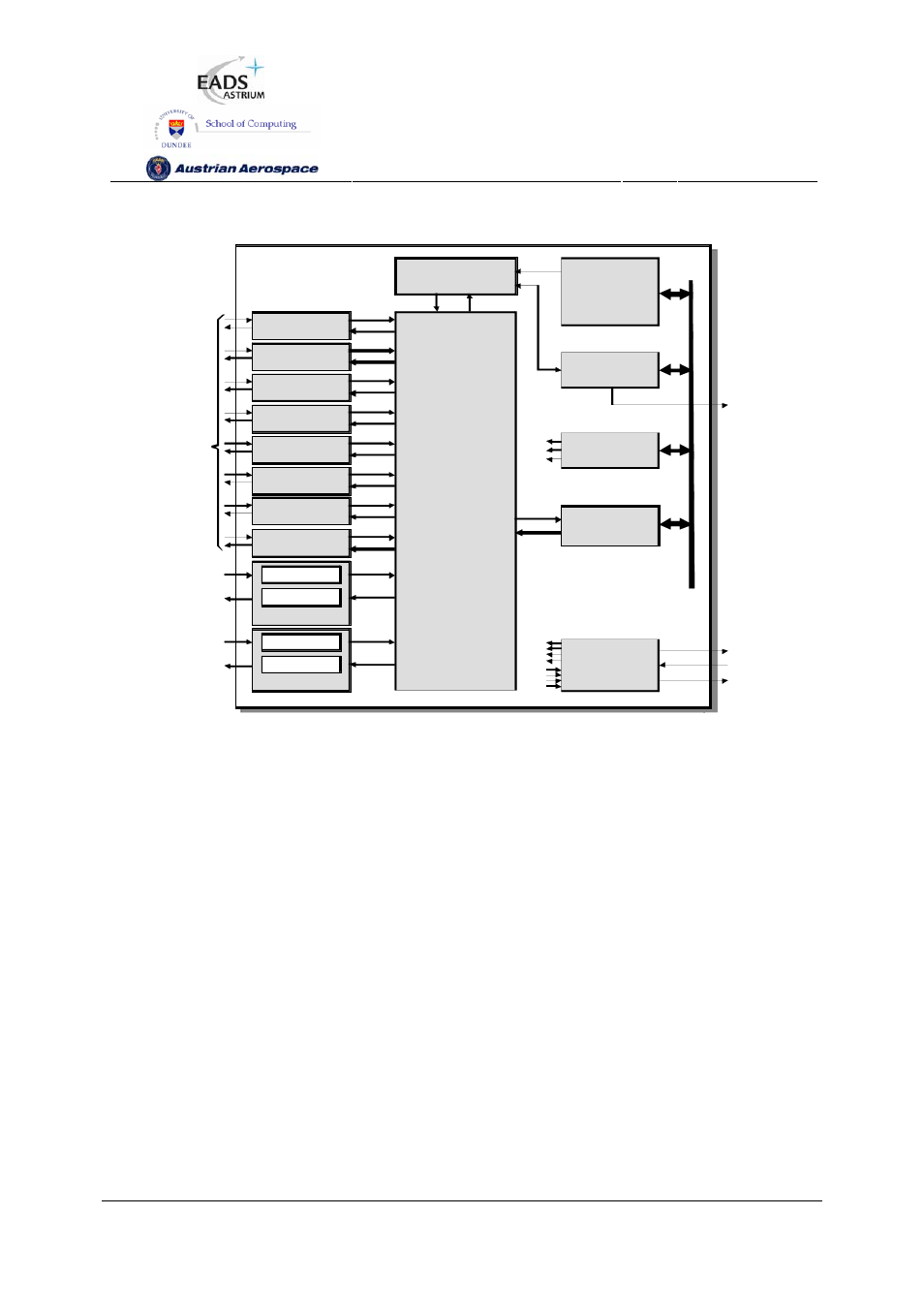

Figure 3-1 SpaceWire router block diagram
The following paragraphs define the SpaceWire router functional logic blocks in more detail.
3.1 SPACEWIRE PORTS
The SpaceWire router has eight bi-directional SpaceWire links each conformant with the SpaceWire
standard. Each SpaceWire link is controlled by an associated link register and routing control logic.
Network level error recovery is performed when an error is detected on the SpaceWire link as defined
in the SpaceWire standard. Packets received on SpaceWire links are routed by the routing control
logic to the configuration port, other SpaceWire link ports or the external FIFO ports. Packets with
invalid addresses are discarded by the SpaceWire router dependent on the packet address. The
SpaceWire link status is recorded in the associated link register and error status is held by the router
until cleared by a configuration command.
3.2 EXTERNAL PORTS
The SpaceWire router has two bi-directional parallel FIFO interfaces that can be used to connect the
router to an external host system. The external port FIFO is two data characters deep. Each FIFO is
