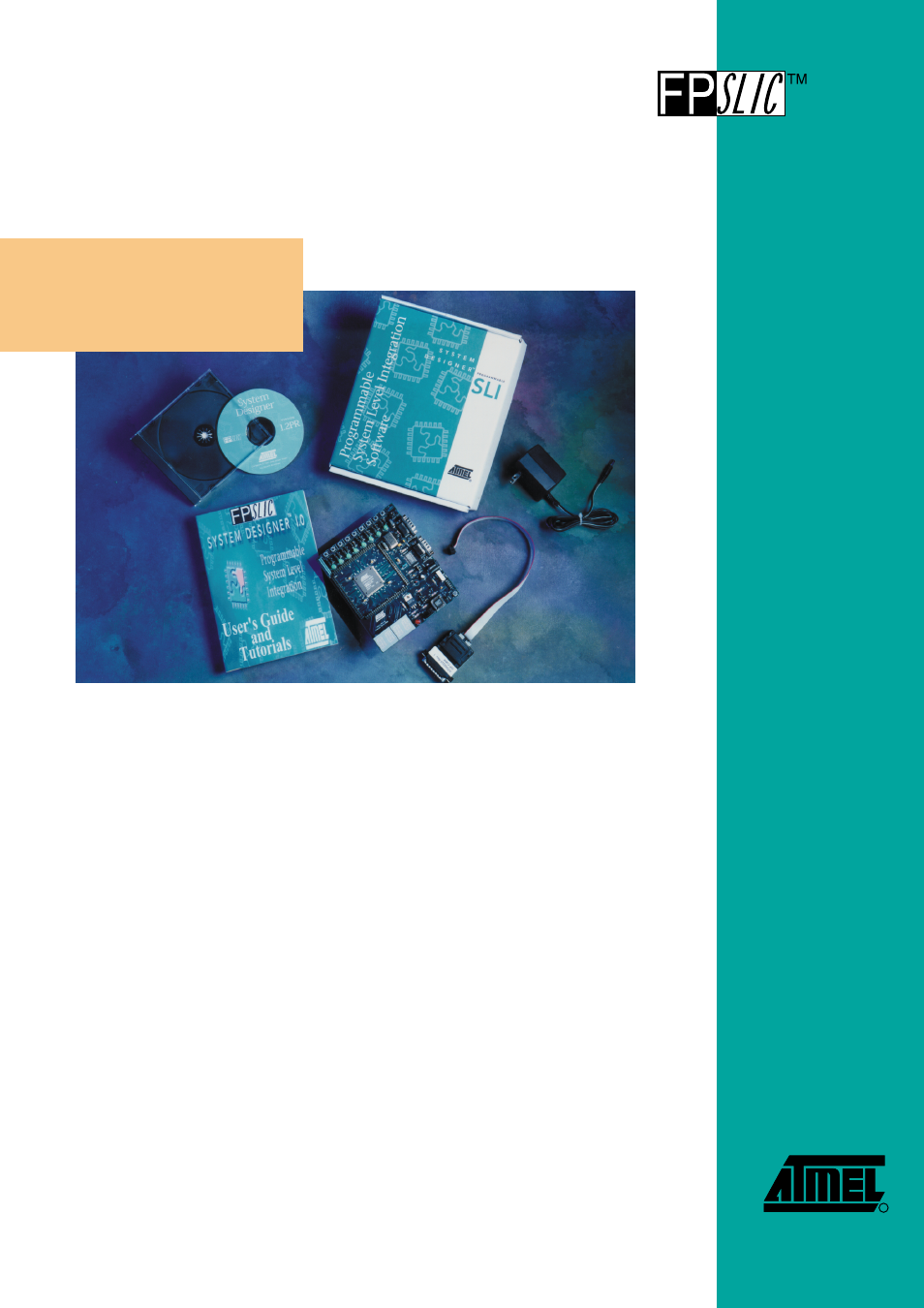

Atmel offers a low-cost development kit for the designer who wishes to begin
working with the award-winning FPSLIC™ (AT94K) family of devices. The kit
allows designers to design, synthesize, simulate and program Atmel’s new
FPSLIC product. A comprehensive tutorial takes designers through the
complete FPSLIC development process. The starter kit, which runs on PC
Windows
® -based platforms, includes everything needed to get started with
FPSLIC, including all software, tutorials, complete documentation, boards,
parts and cables. The kit consists of a starter kit board that includes:
•
AT94K40AL Device
•
AT17LV010 Device
•
AT17 Series ISP Port for Direct ISP
Download from PC
•
Push-button Switches and LEDs
•
Four Alphanumeric LED Displays
•
Two RS232 Transmit/Receive Ports
•
18.432 MHz, 4 MHz and 32 kHz
Clock Sources
•
Power Management Circuitry (Direct
Plug-in-wall 9-volt Power Supply to
Board – Supplied to US Customers)
•
Easy Access to All FPSLIC Pins via
Headers
•
Push-button FPSLIC Reset
•
ATDH2225 Configurator Programming
Cable for Rapid AT17LV010 In-System
Programming
•
The System Designer™ Software
(4-month License)
