set a glitch may occur on data and strobe, see Figure 13-3. A simultaneous transition or glitch on data
and strobe may occur when reset is released, Figure 13-4.

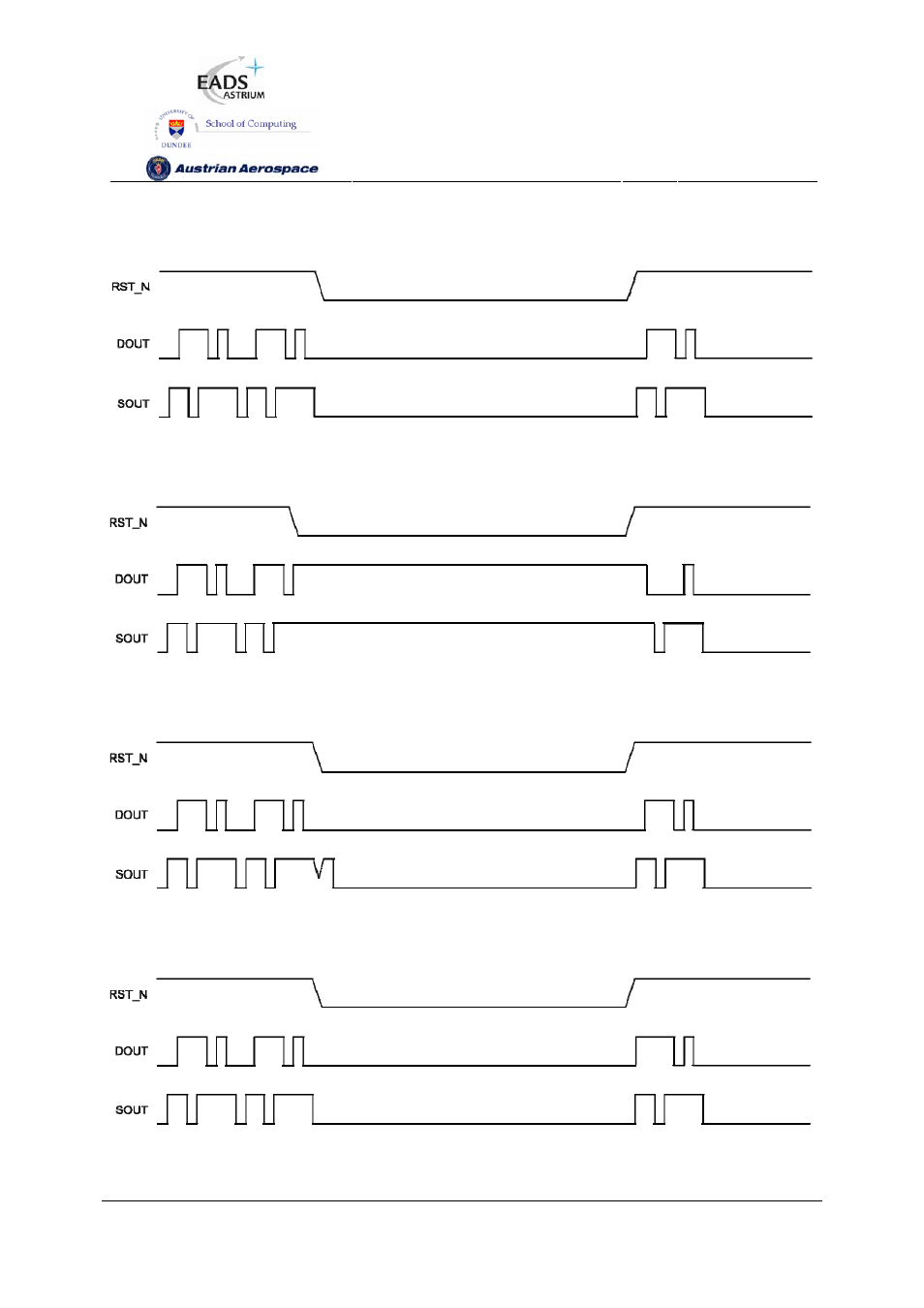

Figure 13-1 Reset Waveform
Figure 13-2 Reset Waveform with Data and Strobe Both High
Figure 13-3 Glitches on Data or Strobe during Reset
Figure 13-4 Simultaneous Transition of Data and Strobe during Reset
