Before operating FreeStyle 5 for the first time, familiarize yourself with the major
components. These are illustrated in the figures on the following pages and
discussed later in the manual.
Battery Charging
Check to make sure your unit’s battery is fully charged before venturing out with
FreeStyle 5 for the first time or upon subsequent use. To check the level of
charge of the internal battery, press the BATT button on FreeStyle 5’s keypad.
The battery gauge/indicator(s) LEDs above the BATT button illuminate to indicate
the level of internal battery charge (25-100%). Note: The internal battery is
charging whenever the unit is operating on AC or DC power. To charge
FreeStyle 5’s internal battery, simply connect its AC power supply or DC power
supply into the unit’s power connection inlet (as shown in Figure 7). Be certain to
first properly align the power cord to this inlet. To do this, take note of the “D”-
shaped plug of both the power cord connector and the FreeStyle 5’s inlet
connection. These must be properly aligned and when removing the power cord,
the release button must be pressed to remove it from the FreeStyle 5 unit. This
ensures that neither the unit nor the power accessories are damaged.

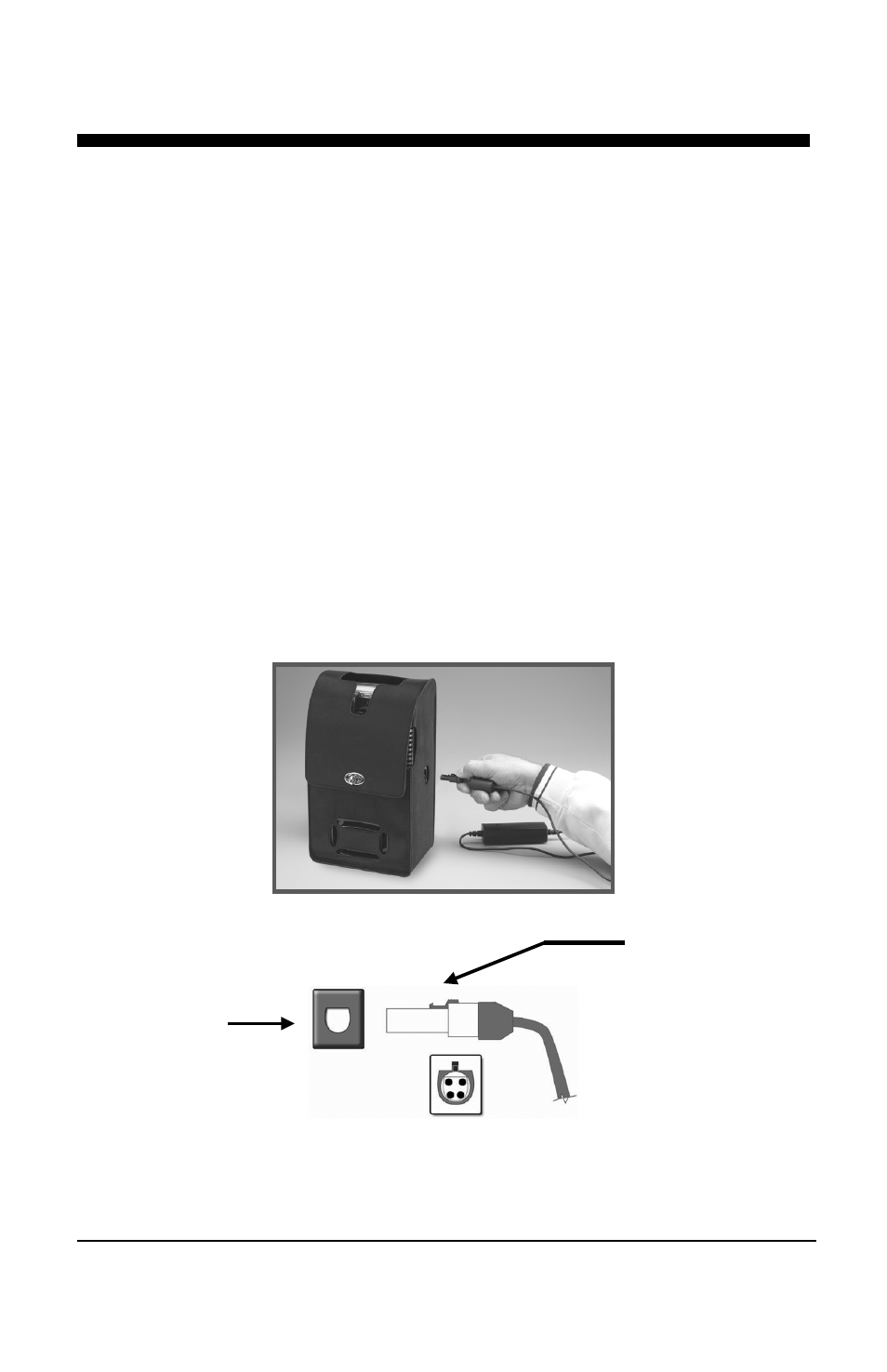

Figure 7: Internal Battery Charging
FreeStyle 5 unit’s
Power Inlet
Press to remove
power cord.
