ParaDyme System. The Steer Left, Steer Right and Center Wheels buttons engage the ParaDyme
system and do something different in each tuning screen. Their specific function will be addressed
when each screen is discussed.
How to use the information on the graph for adjusting a particular parameter?
Watch the blue line and compare it to the dark gray. Figure 5 shows some samples of what to look for
in the graph. Use this information and how the vehicle visually is performing on the ground to
determine whether to increase or decrease a specifically parameter. Increasing a parameter will make
the parameter more aggressive and decreasing will make the parameter less aggressive or lazier.
NOTE: For each parameter the graph may react differently, but the result is the same, to compare
ParaDyme's actual performance, the blue line, to the desired performance, the thick grey line.

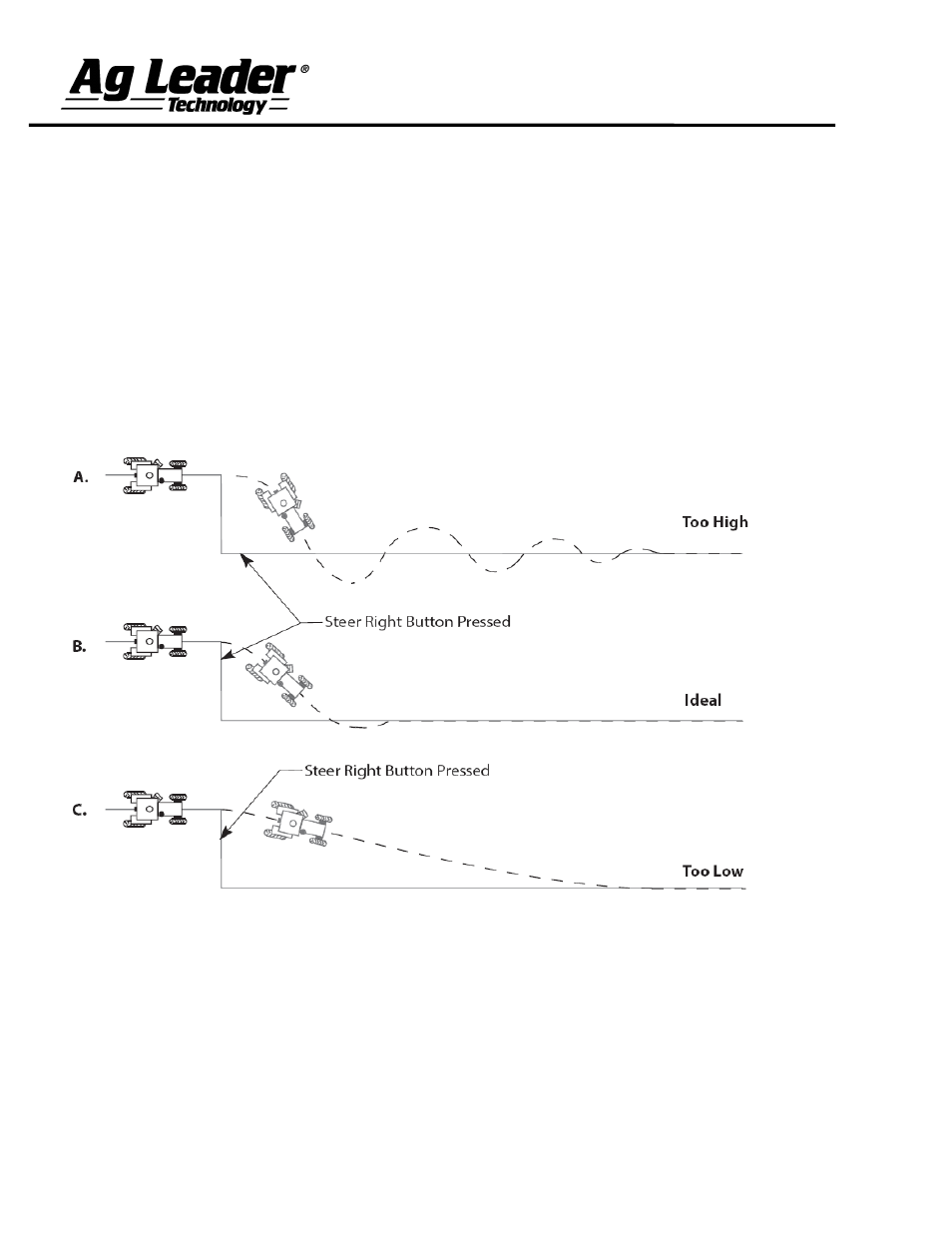

Figure 5 – Sample ParaDyme System Output Graphs
