See Figure 7 for an example of the desired vehicle behavior. The vehicle behavior and the tuning
graph information should be used to determine whether to increase or decrease a parameters value.
• Steering’s Simple Analogy: Steering Tuning is a setting that varies how responsive or reactive
Steering is at turning the steered wheels.
‐ Too High: If Steering is responsive but jittery or jumpy at turning the steered wheels, Steering
Tuning is too high and should be reduced.
‐ Ideal: If Steering is responsive and not jittery or jumpy at turning the steered wheels, Steering
Tuning is set correctly.
‐ Too Low: If Steering is lazy or not very responsive at turning the steered wheels, Steering
Tuning is too low and should be increased.

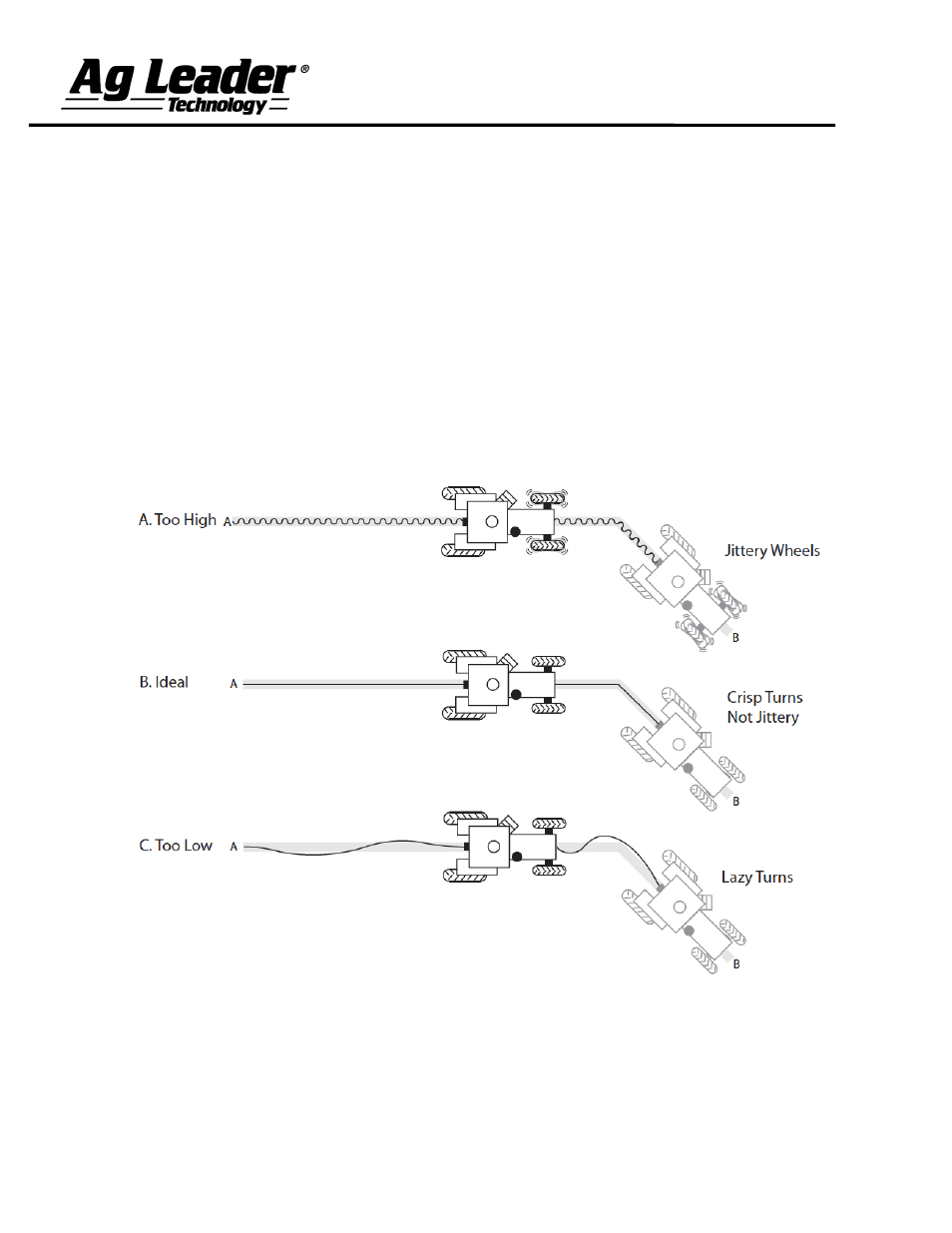

Figure 7 ­ Steering Slider Adjustment Output
