Setting up a Vehicle in the ParaDyme System
• Step1: Create a new or use an existing vehicle profile on the ParaDyme System. NOTE: Make
sure to complete the manual steering override step or it will not be set correctly for
disengaging the ParaDyme system.
• Step 2: Verify the vehicle turns right and left using the Steering Components, Steering
Command Screen. See figure 1 below.

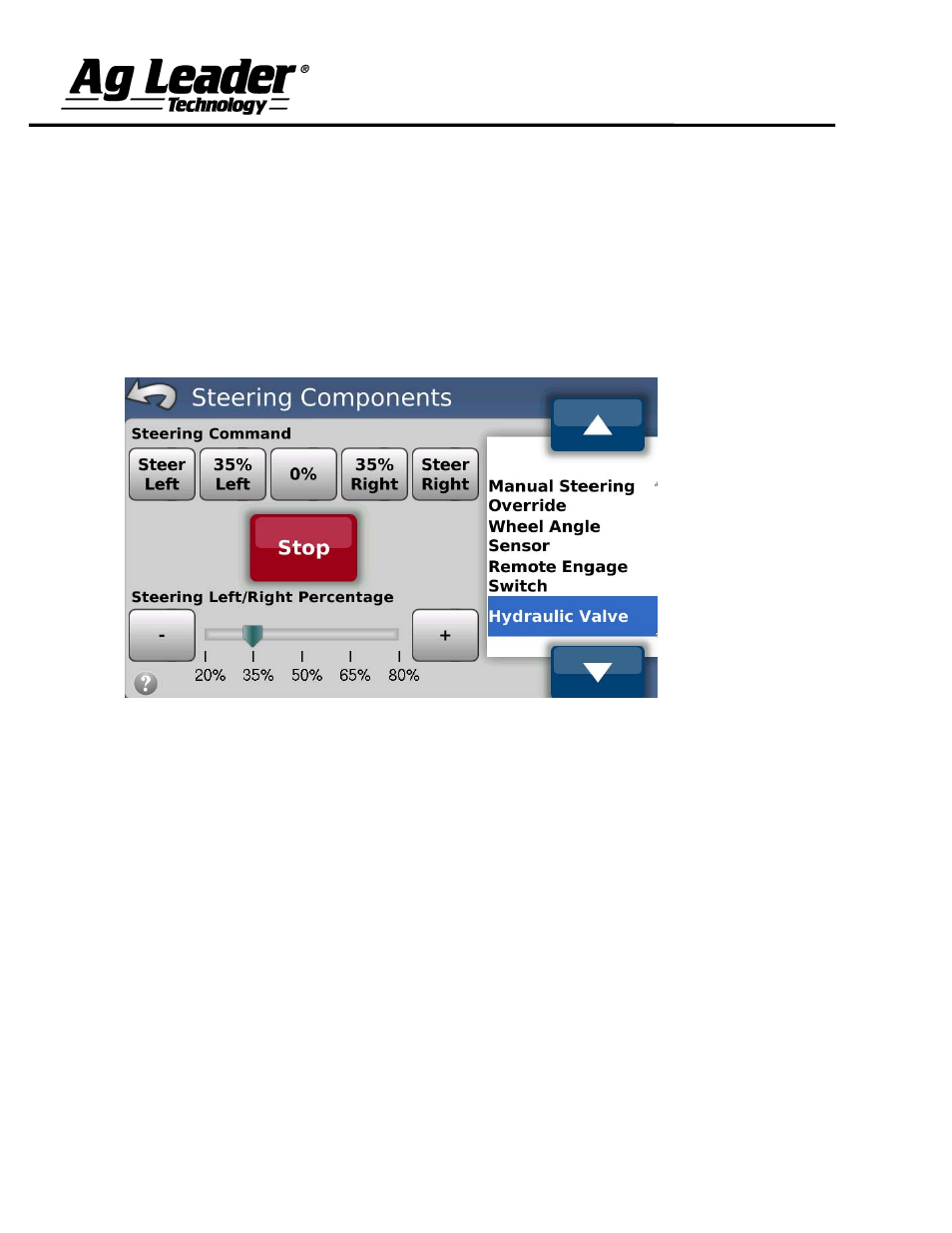

Figure 1 ­ Steer Right and Steer Left Screen
• Step 3: Warm the vehicle’s hydraulic oil and auto steering valve on the vehicle by using the
Steering Command screen to actuate the valve, see figure 1.
• Step 4: Complete an AutoCal on the vehicle using the Auto Calibration button on the Autosteer
Setup screen, see figure 2.
