Add-On GPS 3000/3050/3100 Installing Add-On GPS
Ag Leader Technology
June 2001 Rev. 1 3000124 3

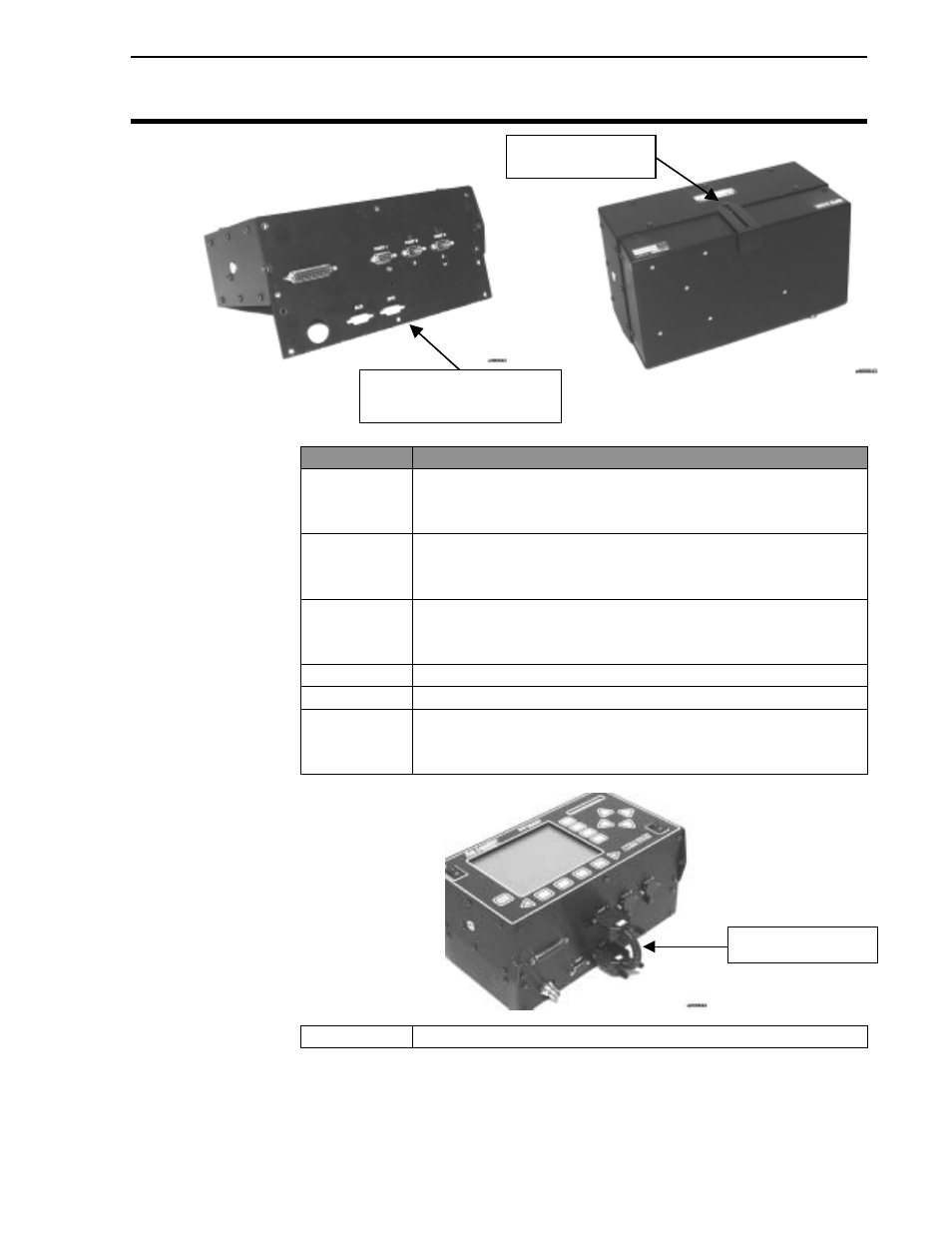

Step Action
5 Position new bottom cover plate on PF3000 (as shown) so
the 25-pin connector and Ports 1, 2 and 3 are aligned with
their slots on the cover plate.
6 Re-install eight bottom screws.
NOTE: Ensure covers for Ports 2 and 3 are re-installed
also.
7 Position Add-On GPS to bottom cover plate so the GPS
and AUX ports are aligned with GPS and AUX slots on
cover plate.
8 Install six additional bottom cover plate screws.
9 Remove and retain top center screw on PF3000.
10 Position L-bracket slot over screw hole with solid part of
bracket with Velcro strip on back of GPS. Squeeze L-
bracket, GPS and PF3000 together and re-install screw.
11 Attach connector cable to Port 1 and GPS.
Connector Cable
Top center screw
New bottom cover plate
