Installing Add-On GPS Add-On GPS 3000/3050/3100
Ag Leader Technology
June 2001 Rev. 1 3000124 2
Window Mounting
U-bracket
Installing Add-
On GPS The following parts and tools are needed to install the Add-On GPS
3000/3050/3100 in the combine cab or another vehicle:
• Add-On GPS • Phillips screw driver
• Bottom cover plate • Window scraper
• L-bracket with Velcro • Two alcohol swabs
• Connector cable • Clean, unused paper towels
• Mounting U-bracket NOTE: The type of U-bracket will
depend on your installation requirements.
Perform the following steps to install the GPS in your vehicle:
NOTE: It is recommended that installation of Add-On GPS be done in a
shop environment.
Step Action
1 Remove 25-pin connector from PF3000.
2 Remove PF3000 from mounting bracket.
3 Where the PF3000 ports are located, remove and retain
eight-bottom cover plate screw.
• Four screws in each corner, two screws in the middle and
two screws for the covers on Ports 2 and 3.
4 Remove and discard cover plate.

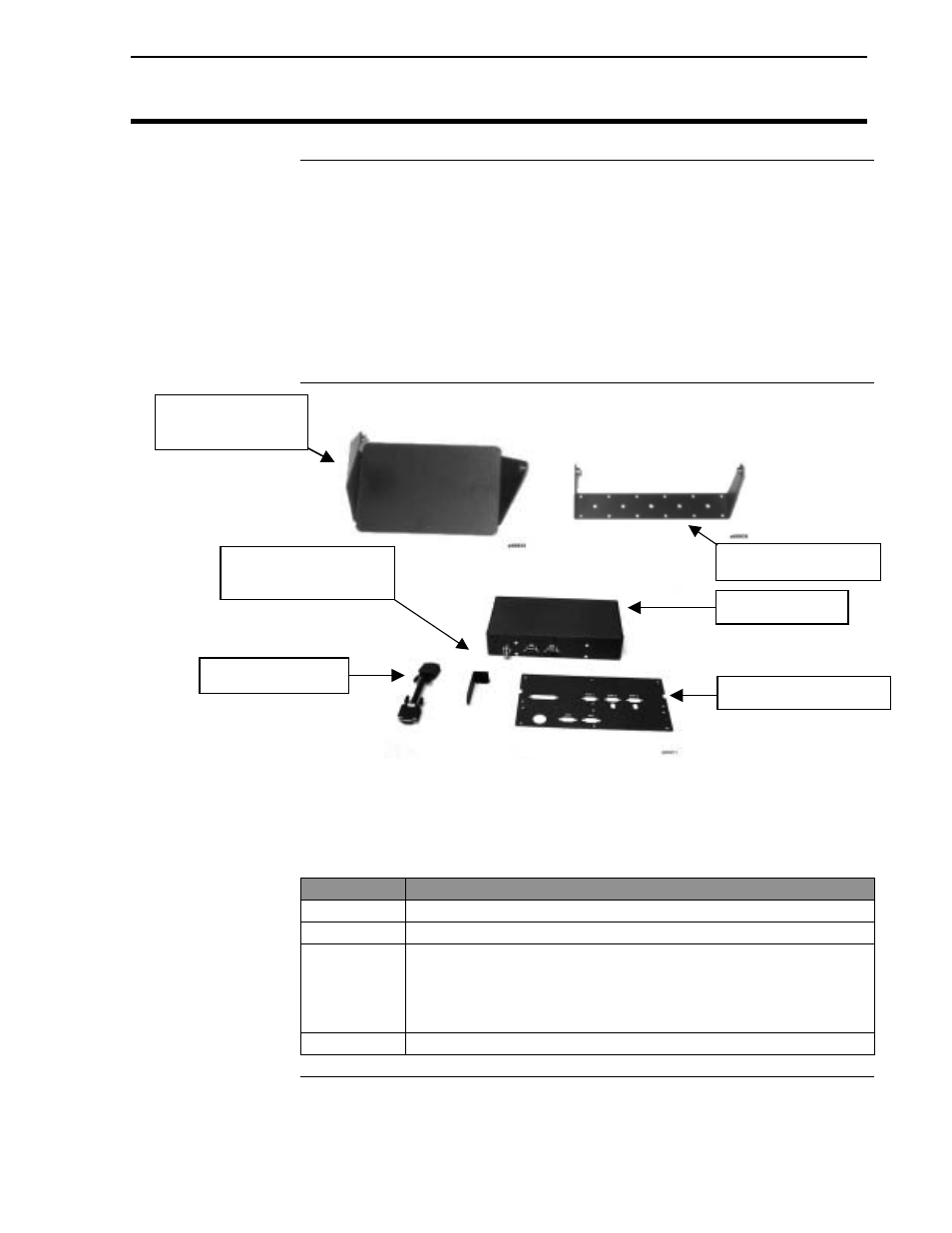

Mounting U-bracket L-bracket with Velcro
Connector Cable
Add-On GPS
Bottom Cover Plate
