82 Firmware Version 5.4
3. Steer the vehicle so that you center the green lights in the lightbar as you drive forward along the path.
Note: To work from the center of the field outwards, the initial pivot must have:
• A radius of at least two swath widths.
• An arc length of at least two swath widths.
S
MART
P
ATH

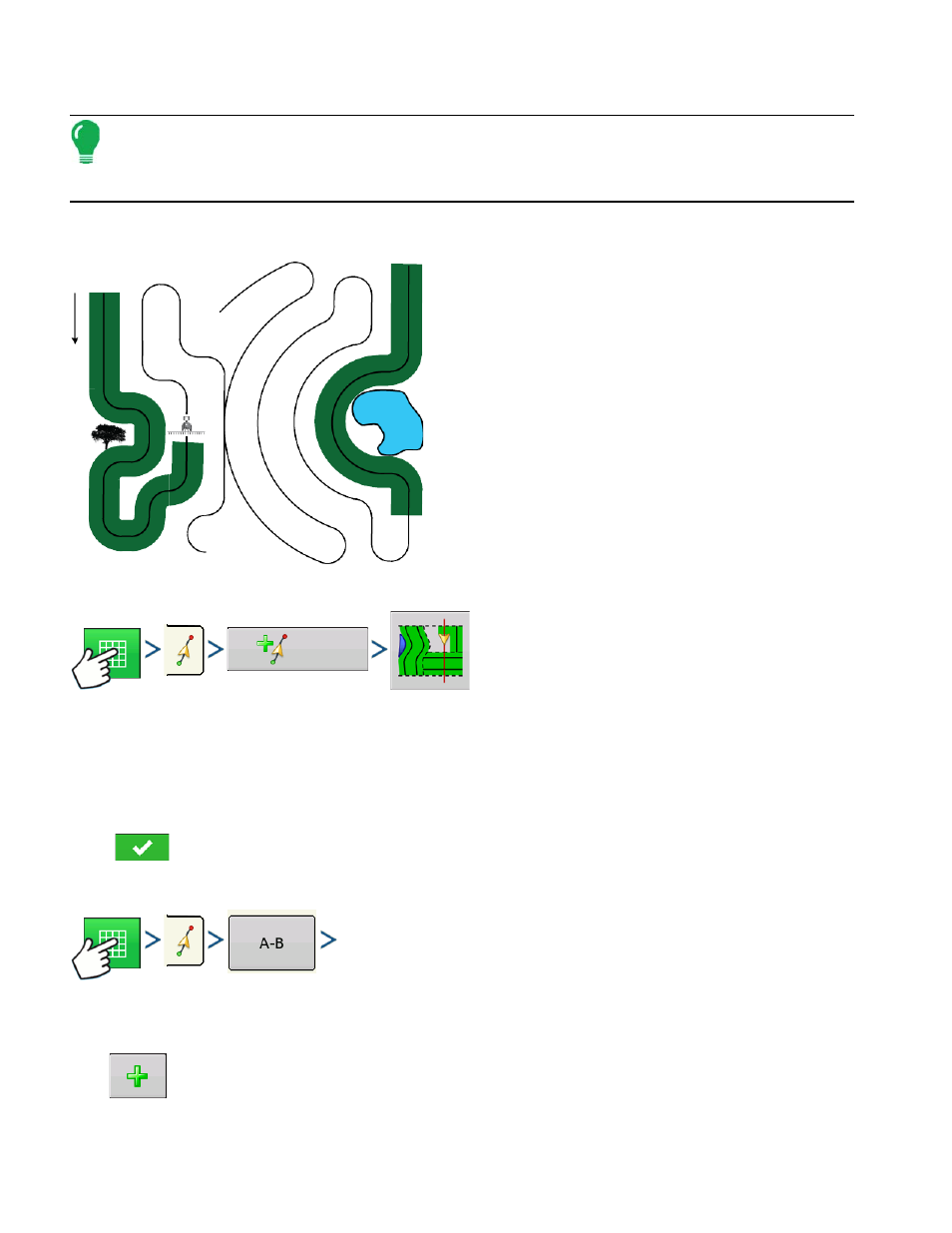

The SmartPath™ pattern is designed to give guidance
from any previously-driven pass. This is used in
irregular-shaped and terraced fields where you cannot
run all passes parallel to the previous pass. Instead, the
SmartPath guidance allows you to move to a different
area of the field, and then resume a previous guidance
pattern later. Moreover, you can use SmartPath to
create straight AB patterns within the SmartPath
pattern and cycle between any available pattern within
SmartPath to choose the appropriate one.
Select SmartPath
Press: Map button > Guidance tab (in Mapping Toolbox) > New Pattern button > SmartPath Pattern
Selection
System defaults pattern type to last used. Press the pattern icon to select a different pattern.
- Implement Width (from Implement Setup)
- Guidance Width input box
Press . You will automatically return to the Map screen.
Inputting Paths into SmartPath
AB Manager
Press: Map button > Guidance tab (in Mapping Toolbox) > A-B button > AB Manager
The AB Manager screen allow user to create, edit, remove, and load paths into SmartPath.
• Press to create an AB line.
New
Pattern
